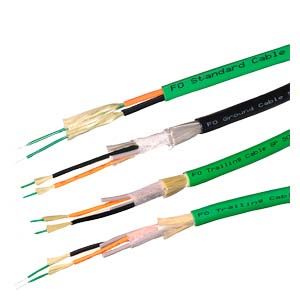

Стеклянный волоконно-оптический кабель

Заказные данные
(129)
Аксессуары
(5)

Информационные материалы

Для применения в оптических сетях Industrial Ethernet и PROFIBUS.

Для внутренней и наружной прокладки в промышленных условиях.

Кабели без содержания галогена для прокладки в зданиях.

Трейлинговый кабель для применений в условиях повышенных механических воздействий.

Высокая устойчивость к воздействию внешних электромагнитных полей.

Возможность поставки заранее разделанных кабелей.

Область применения

SIENOPYR судовой дуплексный оптоволоконный кабель

Оптоволоконный кабель для судовых применений, свободный от галогена, не выделяющий вредных газов при горении. Для прокладки в судовых помещениях и на палубе. Поставляется по метражу.

Стандартный оптоволоконный кабель

Оптоволоконный кабель для наружной прокладки в земле и внутренней прокладки в зданиях. Кабель может поставляться разделанным отрезками стандартной длины с 4 установленными BFOC соединителями.

Трейлинговый оптоволоконный кабель

Кабель для использования в условиях повышенных механических воздействий. Например, для подключения аппаратуры, расположенной на движущихся частях промышленного оборудования. Для наружной и внутренней прокладки. Может поставляться разделанным отрезками стандартной длины с 4 установленными BFOC соединителями.

Оптоволоконный кабель для внутренней прокладки

Свободный от галогена огнестойкий оптоволоконный кабель для прокладки в зданиях. Может поставляться разделанным отрезками стандартной длины с 4 установленными BFOC соединителями.

Примеры использования

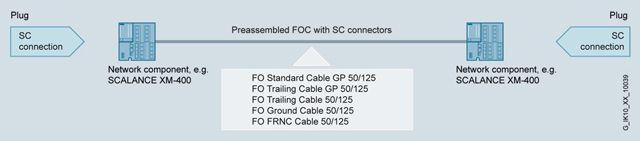

Использование предсобранного оптического кабеля с SC разъемами (1000 Мбит/сек)

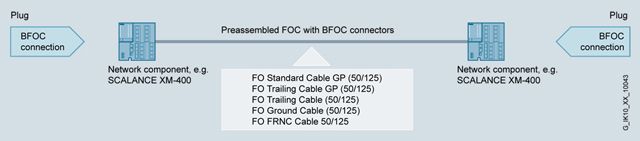

Использование предсобранного оптического кабеля с BFOC разъемами (100 Мбит/сек)

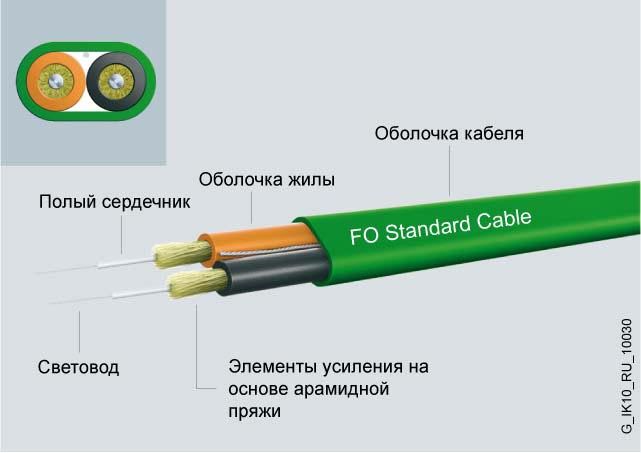

Дизайн

Следующие типы кабелей доступны в двух вариантах: 50/125 µm и 62.5/125 µm:

100Base FX;
62.5/125 µm волокно, 3,000 м
100Base FX;
50/125 µm волокно, 3,000 м
1000Base SX;
50/125 µm волокно, 750 м
1000Base LX;
50/125 µm волокно, 2,000 м

При применении необходимо учитывать максимальную длину кабеля.

Типы кабеля	50/125 µm	62.5/125 µm
Стандартный кабель FO		-
FO Кабель для подвижных механизмов		-
FO Кабель для подвижных механизмов GP		-
FO Кабель для подземной прокладки		-
Fiber Optic Стандартный кабель	-
INDOOR Fiber Optic кабель для помещений	-
Гибкий Fiber Optic кабель для подвижных механизмов	-
SIENOPYR морской двойной волоконно-оптический кабель	-

Особенности

Простота монтажа

Использование заранее разделанных кабелей

Отсутствие проблем с заземлением

Малая масса кабеля

Повышенный уровень безопасности в силу отсутствия радиации.

Технические данные

Order number	6XV1873-2A	6XV1873-2B	6XV1873-2G
Product type designation	FO Standard Cable GP	FO FRNC Cable GP	FO Ground Cable
Suitability for use	Cable for installation indoors and outdoors, UL approval	Halogen-free cable (acc. to IEC 61034-1 / 61034-2 and IEC 60754-1 / IEC 60754-2) for use indoors and outdoors with permanent installation, UL approval	Waterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use outdoors as well as for direct routing underground
Version of the assembled FO cable	For assembly with four BFOC or SC connectors	For assembly with four BFOC or SC connectors	For assembly with four BFOC or SC connectors
Cable designation	AT-W(ZN)YY 2x1 G 50/125	AT-W(ZN)HH 2G 50/125 UV	AT-WQ(ZN)Y(ZN)B2Y 2G 50/125
Optical data
Damping ratio per length
● at 850 nm maximum	2.7 dB/km	2.7 dB/km	2.7 dB/km
● at 1300 nm maximum	0.7 dB/km	0.7 dB/km	0.7 dB/km
Bandwidth length product
● at 850 nm	600 GHz·m	600 GHz·m	600 GHz·m
● at 1300 nm	1 200 GHz·m	1 200 GHz·m	1 200 GHz·m
Mechanical data
Number of fibers per FOC core	1	1	1
Number of FO cores per FOC cable	2	2	2
Version of the FO conductor fiber	Multi-mode gradient fiber 50/125 µm, OM 2	Multi-mode gradient fiber 50/125 µm, OM 2	Multi-mode gradient fiber 50/125 µm, OM 2
Design of the FOC core	Hollow core, filled, diameter 1400 µm	Hollow core, filled, diameter 1400 µm	Hollow core, filled, diameter 1400 µm
Design of the fiber-optic cable	segmentable	segmentable	segmentable
Outer diameter
● of the optical fibers	50 µm	50 µm	50 µm
● of the optical fiber sheath	125 µm	125 µm	125 µm
● of the FOC core sheath	2.9 mm	2.9 mm	2.9 mm
Symmetrical deviation of the outer diameter of the FOC core sheath	0.1 mm	0.1 mm	0.1 mm
Outer diameter of the cable		9.2 mm	10.5 mm
Symmetrical deviation of the outer diameter of the line		0.3 mm	0.5 mm
Width of cable sheath	7.4 mm
Thickness of cable sheath	4.5 mm
Material
● of the fiber-optic cable core	Quartz glass	Quartz glass	Quartz glass
● of the optical fiber sheath	Quartz glass	Quartz glass	Quartz glass
● of the FOC core sheath	PVC	FRNC	PVC
● of the fiber-optic cable sheath	PVC	FRNC	PE
● of the strain relief	Aramid fibers	Aramid fibers	Aramid fibers
Color
● of the FOC core sheath	orange/black	orange/black	orange/black
● of cable sheath	green	green	Black
Bending radius
● with single bend minimum permissible	45 mm	90 mm	105 mm
● with multiple bends minimum permissible	65 mm	135 mm	155 mm
Tensile load
● during installation short-term	1 200 N	1 200 N	2 000 N
● during operation maximum	500 N	500 N	800 N
Short-term shear force per length	600 N/cm	500 N/cm	500 N/cm
Continuous lateral force per length	400 N/cm		300 N/cm
Weight per length	40 kg/km	85 kg/km	90 kg/km
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +80 °C	-40 ... +85 °C	-40 ... +85 °C
● during storage	-25 ... +80 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-25 ... +80 °C	-40 ... +85 °C	-40 ... +85 °C
● during installation	-5 ... +50 °C	-5 ... +50 °C	-5 ... +50 °C
Burning behavior	flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)	flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)	flammable
Chemical resistance
● to mineral oil		acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +70 °C, 4 h and +25 °C, 168 h	resistant
● to grease	conditional resistance	conditional resistance	resistant
● to water	conditional resistance	conditional resistance	resistant
Radiological resistance to UV radiation	resistant	resistant	resistant
Product properties, functions, components general
Product feature
● halogen-free	No	Yes	No
● silicon-free	Yes	Yes	Yes
Product component Rodent protection	No	No	Yes
Wire length
● for glass FOC for 100BaseFX for Industrial Ethernet maximum	5 000 m	5 000 m	5 000 m
● for glass FOC for 1000BaseSX for Industrial Ethernet maximum	750 m	750 m	750 m
● for glass FOC for 1000BaseLX for Industrial Ethernet maximum	2 000 m	2 000 m	2 000 m
● for glass FOC with PROFIBUS maximum	3 000 m	3 000 m	3 000 m
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes

Order number	6XV1873-2C	6XV1873-2D
Product type designation	FO Trailing Cable	FO Trailing Cable GP
Suitability for use	Flexible cable for use in cable carriers for high mechanical loading, no UL approval	Flexible cable for use in cable carriers for high mechanical loading, UL approval
Version of the assembled FO cable	For assembly with four BFOC or SC connectors	For assembly with four BFOC or SC connectors
Cable designation	AT-W(ZN)Y(ZN)11Y 2G 50/125	AT-W(ZN)Y(ZN)Y 2G 50/125
Optical data
Damping ratio per length
● at 850 nm maximum	2.7 dB/km	2.7 dB/km
● at 1300 nm maximum	0.7 dB/km	0.7 dB/km
Bandwidth length product
● at 850 nm	600 GHz·m	600 GHz·m
● at 1300 nm	1 200 GHz·m	1 200 GHz·m
Mechanical data
Number of fibers per FOC core	1	1
Number of FO cores per FOC cable	2	2
Version of the FO conductor fiber	Multi-mode gradient fiber 50/125 µm, OM 2	Multi-mode gradient fiber 50/125 µm, OM 2
Design of the FOC core	Hollow core, filled, diameter 1400 µm	Hollow core, filled, diameter 1400 µm
Design of the fiber-optic cable	segmentable	segmentable
Outer diameter
● of the optical fibers	50 µm	50 µm
● of the optical fiber sheath	125 µm	125 µm
● of the FOC core sheath	2.9 mm	2.9 mm
Symmetrical deviation of the outer diameter of the FOC core sheath	0.1 mm	0.1 mm
Outer diameter of the cable	10.5 mm	10.5 mm
Symmetrical deviation of the outer diameter of the line	0.5 mm	0.5 mm
Material
● of the fiber-optic cable core	Quartz glass	Quartz glass
● of the optical fiber sheath	Quartz glass	Quartz glass
● of the FOC core sheath	PVC	PVC
● of the fiber-optic cable sheath	PUR	PVC
● of the strain relief	Aramid fibers	Aramid fibers
Color
● of the FOC core sheath	orange/black	orange/black
● of cable sheath	green	green
Bending radius
● with single bend minimum permissible	150 mm	150 mm
● with multiple bends minimum permissible	200 mm	200 mm
Number of bending cycles	5 000 000	3 500 000
Tensile load
● during installation short-term	2 000 N	2 000 N
● during operation maximum	800 N	800 N
Short-term shear force per length	700 N/cm	700 N/cm
Continuous lateral force per length	400 N/cm	400 N/cm
Weight per length	90 kg/km	90 kg/km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +80 °C	-25 ... +80 °C
● during storage	-40 ... +80 °C	-25 ... +80 °C
● during transport	-40 ... +80 °C	-25 ... +80 °C
● during installation	-5 ... +50 °C	-5 ... +50 °C
Burning behavior	flammable	flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)
Chemical resistance
● to mineral oil	acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +100 °C, 168 h, pull speed 250 mm/min.
● to grease	resistant	conditional resistance
● to water	conditional resistance	conditional resistance
Radiological resistance to UV radiation	resistant	resistant
Product properties, functions, components general
Product feature
● halogen-free	No	No
● silicon-free	Yes	Yes
Product component Rodent protection	No	No
Wire length
● for glass FOC for 100BaseFX for Industrial Ethernet maximum	5 000 m	5 000 m
● for glass FOC for 1000BaseSX for Industrial Ethernet maximum	750 m	750 m
● for glass FOC for 1000BaseLX for Industrial Ethernet maximum	2 000 m	2 000 m
● for glass FOC with PROFIBUS maximum	3 000 m	3 000 m
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes

Order number	6XV1820-5AH10	6XV1820-7AH10
Product type designation	Fiber optic standard cable	INDOOR fiber optic indoor cable
Suitability for use	Cable for installation indoors and outdoors	Non-crush, halogen-free and flame-retardant cable for indoor installation
Version of the assembled FO cable	For assembly with four BFOC connectors	For assembly with four BFOC connectors
Cable designation	AT-V(ZN)YY 2X1 G 62.5/125	I-V(ZN)HH 2x1 G 62.5/125
Optical data
Damping ratio per length
● at 850 nm maximum	3.1 dB/km	3.1 dB/km
● at 1300 nm maximum	0.8 dB/km	0.8 dB/km
Bandwidth length product
● at 850 nm	200 GHz·m	200 GHz·m
● at 1300 nm	600 GHz·m	600 GHz·m
Mechanical data
Number of fibers per FOC core	1	1
Number of FO cores per FOC cable	2	2
Version of the FO conductor fiber	Multimode graded-index fiber 62.5/125 µm, OM 1	Multimode graded-index fiber 62.5/125 µm, OM 1
Design of the FOC core	Compact core, diameter 900 µm	Solid core, diameter 900 µm
Design of the fiber-optic cable	Segmentable outer conductor	Segmentable inner conductor
Outer diameter
● of the optical fibers	62.5 µm	62.5 µm
● of the optical fiber sheath	125 µm	125 µm
● of the FOC core sheath	3.5 mm	2.9 mm
Symmetrical deviation of the outer diameter of the FOC core sheath		0.1 mm
Width of cable sheath	9.8 mm	6.8 mm
Thickness of cable sheath	6.3 mm	3.9 mm
Material
● of the fiber-optic cable core	Quartz glass	Quartz glass
● of the optical fiber sheath	Quartz glass	Quartz glass
● of the FOC core sheath	PVC	FRNC
● of the fiber-optic cable sheath	PVC	FRNC
● of the strain relief	Aramid fibers and glass roving	Aramid fibers
Color
● of the FOC core sheath	gray	gray
● of cable sheath	Black	orange
Bending radius
● with single bend minimum permissible	80 mm	30 mm
● with multiple bends minimum permissible	80 mm	50 mm
Tensile load
● during installation short-term	1 500 N	800 N
● during operation maximum	1 500 N	200 N
Short-term shear force per length		300 N/cm
Continuous lateral force per length	200 N/cm	100 N/cm
Weight per length	70 kg/km	30 kg/km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-20 ... +60 °C
● during storage	-40 ... +85 °C	-25 ... +70 °C
● during transport	-40 ... +85 °C	-25 ... +70 °C
● during installation	-5 ... +50 °C	-5 ... +50 °C
Burning behavior	flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)	flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)
Chemical resistance
● to mineral oil	not resistant	acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +70 °C, 4 h and +25 °C, 168 h
● to grease	not resistant	not resistant
● to water	conditional resistance	conditional resistance
Radiological resistance to UV radiation	resistant	not resistant
Product properties, functions, components general
Product feature
● halogen-free	No	Yes
● silicon-free	Yes	Yes
Product component Rodent protection	No	No
Wire length
● for glass FOC for 100BaseFX for Industrial Ethernet maximum	4 000 m	4 000 m
● for glass FOC for 1000BaseSX for Industrial Ethernet maximum	350 m	350 m
● for glass FOC for 1000BaseLX for Industrial Ethernet maximum	550 m	550 m
● for glass FOC with PROFIBUS maximum	3 000 m	3 000 m
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes

Order number	6XV1820-6AH10	6XV1830-0NH10
Product type designation	Flexible fiber optic trailing cable	SIENOPYR marine duplex fiber-optic cable
Suitability for use	Flexible cable for installation in cable carriers indoors and outdoors	Fixed routing on ships and on offshore platforms in all enclosed spaces and on open deck, marine approval available
Version of the assembled FO cable	For assembly with four BFOC connectors	For assembly with four multimode FO connectors (e.g. BFOC, SC, ...)
Cable designation	AT-W11Y(ZN)11Y 2 G 62.5/125	MI-VHH 2G 62.5/125 3.1B200 + 0.8F600 + 2x1Cu 300V
Optical data
Damping ratio per length
● at 650 nm maximum		160 dB/km
● at 850 nm maximum	3.1 dB/km	3.1 dB/km
● at 1300 nm maximum	0.8 dB/km	0.8 dB/km
Bandwidth length product
● at 850 nm	200 GHz·m	200 GHz·m
● at 1300 nm	600 GHz·m	600 GHz·m
Mechanical data
Number of fibers per FOC core	1	1
Number of FO cores per FOC cable	2	2
Version of the FO conductor fiber	Multimode graded-index fiber 62.5/125 µm, OM 1	Multi-mode gradient fiber 62.5/125 µm, OM 2
Design of the FOC core	Hollow core, filled, diameter 1400 µm	Solid core
Design of the fiber-optic cable	Segmentable outer conductor	Segmentable outer conductor
Outer diameter
● of the optical fibers	62.5 µm	62.5 µm
● of the optical fiber sheath	125 µm	125 µm
● of the FOC core sheath	3.5 mm	2.9 mm
Outer diameter of the cable	12.9 mm	13.3 mm
Symmetrical deviation of the outer diameter of the line		0.5 mm
Material
● of the fiber-optic cable core	Quartz glass	Mineral glass
● of the optical fiber sheath	Quartz glass
● of the FOC core sheath	PUR	Polyolefine
● of the fiber-optic cable sheath	PUR	SHF1 mixture
● of the strain relief	Aramid fibers, also GRP central element	Aramid fibers
Color
● of the FOC core sheath	black
● of cable sheath	Black	Black
Bending radius
● with single bend minimum permissible	150 mm	133 mm
● with multiple bends minimum permissible	150 mm	266 mm
Number of bending cycles	100 000
Tensile load
● during installation short-term	2 000 N
● during operation maximum	1 000 N	250 N
Weight per length	130 kg/km	220 kg/km
Permitted ambient conditions
Ambient temperature
● during operation	-30 ... +60 °C	-40 ... +80 °C
● during storage	-30 ... +70 °C	-40 ... +80 °C
● during transport	-30 ... +70 °C	-40 ... +80 °C
● during installation	-30 ... +60 °C	-10 ... +50 °C
Ambient condition for operation		At ambient temperatures below -10 degrees Celsius, the cable must not be subjected to any movements other than the normal vibration levels encountered on board ship
Burning behavior	flammable	Flame-resistant acc. to IEC 60332-3 (Cat. A)
Chemical resistance
● to mineral oil	acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +100 °C, 168 h, pull speed 250 mm/min
● to grease	resistant
● to water	conditional resistance	conditional resistance
Radiological resistance to UV radiation	resistant	resistant
Product properties, functions, components general
Product feature
● halogen-free	Yes	Yes
● silicon-free	Yes	Yes
Product component Rodent protection	No	No
Wire length
● for glass FOC for 100BaseFX for Industrial Ethernet maximum	4 000 m	4 000 m
● for glass FOC for 1000BaseSX for Industrial Ethernet maximum	350 m	350 m
● for glass FOC for 1000BaseLX for Industrial Ethernet maximum	550 m	550 m
● for glass FOC with PROFIBUS maximum	3 000 m	3 000 m
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes
Marine classification association
● Bureau Veritas (BV)		Yes
● Det Norske Veritas (DNV)		Yes
● Germanische Lloyd (GL)		Yes
● Lloyds Register of Shipping (LRS)		Yes

Order number	6XV1873-2R	6XV1843-2R
Product type designation	MM FO Robust Cable GP	SM FO robust cable GP
Suitability for use	Waterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use indoors and outdoors as well as for direct routing underground	Waterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use indoors and outdoors as well as for direct routing underground
Version of the assembled FO cable	For assembly with two BFOC, SC and LC duplex connectors	For assembly with two BFOC, SC and LC duplex connectors
Cable designation	AT-V(ZN)H(ZN)BH 2G50/125	AT-V(ZN)H(ZN)BH 4E9/125
Optical data
Damping ratio per length
● at 850 nm maximum	2.7 dB/km
● at 1300 nm maximum	1 dB/km	0.5 dB/km
● at 1550 nm maximum		0.5 dB/km
Bandwidth length product
● at 850 nm	600 GHz·m
● at 1300 nm	1 200 GHz·m
Mechanical data
Number of fibers per FOC core	1	1
Number of FO cores per FOC cable	2	4
Version of the FO conductor fiber	Multi-mode gradient fiber 50/125/245 µm, OM2	Single mode fiber 4E9/125/900, OS1 and OS2
Design of the FOC core	Solid core, diameter 900 µm	Solid core, diameter 900 µm
Design of the fiber-optic cable	segmentable	segmentable
Outer diameter
● of the optical fibers	50 µm	9 µm
● of the optical fiber sheath	125 µm	125 µm
● of the FOC core sheath	2.2 mm	2.2 mm
Outer diameter of the cable	7.5 mm	9 mm
Material
● of the fiber-optic cable core	Quartz glass	Quartz glass
● of the optical fiber sheath	Quartz glass	Quartz glass
● of the FOC core sheath	PE flame retardant	PE flame retardant
● of the fiber-optic cable sheath	PE flame retardant	PE flame retardant
● of the strain relief	Aramid fibers and glass roving	Aramid fibers, also central support element and glass roving
Color
● of the FOC core sheath	orange/black, with direction arrow	orange/black, with direction arrow (core pairs numbered with 1 and 2)
● of cable sheath	Black	Black
Bending radius
● with single bend minimum permissible	25 mm	90 mm
● with multiple bends minimum permissible	40 mm	135 mm
Tensile load
● during installation short-term	2 000 N	2 000 N
● during operation maximum	1 000 N	1 000 N
Short-term shear force per length	600 N/cm	600 N/cm
Continuous lateral force per length	200 N/cm	200 N/cm
Weight per length	67 kg/km	87 kg/km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C
● during installation	-20 ... +60 °C	-20 ... +60 °C
Burning behavior	flame-resistant acc. to IEC 60332-3-24	flame-resistant acc. to IEC 60332-3-24
Chemical resistance
● to mineral oil	conditional resistance	conditional resistance
● to grease	conditional resistance	conditional resistance
● to water	resistant	resistant
Radiological resistance to UV radiation	resistant	resistant
Product properties, functions, components general
Product feature
● halogen-free	Yes	Yes
● silicon-free	Yes	Yes
Product component Rodent protection	Yes	Yes
Wire length
● for glass FOC for 100BaseFX for Industrial Ethernet maximum	5 000 m	26 000 m
● for glass FOC for 1000BaseSX for Industrial Ethernet maximum	750 m
● for glass FOC for 1000BaseLX for Industrial Ethernet maximum	2 000 m	5 000 m
● for glass FOC for 10GBaseLR for Industrial Ethernet maximum		10 000 m
● for glass FOC with 10GBaseER for Industrial Ethernet maximum		40 000 m
● for glass FOC with 10GBaseSR for Industrial Ethernet maximum	60 m
● for glass FOC with PROFIBUS maximum	3 000 m	15 000 m
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes

Order number		6GK1901-0DA20-0AA0
Product type designation		BFOC Connector Set
Product description		20 ST/BFOC plug
Suitability for use		For connection of glass fiber-optic cables (50/125 - 62,5/125)
Transmission rate
Transfer rate for Industrial Ethernet		10 Mbit/s, 100 Mbit/s
Transfer rate with PROFIBUS		9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of optical interfaces for fiber optic cable		1
Design of the optical interface for network components or terminal equipment		BFOC connector
Type of electrical connection FastConnect		No
Mechanical data
Material of the enclosure		Metal and plastic
Locking mechanism design		Bayonet
Design, dimensions and weight
Type of cable outlet		180° cable outlet
Width		9.5 mm
Height		9.5 mm
Depth		29.7 mm
Net weight		8 g
Permitted ambient conditions
Ambient temperature
● during operation		-40 ... +85 °C
● during storage		-40 ... +90 °C
● during transport		-40 ... +90 °C
Protection class IP		IP20
Product properties, functions, components general
Product feature
● silicon-free		Yes
Product component
● strain relief		Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity		Yes
● UL approval		No
● Railway application in accordance with EN 50155		No

Дальнейшая информация

Замечание:

Дополнительные компоненты SIMATIC NET Вы можете заказать у вашего регионального представителя.
