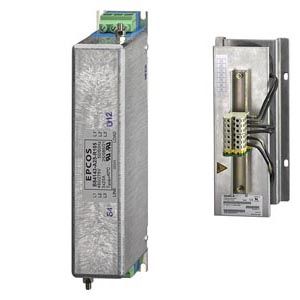

Recommended line-side components for Smart Line Modules

• Заказные данные
  (22)
• Информационные материалы

  Информационные материалы

  Suitable line-side power components are assigned depending on the power rating of the Smart Line Module.

  The tables below list recommended components.

  Additional information about the line-side power components can be found in Catalogs LV 10, IC 10 and IC 10 AO as well as the Industry Mall.

  Assignment of line-side power components to Smart Line Modules in booksize or booksize compact format

  Rated power	Suitable for Smart Line Module in booksize or booksize compact format	Line contactor	Circuit breaker IEC 60947	Circuit breaker UL489/CSA C22.2 No. 5-02	Main switch
  kW (hp)	Type	Type	Article No.	Article No.	Article No.
  Line voltage 380 ... 480 V 3 AC
  5 (5)	6SL3130-6AE15-0AB1	3RT1023	3RV2021-4BA10	3VL1102-2KM30-.... *)	3LD2003-0TK51
  10 (10)	6SL3130-6AE21-0AB1	3RT1026	3RV1031-4FA10	3VL1135-2KM30-.... *)	3LD2203-0TK51
  16 (18)	6SL3130-6TE21-6AA4 6SL3430-6TE21-6AA1	3RT1035	3RV1031-4FA10	3VL1135-2KM30-.... *)	3LD2504-0TK51
  36 (40)	6SL3130-6TE23-6AA3	3RT1045	3RV1041-4LA10	3VL2508-2KN30-.... *)	3LD2704-0TK51
  55 (60)	6SL3130-6TE25-5AA3	3RT1054	3VL2712-1DC33-.... *)	3VL2512-2KN30-.... *)	3KA5330-1GE01





  Rated power	Suitable for Smart Line Module in booksize or booksize compact format	Fuse switch disconnector	Switch disconnector with fuse holders	LV HRC fuse (gL/gG)			UL/CSA fuse, Class J Available from: Mersen http://www.ep.mersen.com
  kW (hp)	Type	Article No.	Article No.	Rated current	Size	Article No.	Rated current	Size mm (in)	Reference No.
  Line voltage 380 ... 480 V 3 AC
  5 (5)	6SL3130-6AE15-0AB1	3NP1123-1CA20	3KL5030-1GB01	16 A	000	3NA3805	17.5 A	21 × 57 (0.83 × 2.24)	AJT17-1/2
  10 (10)	6SL3130-6AE21-0AB1	3NP1123-1CA20	3KL5030-1GB01	35 A	000	3NA3814	35 A	27 × 60 (1.06 × 2.36)	AJT35
  16 (18)	6SL3130-6TE21-6AA4 6SL3430-6TE21-6AA1	3NP1123-1CA20	3KL5030-1GB01	35 A	000	3NA3814	35 A	27 × 60 (1.06 × 2.36)	AJT35
  36 (40)	6SL3130-6TE23-6AA3	3NP1123-1CA20	3KL5230-1GB01	80 A	000	3NA3824	80 A	29 × 117 (1.14 × 4.61)	AJT80
  55 (60)	6SL3130-6TE25-5AA3	3NP1143-1DA20	3KL5530-1GB01	125 A	000	3NA3132	125 A	41 × 146 (1.61 × 5.75)	AJT125





  ^*) See Catalog LV 10 for Article No. supplements.
