  Controlled motion sequences – faster, easier and more economical

  The interaction of production machines and handling units is becoming more and more important.

  In the past, where dedicated handling robots were used, line-integrated handling modules are now increasingly being used in primary and secondary processes to guarantee productivity with ever shorter product switching times.

  Whether you are dealing with highly dynamic applications such as pick-and-place applications in secondary packaging processes or contour-precise application of polymeric reactive materials: Our solutions are tailored to the specific requirements.

  One integrated automation solution

  Our SIMOTION-based solutions are an integral part of the entire machine automation system.

  The advantage is clear: Both handling and the machine itself can be implemented with just one system. Synchronization with proprietary control architectures is no longer necessary. Realtime synchronization and integrated data management are thus possible without any problems. Familiarization periods for special robot programming languages are not required.

  With the SIMOTION Handling Toolbox, Siemens provides a standardized and modular software library for handling modules, which can be used on all SIMOTION platforms and allows scalable, machine-integrated solutions that are tailored to customer solutions.

  Дизайн

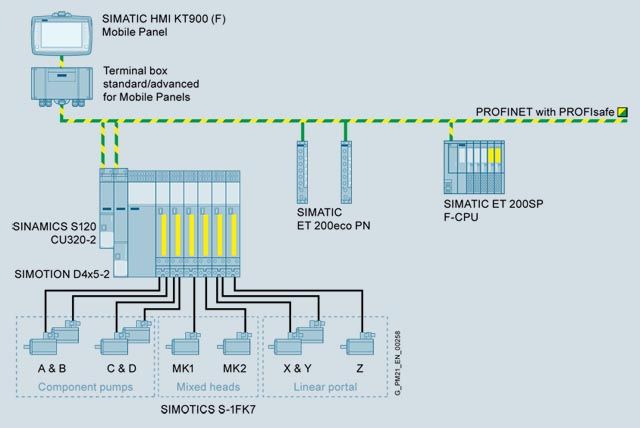

  Example of a mixing/dosing plant for sealing foams and handling with linear portal

  Особенности

  • Efficient engineering thanks to standardized software
  • All commonly used kinematics (such as Delta picker 3D, SCARA) are integrated in the system
  • Integration of customized kinematics via transformation equations
  • Highly dynamic and fully automatic synchronization on conveyor belts due to preconfigured software blocks
  • Connection to CAD/CAM systems with G-Code Interpreter for SIMOTION
  • Maximum motion quality thanks to intelligent algorithms for the pre-control of the entire drive train in real time

  Дальнейшая информация

  For more information, see

  http://www.siemens.com/handling
