  Особенности

  Freely available application examples offer:

  • Explanation of the necessary configuring steps with Siemens engineering tools
  • Reusable standardized blocks for SIMATIC PLC
  • Functionally coordinated programs and blocks
  • Significantly shorter commissioning times

  Various application examples also explain how to use free function blocks (FFB), logic processing integrated in the drive with Drive Control Chart (DCC) and Safety Integrated.

  Application examples

  The following application examples are just a selection of some of the many applications that are available on the Internet at:

  • SINAMICS S: Controlling the speed of a SINAMICS S120 with SIMATIC S7-300/400F (STEP 7 V5) via PROFINET/PROFIBUS with Safety Integrated (via PROFIsafe) and HMI
    https://support.industry.siemens.com/cs/document/68624711
  • SINAMICS S: SINAMICS S120 web server – user-defined sample pages
    https://support.industry.siemens.com/cs/document/78388880

  You can find additional information on the Internet at:

  http://www.siemens.com/sinamics-applications

  https://support.industry.siemens.com

  Дальнейшая информация

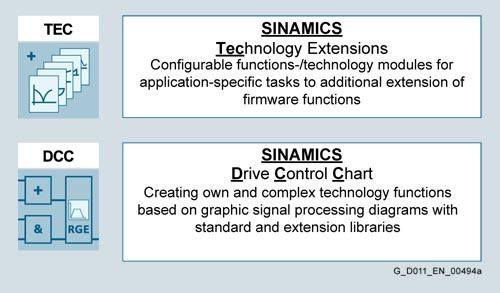

  Expandable drive technologies

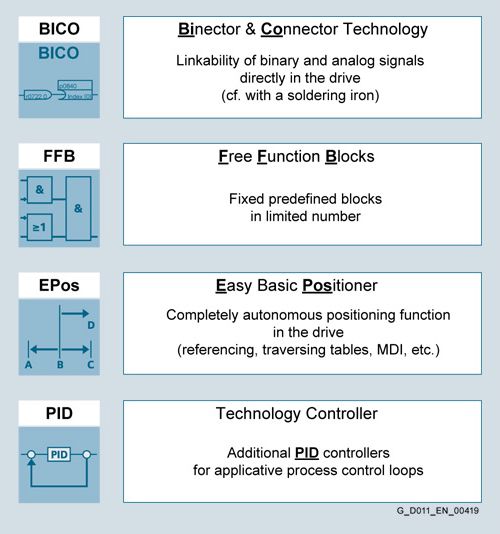

  Standard Technology Functions



  Advanced Technology Functions

  The development of standard technological applications is a dedicated area of activity within the Siemens automation and drive environment. Owing to the generally large size of the applications, they are supplied with detailed documentation and example codes.

  These applications focus on the use of product features such as SINAMICS Drive Control Chart (DCC) with its Drive Control Block (DCB) libraries of DCB Standard and DCB Extension, SINAMICS Technology Extensions (TEC) or Free Function Blocks (FFB).

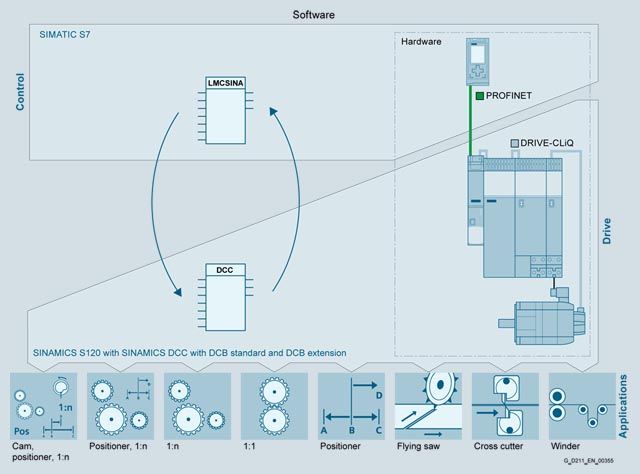

  Technological applications



  Another focal point are the technologically sophisticated application examples such as:

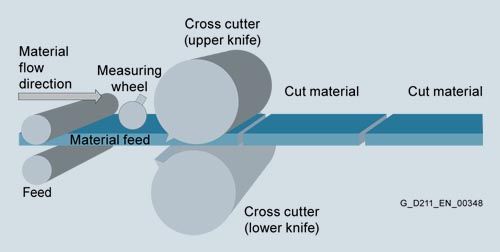

  • Cross cutter
  • Flying saw
  • Winder
  • Angular-locked synchronism in four different variants



  The technological applications make selective use of the relevant engineering concepts in order to facilitate implementation.

  Customer benefits:

  • Drive-oriented solutions of positioning and synchronous operation applications
  • Significant expansion of the DCC scope of functions
  • Drive-oriented interpretation of application technology know-how in dedicated solutions
  • Drive-oriented complex mechanical calculations

  Basis for the technological applications

  The technological applications supplied by Siemens are based on the DCB Extension libraries ¹⁾ "GMC" or "Math Extended".

  GMC: for motion control applications ¹⁾

  • For applications with an extensive range of motion control functions (positioning, synchronous operation, cam, etc.)
  • Individual functions are implemented as elementary function blocks
  • Functions that can be combined are linked to form complex elementary function blocks
  • These functions can be optionally combined to implement complex tasks

  Math Extended: for extended mathematical and logical functions ¹⁾

  • Provision of supplementary mathematical functions
  • Additional trigonometric functions such as arc sine and arc cosine
  • Additional logarithmic functions (common/natural logarithm)
  • Additional logic functions (word-serial AND / OR, etc.)

  ¹⁾ Use of the internal drive interface to integrate a DCB library requires a license. See SINAMICS Drive Control Chart (SINAMICS DCC).

  Requirement of the technological applications

  Technological applications are generally complex in terms of process engineering, mathematics and concept. They are designed to provide the user with reusable components in the form of a standard application.

  Reusable components:

  • Tested SIMATIC PLC blocks
  • Finished commissioning/configuration scripts
  • Application-specific Drive Control Charts (DCC)
  • With application-specific DCB Extension libraries
  • Reusable HMIs and faceplates

  For more information and support, please get in touch with your local Siemens contact person.
