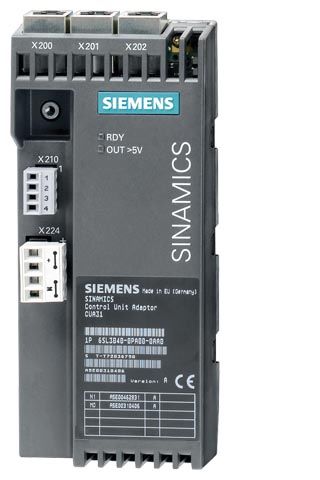

  CUA31 Control Unit Adapter

  The CUA31 Control Unit Adapter converts the PM-IF interface to a DRIVE-CLiQ interface. The CUA31 Control Unit Adapter allows Power Modules in blocksize format to operate on a Control Unit, e.g. as a single axis next to a multi-axis drive. In this case, the CUA31 Control Unit Adapter must be the last device in the DRIVE-CLiQ link from the viewpoint of the Control Unit.

  Дизайн

  The CUA31 Control Unit Adapter features the following connections and interfaces:

  • 1 temperature sensor input for KTY84‑130, Pt1000 or PTC (Pt1000 can be used from firmware V4.7 HF17)
  • 3 DRIVE-CLiQ sockets
  • 1 connection for the electronics power supply via the 24 V DC supply connector
  • 1 Safe Stop input

  The status of the CUA31 Control Unit Adapter is indicated via multi-color LEDs.

  Интеграция

  The CUA31 Control Unit Adapter is snapped onto the Power Module in blocksize format and communicates with a CU320‑2 Control Unit, a SINUMERIK NCU 7.x or a SIMOTION D Control Unit via a DRIVE‑CLiQ connection.

  The CUA31 Control Unit Adapter's power is supplied by the Power Module via the PM‑IF interface. If the CUA31 Control Unit Adapter needs to communicate when the Power Module is switched off, it must be supplied with 24 V DC from an external source.

  Other DRIVE-CLiQ devices such as Sensor Modules or Terminal Modules can be connected to the CUA31 Control Unit Adapter.



  Технические данные

  	CUA31 Control Unit Adapter 6SL3040-0PA00-0AA1
  Current requirement, max. at 24 V DC without DRIVE‑CLiQ supply	0.15 A for CUA31 + max. 0.5 A for PM240‑2 Power Module
  Conductor cross-section, max.	2.5 mm2
  Power loss, max.	2.4 W
  PE connection	M4 screw
  Dimensions
  Width	73 mm (2.87 in)
  Height	165.8 mm (6.53 in)
  Depth	37.3 mm (1.47 in)
  Weight, approx.	0.31 kg (0.68 lb)
  Certificate of suitability	cULus
