MOTION-CONNECT cables for SINAMICS V70 servo drive

• Заказные данные
  (37)
• Информационные материалы

  Конфигурация

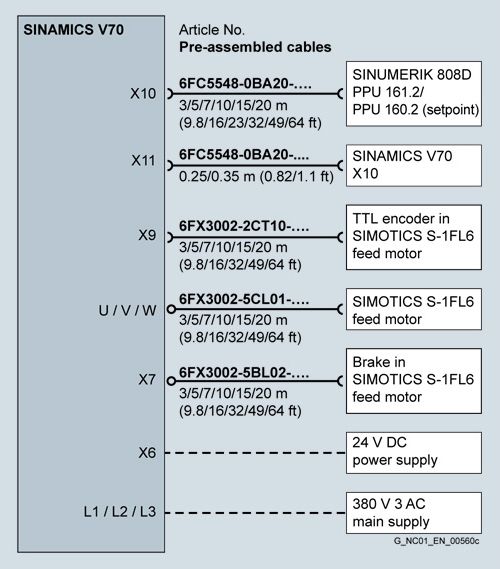

  Connection overview for SINAMICS V70 servo drive

  Representation in connection overviews

  Symbol	Explanation
  	Connector with pin contacts
  	Connector with socket contacts
  	Exposed core ends
  	Cable is not included in the scope of delivery. It must be provided by the customer.





  Технические данные

  Article No.	6FX3002-2DB10-.... 6FX3002-2CT10-….	6FX3002-5CL01-.... 6FX3002-5CL11-….	6FX3002-5BL02-....
  Product name	Signal cable SINAMICS V70 - Encoder in SIMOTICS S‑1FL6 feed motor	Power cable SINAMICS V70 -SIMOTICS S‑1FL6 feed motor	Signal cable SINAMICS V70 - brake in SIMOTICS S‑1FL6 feed motor
  No. of cores	10	4	2
  Degree of protection (when closed and connected)	IP65	IP65	IP65
  Certificate of suitability
  RoHS	Yes	Yes	Yes
  UL	Yes	Yes	Yes
  CE	No	Yes	No
  Rated voltage U0/U	30 V/30 V	600 V/1000 V	30 V/30 V
  Test voltage, rms	500 V	4 kV	500 V
  Operating temperature on the surface
  Fixed installation	-15 … +80 °C	-15 … +80 °C	-15 … +80 °C
  Tensile stress, max.
  Fixed installation	50 N/mm2	50 N/mm2	50 N/mm2
  Flexible installation	20 N/mm2	20 N/mm2	20 N/mm2
  Smallest bending radius
  Fixed installation	6 × diameter	6 × diameter	6 × diameter
  Flexible installation	155 mm	155 mm	155 mm
  Torsional stress	Absolute 30°/m	Absolute 30°/m	Absolute 30°/m
  Bending	1000000	1000000	1000000
  Insulation material, incl. jacket	PVC	PVC	PVC
  Oil resistance	EN 60811-2-1	EN 60811-2-1	EN 60811-2-1
  Outer jacket	PVC	PVC	PVC
  Flame-retardant	FT1	FT1	FT1





  For general information about MOTION-CONNECT please refer to Introduction.
