Power cables

• Информационные материалы

  Информационные материалы

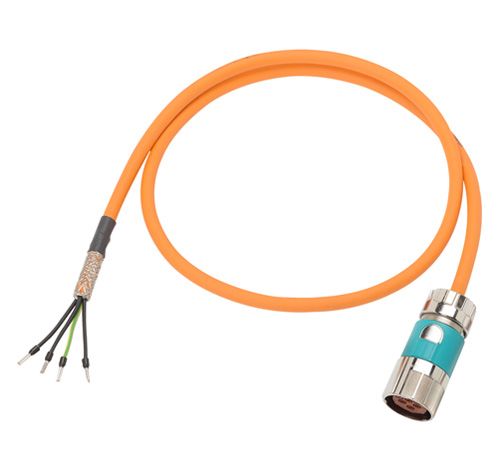

  Power cable for connecting a SIMOTICS S-1FK7 motor with SPEED-CONNECT connector to a SINAMICS S120 Combi Power Module

  The synchronous and asynchronous motors are connected to the Motor Modules or Power Modules by means of MOTION-CONNECT power cables.

  The pre-assembled MOTION-CONNECT power cables are of high quality and offer safety with problem-free functioning.

  Type of delivery of pre-assembled power cables

  Pre-assembled power cables can be ordered in units of 10 cm (3.94 in) up to a maximum length of 299.8 m (984 ft).

  The cables are supplied on reels up to 30 kg or 100 m (66.2 lb or 328 ft). Above 30 kg or 100 m (66.2 lb or 328 ft), cable drums are used instead of reels. This applies to both pre-assembled power cables and for cables sold by the meter.

  Type of delivery of power cables sold by the meter

  Cross-section	MOTION-CONNECT 500 MOTION-CONNECT 800PLUS
  Fixed lengths
  1.5 mm2 and 2.5 mm2	50 m (164 ft), 100 m (328 ft), 200 m (656 ft), 500 m (1641 ft)
  Variable length, available in exact meter lengths
  4 mm2 and 6 mm2	≤ 500 m (1641 ft)





  Характеристика

  Characteristic curves for MOTION‑CONNECT 800PLUS

  The blue area beneath the characteristic curve represents the potential range of use for the cables. The characteristic curves represent the tested operating points.



  Permissible acceleration for signal and power cables MOTION‑CONNECT 800PLUS up to 16 mm²



  Permissible acceleration for power cables MOTION‑CONNECT 800PLUS with 25 mm², 35 mm² and 50 mm²

  Технические данные

  Power cables	MOTION‑CONNECT 500	MOTION‑CONNECT 800PLUS
  	6FX500.‑....‑....	6FX800.‑.....‑....
  Certificate of suitability
  VDE1)	Yes	Yes
  cURus or UR/CSA	UL 758, CSA‑C22.2‑N.210.2‑M90	UL 758, CSA‑C22.2‑N.210.2‑M90
  UR-CSA File No.2)	Yes	Yes
  RoHS conformity	Yes	Yes
  Rated voltage V0/V in accordance with EN 50395
  Power conductors	600 V/1000 V	600 V/1000 V
  Signal conductors	24 V (EN) 1000 V (UL/CSA)	24 V (EN) 1000 V (UL/CSA)
  Test voltage, rms
  Power conductors	4 kV	4 kV
  Signal conductors	2 kV	2 kV
  Operating temperature on the surface
  Fixed installation	‑20 … +80 °C (‑4 ... +176 °F)	‑50 … +80 °C (‑58 ... +176 °F)
  Flexible installation	0 … 60 °C (32 ... 140 °F)	‑20 … +60 °C (‑4 ... +140 °F)
  Tensile stress, max.
  Fixed installation	50 N/mm2 (7252 lbf/in2)	50 N/mm2 (7252 lbf/in2)
  Flexible installation	20 N/mm2 (2901 lbf/in2)	20 N/mm2 (2901 lbf/in2)
  Smallest bending radius
  Fixed installation	5 × Dmax	4 × Dmax
  Flexible installation	See selection and ordering data	See selection and ordering data
  Torsional stress	Absolute 30°/m	Absolute 30°/m
  Bending	100000	10 million
  Traversing velocity	30 m/min (98.4 ft/min)	Up to 300 m/min (984 ft/min)
  Acceleration	2 m/s2 (6.56 ft/s2)	Up to 50 m/s2 (164 ft/s2) see characteristic curves
  Insulation material, incl. jacket	CFC/silicone-free	CFC/halogen/silicone-free IEC 60754‑1/DIN VDE 0472‑815
  Oil resistance	EN 60811‑2‑1 (mineral oil only))	EN 60811‑2‑1
  Outer jacket	PVC	PUR, HD22.10 S2 (VDE 0282, Part 10)
  	DESINA color orange RAL 2003	DESINA color orange RAL 2003
  Flame-retardant	EN 60332‑1‑1 to 1‑3	EN 60332‑1‑1 to 1‑3





  Degree of protection of the pre-assembled power cables and their extensions when closed and connected: IP67.

  ¹⁾ The respective registration number is printed on the cable jacket (only applies to power cables).

  ²⁾ The File No. is printed on the cable jacket.
