Create MyInterface

• Заказные данные
  (2)
• Информационные материалы

  Информационные материалы

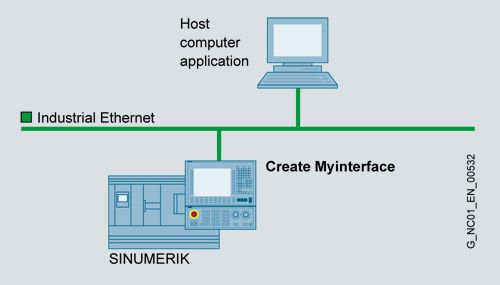

  The SINUMERIK Integrate for production Create MyInterface software is used to integrate SINUMERIK CNCs into a customer's production network. All essential machine data, such as status information, piece counts, alarms, messages, CNC programs, tool service life, can be exchanged via Create MyInterface between a central control system and the CNC.

  Функции

  • Defined, opened communications interface for exchanging essential data of the SINUMERIK CNC
  • Data transmission can be initiated by the host computer and/or by the SINUMERIK CNC
  • The host application is created by the user in the SINUMERIK Integrate for production Create MyInterface environment (interfaces, examples)
  • The following data can be exchanged:
    • CNC programs, tool data
    • Machine status data
    • Messages
    • Production dialog data
    • Mode switchover, synchronization
    • Transport jobs
    • Configurable data from PLC or CNC

  Even without its own user interface, SINUMERIK Integrate for production Create MyInterface can run with additional languages (e.g., Korean, Russian, Simplified Chinese).

  Интеграция

  Requirements:

  • SINUMERIK 840D sl with maximum of 4 NCUs
  • SINUMERIK PCU 50.5 Windows 7
  • SINUMERIK Integrate for production Manage MyTools for computer-controlled loading and unloading of tools



  SINUMERIK Integrate for production Create MyInterface cannot run by itself in a given systems environment. An application to be created specifically for a customer (not included in Create MyInterface) is always required on the host computer side.

  Особенности

  • Simple integration of the CNC with customer/project applications through a defined Ethernet/TCP-IP-based interface
  • Simple configuration of the data to be transferred on the PLC
  • SINUMERIK Integrate for production Create MyInterface as a tool that can be used to implement measures designed to boost productivity:
    • Machine capacity utilization improved by production control
    • Machine downtimes reduced by transmission of maintenance data
  • Simple application by using standard hardware/software components from the PC world
    • Networking hardware/software (Ethernet cards, TCP-IP)
    • Familiarization
    • Commissioning, maintenance
