SINUMERIK 828D BASIC T/ BASIC M training cases

• Информационные материалы

  Информационные материалы

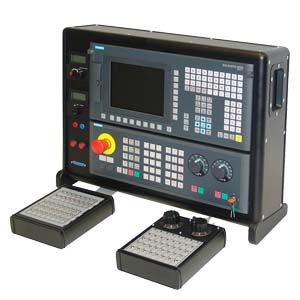

  SINUMERIK 828D BASIC T training case

  The training cases for SINUMERIK 828D BASIC T and SINUMERIK 828D BASIC M are used to provide practical training in operation, programming, commissioning and servicing.

  Дизайн

  SINUMERIK 828D BASIC training case

  • SINUMERIK 828D BASIC T PPU241.2 or
    SINUMERIK 828D BASIC M PPU241.2
    including system software and software options
  • SINUMERIK MCP 483 PN machine control panel
  • SINUMERIK PP 72/48D 2/2A PN I/O module
  • SINAUT MD720-3 GSM/GPRS modem including antenna

  The SINUMERIK 828D BASIC T/BASIC M training cases are designed for table set-up and can be operated independently without a SINAMICS S120 Combi training rack.

  Технические данные

  	SINUMERIK 828D BASIC T training case	SINUMERIK 828D BASIC M training case
  	6AG1067-1AA19-0AA0	6AG1067-1AA20-0AA0
  Supply voltage	230 V AC	230 V AC
  Degree of protection to DIN VDE 0470 Part 1/ EN 60529/IEC 60529	IP00	IP00
  Ambient temperature
  Storage	-20 ... +60 °C (-4 ... +140 °F)	-20 ... +60 °C (-4 ... +140 °F)
  Transport	-20 ... +60 °C (-4 ... +140 °F)	-20 ... +60 °C (-4 ... +140 °F)
  Operation	5 ... 40 °C (41 ... 122 °F)	5 ... 40 °C (41 ... 122 °F)
  Dimensions
  Width	650 mm (25.59 in)	650 mm (25.59 in)
  Height	500 mm (19.69 in)	500 mm (19.69 in)
  Depth	250 mm (9.84 in)	250 mm (9.84 in)
  Weight, approx.	23 kg (50.7 lb)	23 kg (50.7 lb)
