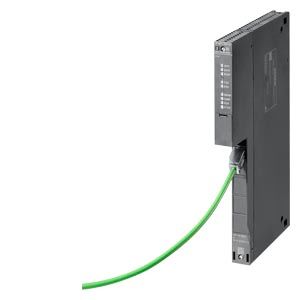

CP 443-1 OPC UA communications processor

Communications processor for connecting a SIMATIC S7-400 to Industrial Ethernet networks via OPC UA mechanisms.

The CP 443-1 OPC UA supports:

PG/OP communication
Communication via OPC UA as OPC UA server and/or OPC UA client for exchanging process data (data access)

The CP makes it possible to provide data for, or receive data from, other stations via a standardized OPC UA interface direct from the SIMATIC S7-400 controller. The CP can be used here as an OPC UA server and/or an OPC UA client. Communication as an OPC UA client takes place via user blocks standardized by the PLCopen organization. For more detailed information, see also: http://www.plcopen.org/pages/tc4_communication/index.htm

It can be used in SIMATIC S7-400 H systems as well as in standard SIMATIC S7-400 systems, and for fail-safe applications (PROFIsafe) in connection with an S7-400 F-CPU.

Область применения

The CP 443-1 OPC UA is a communication module for connecting the SIMATIC S7-400 to Industrial Ethernet. With its own processor, it relieves the CPU of communications tasks and enables connections via the OPC UA protocol.

The CP 443-1 OPC UA permits communication of the S7-400 with:

Programming devices, computers, HMI devices
Computer with MES/ERP systems
Third-party controllers
Host computers
SIMATIC systems

Дизайн

The CP 443-1 OPC UA offers all the advantages of the SIMATIC S7-400 system design:

Compact design:
- One RJ45 jack for connecting to Industrial Ethernet; automatic data rate detection using autonegotiation and autocrossover;
  the connection is made via the IE FC RJ45-Plug 180 with 180 °cable outlet or via a standard patch cable.
- Diagnostics LEDs for indicating the operational and communication status
Easy installation: The CP 443-1 OPC UA is mounted on the S7-400 rack and connected to the other modules via the backplane bus. No slot rules apply.
The CP 443-1 OPC UA can be operated without a fan
In combination with the IM460/461, the CP 443-1 OPC UA can also be used in an expansion rack (ER)
The module can be replaced without the need for a programming device

Функции

One interface for connecting to Industrial Ethernet with an RJ45 connection at 10/100/1000 Mbps full/half duplex with autonegotiation and autocrossover functionality
Supported communication services on this interface:
- As OPC UA server: Read/write access for data exchange (DA), access via subscriptions
- As OPC UA client: Read/write access for data exchange (DA). Communication via standardized function blocks in accordance with PLCopen
- PG communication for configuring the CP, cross-network through S7 routing
- Time-of-day forwarding to the CPU as NTP time client (optionally secure NTP)
- Module replacement without programming device: All configuration information can be stored on the CPU
- The CP can operate simultaneously as an OPC UA server and OPC UA client. For corresponding restrictions of the quantity structure, see the manual.
Diagnostics and network management:
- With https via web browser.
- Standard and extended diagnostics in STEP 7 V5.5/STEP 7 Professional (TIA Portal) V14
- Integration into network management systems through support for SNMP V1 or SNMP V3
Security mechanisms:
- Access to the data using fundamental OPC UA security functions (authentication by certificate, encryption, and data signing)
- Secure network management integration (SNMPv3)
- Secure time-of-day transfer (NTP-secured)
- Secure firmware updating
- Secure web server communication (HTTPS)
- Traceability by means of data logging on the basis of standard IT mechanisms (syslog)
- Counterfeit detection
Configuring:
- Configuring is performed using Step 7 V5.5 SP4 incl. HF 8 and HSP. The security functions are configured using the Security Configuration Tool (SCT) V4.2 and higher
- It will be possible to configure the CP including the security functions in STEP 7 Professional (TIA Portal) V14 and higher

Интеграция

The aim is data exchange between a SIMATIC S7-400 and 3^rd party systems via a standardized interface. As an OPC UA server, the CP uses OPC UA mechanisms to provide data in a standardized and secure form for linking to an OPC UA-capable HMI, SCADA or database system as a client.

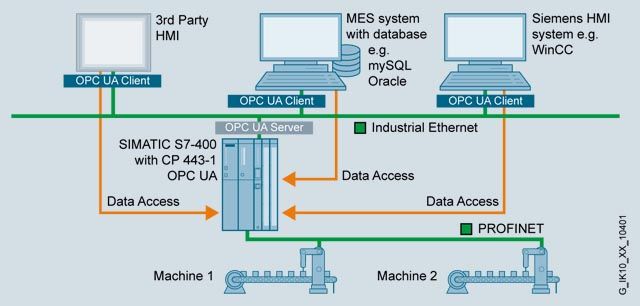

Data exchange with HMI/SCADA/MES/ERP systems from various manufacturers

As an OPC UA server, the communications processor provides data in a standardized form for exchange with a third-party controller. At the same time, the CP can retrieve data from another OPC UA server as an OPC UA client by programming the necessary blocks.

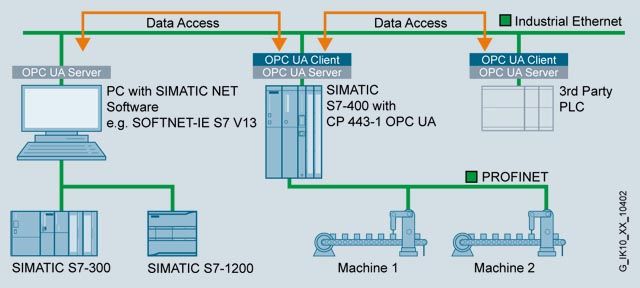

Vendor-neutral controller-to-controller communication

Особенности

Open, standardized connection of an S7-400 to HMI/SCADA/MES/ERP systems or third-party PLCs using the OPC UA interface.
Investment protection thanks to later connection of existing SIMATIC S7 systems to Industrial Ethernet using the CP 443-1 OPC UA.
Secure, protected exchange of OPC UA data via fundamental security functions such as authentication, authorization, encryption and signing of data.
Completely flexible for connecting to the most diverse corporate systems using OPC UA as client and server
High-speed data transfer thanks to communication via TCP/IP.
Relieving the CPU of communications tasks.
High plant availability through use in the SIMATIC S7-400 H system
Optimum support of maintenance through:
- Remote programming via WAN or internet
- Secure web-based diagnostics
- Monitoring with IT network management tools (SNMP)

Технические данные

Order number		6GK7443-1UX00-0XE0
Product type designation		CP 443-1 OPC UA
Transmission rate
Transfer rate
● for Industrial Ethernet		10 ... 1 000 Mbit/s
Interfaces
Number of interfaces acc. to Industrial Ethernet		1
Type of electrical connection
● of Industrial Ethernet interface		RJ45 port
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage		DC
Supply voltage 1 from backplane bus		5 V
Relative symmetrical tolerance at DC
● at 5 V		5 %
Consumed current
● from backplane bus at DC at 5 V typical		1.3 A
Power loss [W]		6.5 W
Permitted ambient conditions
Ambient temperature
● during operation		0 ... 60 °C
● during storage		-40 ... +70 °C
● during transport		-40 ... +70 °C
Relative humidity at 25 °C without condensation during operation maximum		95 %
Protection class IP		IP20
Design, dimensions and weight
Module format		Compact module S7-400 single width
Width		25 mm
Height		290 mm
Depth		210 mm
Net weight		0.7 kg
Product properties, functions, components general
Number of units
● per CPU maximum		1
Performance data S7 communication
Number of possible connections for S7 communication
● with PG connections maximum		2
Performance data as OPC UA server
Protocol is supported OPC UA Server		Yes
Number of possible connections to OPC UA clients maximum		10
Number of variables (items) maximum		64 000
Storage capacity for variables (items) in summary		64 000 byte
Number of monitorings (subscriptions)
● per connection maximum permissible		5
Number of variables (items)
● per monitoring (subscriptions) maximum		900
Memory capacity for monitored variables (items)		45 000 byte
Performance data as OPC UA client
Protocol is supported OPC UA Client		Yes
Number of possible connections for OPC UA server maximum		5
Number of variables (items) over all connections reading/writing maximum		10 000
Protocol is supported
● SNMP v1		Yes
● SNMP v3		Yes
Product functions Diagnosis
Product function Web-based diagnostics		Yes
Product functions Security
Product function
● password protection for Web applications		Yes
● encrypted data transmission		Yes
● switch-off of non-required services		Yes
● log file for unauthorized access		Yes
Product functions Time
Protocol is supported
● NTP		Yes
● NTP (secure)		Yes

Дальнейшая информация

You can find more information on the topic online at: http://www.siemens.com/simatic-classic-s7-opcua
