RUGGEDCOM RX1400

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  The RUGGEDCOM RX1400 is a rugged small form factor industrial Ethernet switch and TCP/IP router with LTE and fiber optic WAN options, which enables secure, cost effective, large scale deployment of communications and processing power for harsh environment applications.

  Features

  • 4 copper Fast Ethernet ports and 2 Gigabit Small Form factor pluggable (SFP) slots
  • Support for multimode and single-mode SFPs for distances ranging from 500 meter up to 100 km
  • Equipped with an GPS input
  • Available with and without LTE-Modem for Europe, North America, Asia Pacific and Japan· Fully integrated, +/-12-24 VDC power supply
  • For use at ambient temperatures from –40 °C to +85 °C without the use of fans

  Product versions

  RUGGEDCOM RX1400

  • Small form-factor industrial Ethernet-switch and TCP/IP router with LTE and fiber optic WAN options

  Интеграция

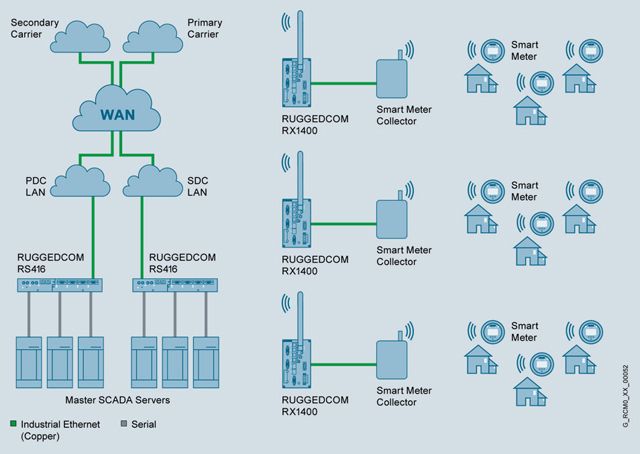

  The RUGGEDCOM RX1400 with LTE-support provides a high bandwidth connection for the large amounts of Smart Meter data

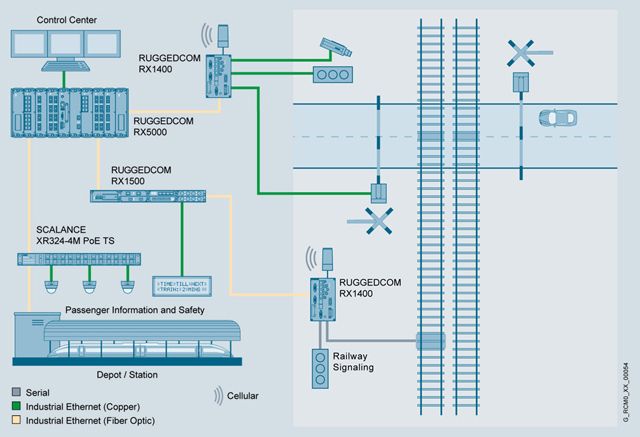

  Redundant connection to end-devices used in conjunction with signaling and monitoring whenwireline backhaul is combined with cellular connectivity. Serial ports ensure legacy device support

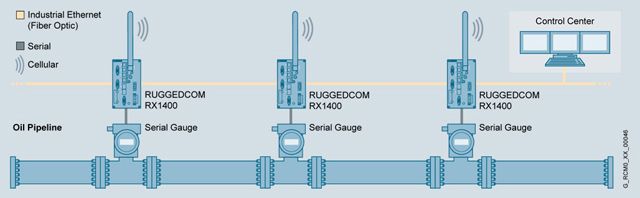

  Using the serial ports of the RUGGEDCOM RX1400 to connect to serial gauges enables communication with the Control Center via fiber optics and a cellular network

  Дальнейшая информация

  To assist in selecting the right RUGGEDCOM products as well as configuration of variants, the RUGGEDCOM Selector is available at:

  http://www.siemens.com/ruggedcom-selector
