RUGGEDCOM RS900L managed

• Информационные материалы

  Информационные материалы

  The RUGGEDCOM RS900L product family consists of multiple utility grade devices, supporting Ethernet over VDSL (EoVDSL) and allowing up to 5 km LAN segments over telephone-grade cable at up to 35 Mbps.

  Features

  • Multiple device variants supporting EoVDSL are available:
    • RS900L: 8-Port managed Ethernet switch with 1 EoVDSL uplink
    • RS910L: 2-Port Serial Device Server, 2-Port managed Ethernet switch with 1 EoVDSL uplink
    • RS920L: 2-Port Serial Device Server with 2 EoVDSL uplinks
    • RS930L: 6-Port managed Ethernet with 2 EoVDSL uplinks
  • With EoVDSL up to 5 km long LAN segments are possible with symmetric data rates up to 35 Mbps
  • 24 VDC, 48 VDC, or high-power (88–300 VDC / 85–264 VAC) options for worldwide operability
  • For use at ambient temperatures from –40 °C to +85 °C without the use of fans

  Product version

  RUGGEDCOM RS900L

  • 8-port managed Ethernet switch with EoVDSL uplink and 128-bit encryption

  RUGGEDCOM RS900LNC

  • 8-port managed Ethernet switch with EoVDSL uplink and 56-bit encryption

  RUGGEDCOM RS910L

  • Serial and Ethernet device server with EoVDSL uplink and 128-bit encryption

  RUGGEDCOM RS910LNC

  • Serial and Ethernet device server with EoVDSL uplink and 56-bit encryption

  RUGGEDCOM RS920L

  • EoVDSL with integrated dual-port serial device server and 128-bit encryption

  RUGGEDCOM RS920LNC

  • EoVDSL with integrated dual-port serial device server and 56-bit encryption

  RUGGEDCOM RS930L

  • 6-port managed Ethernet switch with dual-port EoVDSL uplinks and 128-bit encryption

  RUGGEDCOM RS930LNC

  • 6-port managed Ethernet switch with dual-port EoVDSL uplinks and 56-bit encryption

  Интеграция

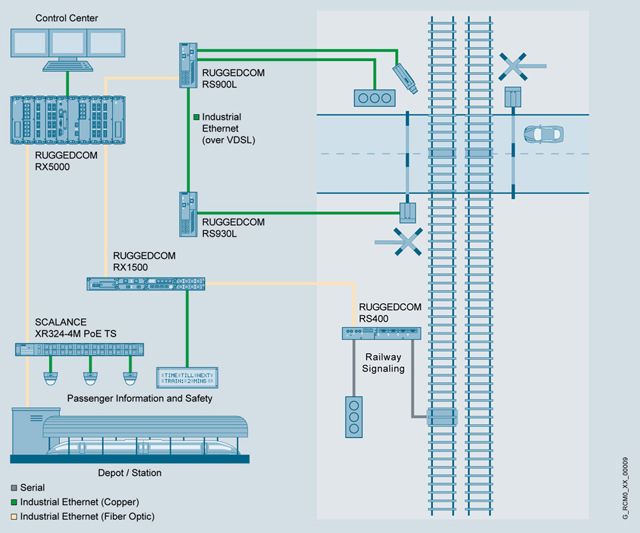

  Intelligent Traffic Systems - Wayside Infrastructure

  Дальнейшая информация

  To assist in selecting the right RUGGEDCOM products as well as configuration of variants, the RUGGEDCOM Selector is available at:

  http://www.siemens.com/ruggedcom-selector
