Inscription labels

• Заказные данные
  (252)
• Информационные материалы

  Информационные материалы

  Label holders of black plastic, and inscription labels (black with white print or silver-colored with black print) for sticking or snapping in place, are available for labeling. They are not suitable for EMERGENCY-STOP buttons. Note mounting dimensions! The label holders cannot be used in conjunction with protective caps, protective collars and locking devices.

  Inscription

  The inscription is in upper/lower case, all words begin with upper case letters. Graphic symbols, including those not listed in the catalog, are according to ISO 7000 or IEC 60417.

  For customized inscriptions, see "Options".

  Inscription labels for sticking/snapping in place

  The labels are available in three sizes:

  • 12.5 mm × 27 mm
  • 17.5 mm × 27 mm
  • 27 mm × 27 mm

  For mounting the inscription labels, you can choose between label holders for stick-on or snap-on mounting.

  Опции

  Customized inscriptions

  The labels can be inscribed with text and symbols not listed in the ordering data.

  The following letter heights are used as standard for text inscriptions:

  • Label size 12.5 mm × 27 mm, max. 3 lines: Letter height 4 mm (1-line), 3.5 mm (2-line) or 2.5 mm (3-line)
  • Label size 17.5 mm × 27 mm, max. 3 lines: Letter height 4 mm (1- to 2-line) or 3 mm (3-line)
  • Label size 27 mm × 27 mm, max. 5 lines: Letter height 4 mm (1- to 5-line)

  Up to 11 characters per line are possible. The typeface used is Arial. Other letter heights and typefaces are possible, but must be specified when ordering.

  Examples for customized inscription

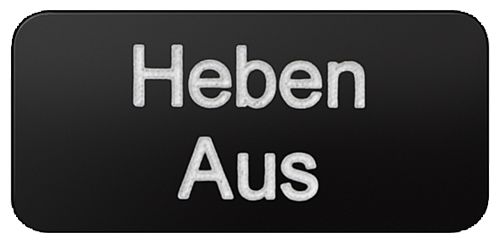

  Two-line inscription in upper/lower case lettering (Q0Y)

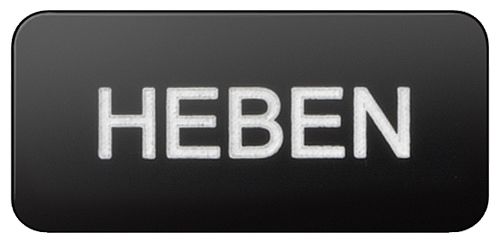

  Single-line inscription in upper case lettering (Q1Y)

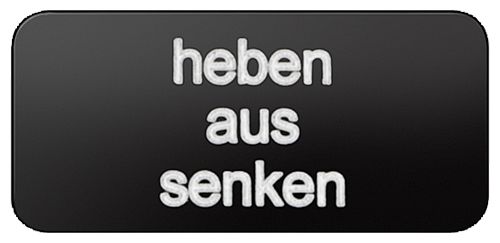

  Three-line inscription in lower case letters (Q2Y)

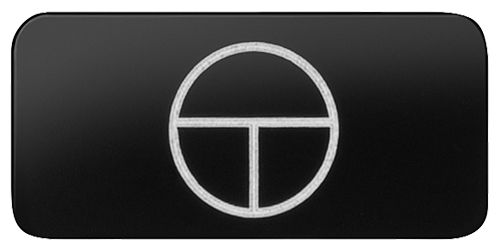

  Symbol number 5011 according to IEC 60417 (Q3Y)



  Any symbol according to order form supplement (Q9Y)

  Ordering notes

  Append the following order codes to the Article No.:

  • Q0Y: Text line(s) in upper/lower case, upper case always for beginning of line (e.g. "Lift / Off"):
  • Q1Y: Text line(s) in upper case (e.g. "LIFT"):
  • Q2Y: Text line(s) in lower case (e.g. "lift / off / lower")
  • Q5Y: Text line(s) in upper/lower case, all words begin with upper case letters (e.g. "On   Off"):
  • Q3Y: Symbol with number according to ISO 7000 or IEC 60417
  • Q9Y: Inscription of choice, text or symbol, can only be ordered via SIRIUS ACT Configurator with a Configuration Identification Number (CIN)

  When ordering, specify the required inscription in plain text without spaces, in addition to the Article No. and order code. In the case of special inscriptions with words in languages other than German, give the exact spelling and specify the language. For long words you can also specify the end-of-line division. In the case of multi-line inscriptions, the text must be assigned to the respective line, e.g. Z1=Lift, Z2=Lower (see ordering example 1).

  Symbols can also be ordered with numbers according to ISO 7000 or IEC 60417 (see ordering examples 2 and 3).

  The SIRIUS ACT Configurator must be used to select special inscriptions and symbols (order code Q9Y). In this case a CIN (Configuration Identification Number) is generated for placement of future orders. It is then possible to place an order directly using the CIN and the SIRIUS ACT Configurator (Mall shopping cart) or via the standard ordering channels.

  Standard ordering channels

  • Industry Mall
  • Configurator: http://www.siemens.com/sirius-act/configurator
  • Electronic Catalog CA01 on DVD
  • Industry Mall: http://www.siemens.com/industrymall

  Ordering example 1

  A label with 2 lines of text is required:

  3SU1900-0AC16-0AZ0
  Q1Y
  Z1=LIFT
  Z2=LOWER

  Ordering example 2

  A label inscribed with symbol No. 5011 according to IEC 60417 is required:

  3SU1900–0AC16-0AZ0
  Q3Y
  Z=5011 IEC

  Ordering example 3

  A label inscribed with symbol No. 1118 according to ISO 7000 is required:

  3SU1900–0AC16-0AZ0
  Q3Y
  Z=1118 ISO
