Pulse converters

• Заказные данные
  (2)
• Информационные материалы

  Информационные материалы

  The pulse converter is available in three versions:

  • SICLOCK PCON
  • SICLOCK EOPC
  • SICLOCK GPS1000 PS

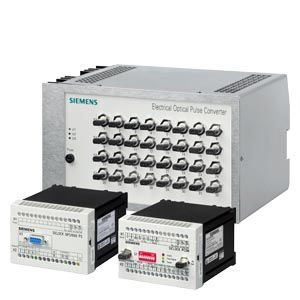

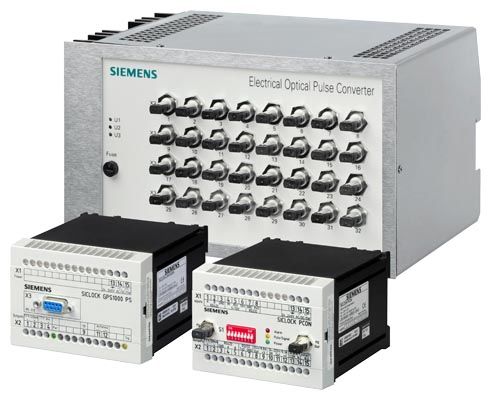

  SICLOCK GPS1000 PS, SICLOCK PCON and SICLOCK EOPC pulse converters

  SICLOCK PCON pulse converter

  The SICLOCK PCON is a single-channel, electrical-optical pulse converter. It enables electrical and optical time frames and pulses to be distributed.

  The device has three inputs for electrical signals (RS 422, RS 232, etc.), one optical input, as well as five electrical outputs and one optical output. By using fiber-optic cables, longer distances can be bridged with very high interference immunity.

  The SICLOCK PCON pulse converter can be operated in two modes:

  • In transparent mode, the input signal is output at all outputs without any change.
  • In pulse mode, an edge change at the input triggers a pulse with parameterizable length at all outputs.

  The device is easily parameterized by means of DIP switches located directly on the device.

  Inputs X1	Outputs X2
  RS 422 (non-isolated)	RS 422 (non-isolated)
  RS 232 (non-isolated)	RS 232 (non-isolated)
  Pulse input 5 ... 35 V or 5 ... 70 V	Pulse output 24 V (non-isolated)
  	Pulse output 24 ... 220 V (isolated)
  FOC	FOC
  BFOC connection system	BFOC connection system
  	TTY 20 mA current interface





  SICLOCK PCON pulse converter (functional diagram)

  SICLOCK EOPC pulse converter

  The SICLOCK EOPC is an electrical-optical converter and hub. It features two electrical inputs, which can be alternatively used, and transfers these signals at its 32 fiber-optic outputs. This pulse converter is therefore the ideal choice for applications with numerous nodes with optical pulse interface which have to be synchronized.

  Inputs X1	Outputs
  TTY 20 mA current interface	32 x BFOC 62.5/125 µm
  Pulse input 10 ... 65 V





  SICLOCK GPS1000 PS pulse converter

  The SICLOCK GPS1000 PS pulse converter is always used when a SICLOCK wireless receiver is used as stand-alone unit, i.e. without a central plant clock. It fulfills two main functions:

  • On the one hand, the pulse converter is used as an energy source for SICLOCK wireless receivers.
  • On the other hand, the device is used as a level converter.

  The time signal received at input 11/12 is output as RS 232 level at the Sub-D interface X3.

  Inputs	Outputs
  TTY 20 mA current interface to the wireless receiver	9‑pole Sub-D RS 232 level
  	TTY 20 mA current interface
  	TTY-inverted 20 mA current interface





  Технические данные

  Order number		2XV9450-1AR72	2XV9450-1AR63-1SA3
  		SICLOCK EOPC 24-60V DC	SICLOCK PCON E10433-E0415-H100
  General information
  Product brand name		SICLOCK
  Product type designation		EOPC 24 V DC	PCON 24 - 230 V AC/DC, multimode
  Product designation		Pulse converter
  Installation type/mounting
  Mounting type		DIN rail 35 mm or 19 inch rack	DIN rail 35 mm
  Supply voltage
  permissible range, lower limit (DC)		20 V	24 V
  permissible range, upper limit (DC)		28 V	230 V
  permissible range, lower limit (AC)			24 V
  permissible range, upper limit (AC)			230 V
  Number of electrical connections for redundant power supply		2
  Power
  Power consumption, max.		60 W
  Digital inputs
  Number of voltage inputs		1
  Design of voltage inputs		10 - 60 V / 5 mA	5 - 35 V or 5 - 70 V
  Number of inputs for FOC			1
  Digital outputs
  Number of outputs (24 V DC)			1
  Number of outputs (24 V ... 230 V AC/DC)			1
  Number of outputs for FOC		32	1
  Output current
  ● For output (24 V DC)			0.8 A
  ● For output (24 V ... 230 V AC/DC)		6 A	0.1 A
  Relay outputs
  ● Number of relay outputs
  — As changeover contact for ALARM			1
  Interfaces
  Number of RS 485 interfaces
  ● As input			1
  ● As output			1
  Number of 20 mA interfaces (TTY)
  ● As input		2
  ● As output			1
  Number of RS 232 interfaces
  ● As input			1
  ● As output			1
  Degree and class of protection
  IP degree of protection		IP20	IP40
  Ambient conditions
  Ambient temperature during operation
  ● min.		0 °C
  ● max.		50 °C
  Connection method
  Design of the FOC connection		BFOC
  Mechanics/material
  Design of the FOC		Glass fiber 62.5/126 µm, plastic 1 000 µm
  Material of optical fiber		Glass, plastic
  Dimensions
  Width		250 mm	100 mm
  Height		140 mm	70 mm
  Depth		135 mm	120 mm




  Дальнейшая информация

  For further product details, refer to the

  • "SICLOCK PCON" operating instructions
  • http://support.automation.siemens.com/WW/view/en/73996703
  • "SICLOCK EOPC Electrical Optical Pulse Converters"operating instructionshttp://support.automation.siemens.com/WW/view/en/73996778
