Central plant clocks

• Заказные данные
  (2)
• Информационные материалы

  Информационные материалы

  The central plant clocks evaluate the clock time data that was transmitted from the wireless receiver and generate diverse output signals in order to synchronize the connected I/O devices.

  If the wireless receiver fails or signal transmission is interrupted, the central plant clocks switch over to their internal high-precision quartz system and thus ensure reliable tracking of the clock time. When the input signal is available again, the central plant clock adjusts any time differences that may have occurred without time jumps by means of "microsteps".

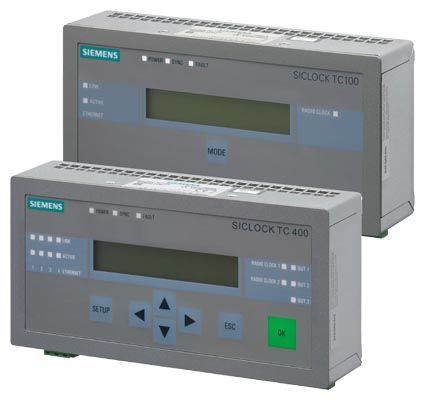

  SICLOCK TC100 and SICLOCK TC400 central plant clocks

  Inputs and outputs

  The high-precision SICLOCK TC100 and SICLOCK TC400 central plant clocks have one (SICLOCK TC100) or two (SICLOCK TC400) inputs for connection to wireless receivers.

  The central plant clocks have one (SICLOCK TC100) or four (SICLOCK TC400) independent 10/100 Mbit Ethernet interfaces.

  The network stations are synchronized using the proven SNTP standard and by means of the SIMATIC procedure.

  The SICLOCK central plant clocks have two relay outputs for signaling alarms or warnings.

  Alternatively and/or in addition, two point-to-point connections TTY (20 mA current interface) or one RS 422 (5 V level) connection can be set up for the SICLOCK TC400 central plant clock.

  Operation

  Parameterization of the interfaces, setting of the signal types, redundancy modes, and read-out of the status messages stored in the device are conveniently implemented via the integrated web interface.

  LEDs and a display indicate operating states and show any error messages, which can also be read out via the web interface.

  Note:

  In order to use the comfort-parameterization , you have to use a personal computer with the software Java Runtime V1.4.0 or later version from Oracle. This software is not included in the scope of delivery, but has to be acquired separately, which may incur additional cost.

  Технические данные

  Order number		2XV9450-2AR22	2XV9450-2AR01
  		SICLOCK_TC100_Device	SICLOCK_TC400_Single device
  General information
  Product brand name		SICLOCK
  Product type designation		TC100	TC400
  Product designation		Central plant clock
  Installation type/mounting
  Mounting type		DIN rail 35 mm or 19 inch rack
  Supply voltage
  Supply voltage (DC)		24 V
  Relative negative tolerance		15 %
  Relative positive tolerance		20 %
  Mains buffering
  ● Buffering time, max.		3 ms
  Input current
  Continuous rated current, max.		0.5 A	0.7 A
  Operating current of fuse protection at input, slow-blow		1 A
  Output current
  Design of outputs for supply of the antenna		20 mA to 40 mA at 48 V
  Power
  Power consumption, max.		9 W	15 W
  Power loss
  Power loss, typ.		6 W	7.5 W
  Time of day
  Design of the inputs		1x GPS1000 / DCFRS time input 48 V / 40 mA	2x GPS1000 / DCFRS time input 48 V / 40 mA
  Clock
  ● Time deviation relative to GPS signal, max.		50 µs
  ● Time deviation relative to DCF77 signal, max.		1 000 µs
  ● Time deviation of the GPS signal with jitter, max.		200 ns
  ● Relative accuracy on loss of GPS signal, max.		0.0001 %
  ● Relative accuracy on loss of DCF77 signal, max.		0.000001 %
  ● Relative accuracy on power supply failure, max.		0.0004 %
  ● Clock error compensation relative to 1 s		50 µs
  Digital outputs
  Relay outputs
  ● Number of relay outputs
  — as NC contact for ALARM		1
  — as NC contact for WARNING		1
  Switching capacity of contacts
  — Current carrying capacity at 48 V DC		0.06 A
  Interfaces
  Number of industrial Ethernet interfaces		1	4
  Number of 20 mA interfaces (TTY)
  ● As output			2
  Number of RS 422 interfaces
  ● As output			1
  Industrial Ethernet
  ● Transmission rate, min.		10 Mbit/s
  ● Transmission rate, max.		100 Mbit/s
  Interface types
  RJ 45 (Ethernet)
  ● Autonegotiation		Yes
  Protocols
  Bus protocol/transmission protocol		(S)NTP, DCF77	(S)NTP, DCF77, pulses, cycles, message frames
  Potential separation
  between Ethernet and electronics		Yes
  Degree and class of protection
  IP degree of protection		IP20
  Equipment protection class		III (according to EN 60536)
  Standards, approvals, certificates
  Standard for EMC		EN 55022 Class A, FCC Class, EN 55024
  Standard for ambient influences
  ● During operation		EN 60721-3-3 class 3KS
  ● During storage		EN 60721-3-2 class 2K4
  ● Relative humidity during operation		IEC 60068-2-78, IEC 60068-2-30
  ● Relative humidity during storage		IEC 60068-2-78, IEC 60068-2-30
  Ambient conditions
  Ambient temperature during operation
  ● min.		0 °C
  ● max.		55 °C
  ● Permissible temperature change relative to one hour (without condensation)		10 °C
  Ambient temperature during storage/transportation
  ● Storage, min.		-40 °C
  ● Storage, max.		70 °C
  ● Permissible temperature change relative to one hour (without condensation)		20 °C
  ● Transportation, min.		-40 °C
  ● Transportation, max.		70 °C
  Air pressure acc. to IEC 60068-2-13
  ● permissible range, lower limit		795 hPa
  ● permissible range, upper limit		1 080 hPa
  ● Installation altitude, min.		-1 000 m
  ● Installation altitude, max.		2 000 m
  Relative humidity
  ● Operation at 25 ℃ without condensation, min.		10 %
  ● Operation at 25 ℃ without condensation, max.		95 %
  ● Storage at 25 ℃ without condensation, min.		10 %
  ● Storage at 25 ℃ without condensation, max.		95 %
  Mechanics/material
  Service life
  ● Battery (during operation), min.		10 y	12 y
  ● Battery unconnected (during storage), min.		10 y	12 y
  ● Battery connected (during storage), min.		6 y
  Dimensions
  Width		180 mm
  Height		89 mm
  Depth		47 mm




  Дальнейшая информация

  For further product details, refer to the

  • "SICLOCK TC100 Central Plant Clock" operating instructions http://support.automation.siemens.com/WW/view/en/73996805
  • "SICLOCK TC400 Central Plant Clock" operating instructions http://support.automation.siemens.com/WW/view/en/73996850
