System cabling for SIMATIC S7-300/400 and ET 200M

• Информационные материалы

  Информационные материалы

  Wiring of SIMATIC S7 I/O modules with the sensors/actuators is a significant factor with respect to time/cost overhead, configuring, control cabinet installation, procurement and ease of service.

  With SIMATIC TOP connect system cabling, it is simple and quick to establish a reliable connection for your SIMATIC S7-300 or ET 200M.

  With the TIA Selection Tool, a mouse click is all that is required to configure the connection from the SIMATIC S7 module to the I/O. The program automatically checks for plausibility and generates a parts list for the selected connection components that can then be ordered in the Industry Mall.

  Further information can be found on the Internet at

  http://www.siemens.com/tia-selection-tool

  Дизайн

  Two cabling variants are available for a wide range of control cabinet concepts:

  Fully modular connection

  Each component is individually inserted.

  The system consists of:

  • Front connector module
  • Connecting cable
  • Terminal modules in the following versions: Basic module, signal module and function module

  Connection errors are thus practically excluded and installation overhead is minimized. Systematic connection of the SIMATIC system. The assembly overhead for the connecting cables is drastically reduced thanks to the use of pre-assembled or easily assembled cables sold by the meter.



  SIMATIC TOP connect for S7-300/ ET200M, fully modular connection

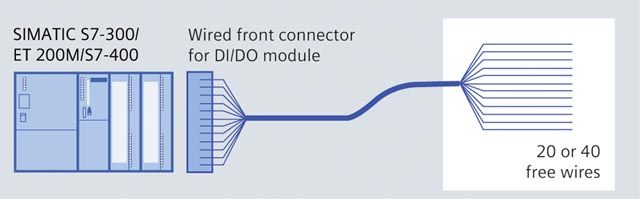

  Flexible connection

  Consisting of:

  • Front connector with screw-type or crimp connection
  • Front connector with fixed single cores
  • Single cores also available with UL/CSA-certified cores

  The blue wires are numbered sequentially and can be routed direct to each element in the control cabinet. The numbering of the single cores corresponds to the coding of the front connector contacts.

  In comparison to conventional single wiring, there is a cost saving of 50% for assembly, since the single cores that have already been checked on the connector are fixed.

  Thus no complex pre-assembly of up to two times 46 single cores per module is necessary.



  SIMATIC TOP connect for S7-300/ET200M, flexible connection
