CPU 1511T-1 PN

Заказные данные
(31)
Аксессуары
(31)

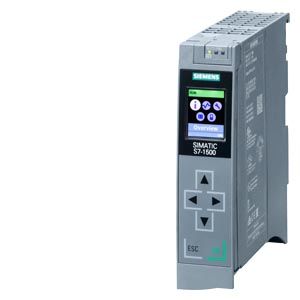

Entry-level CPU in the S7-1500T controller product range
Suitable for applications with medium requirements for program scope and processing speed
Used as central controller in production lines with central and distributed I/O
PROFINET IO IRT interface with 2-port switch
PROFINET IO Controller for operating distributed I/O on PROFINET
PROFINET I-Device for connecting the CPU as an intelligent PROFINET device under a SIMATIC or non-Siemens PROFINET IO controller
OPC UA Server (Data Access) as runtime option for the easy connection of SIMATIC S7-1500 to third-party devices/systems
Isochronous mode
Integrated motion control functionalities for controlling speed-controlled, positioning and synchronized axes (gearing and camming), support for external encoders, cams/cam tracks and probes
Integrated web server for diagnostics with the option of creating user-defined web pages

Note

SIMATIC Memory Card required for operating the CPU

Область применения

The CPU 1511T-1 PN is the cost-effective entry-level CPU for applications with medium requirements for processing speed and speed of response in discrete production technology. The CPU 1511-1 PN can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 2-port switch, enabling a linear topology to be set up in the system. In addition, the CPU offers comprehensive control functionalities via easy-to-configure blocks as well as the ability to connect drives via standardized PLCopen blocks.

Дизайн

The CPU 1511T-1 PN features:

A powerful processor:
The CPU achieves command execution times as low as 60 ns per binary instruction.
A large work memory:
225 KB for program, 1 MB for data
SIMATIC Memory Cards as load memory;
permit additional functions such as datalog and archives
Flexible expansion capability:
single-tier configuration with max. 32 modules (CPU + 31 modules)
Display with functions for:
- Display of overview information such as IP address of the integrated interface, station name, plant designation, location identifier, etc.
- Display and acknowledgment of diagnostic and user messages
- Display of module information
- Display of a user-definable logo
- Showing display settings
- Setting IP addresses
- Setting of date and time
- Selecting the operating mode
- Resetting the CPU to factory settings
- Backup and restoring of the project
- Disabling/enabling the display
- Enabling protection levels
PROFINET IO IRT interface for connecting distributed I/O via PROFINET

Функции

Performance
- Faster command processing, language extensions and new data types depending on the CPU type
- Even shorter response times of the CPUs due to considerably faster backplane bus
- High-performance network connection:
  each CPU is equipped with PROFINET IO IRT (2-port switch) as the standard interface
Integrated technology
- Control of PROFIdrive-capable drives and drives with analog setpoint interface via standardized motion control instructions (PLCopen)
- Motion control functions:
  speed-controlled axes, positioning axes, synchronized axes, external encoders, cams, cam track, probe, extended synchronous operation functions (synchronization with or without specification of the synchronous position, setpoint or actual value linkage, shifting of the master value at the following axis, camming), cam disk, max. 4 encoder or measuring systems as actual position for position control
- Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection; can also be called via the web server of the CPU
- Comprehensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted into the CPU.
- 4-level authorization concept:
  Communication to the HMI devices can also be restricted
- Manipulation protection:
  The controller recognizes changed or unauthorized transmissions of the engineering data
Design and handling
- Display of overview information:
  E.g. Station name, plant identifier, location designation, etc., diagnostic information, module information, display settings
- Possible operations on the display:
  Set addresses of the CPU or connected Ethernet communications processors, set date and time, select operating mode of CPU, reset CPU to factory settings, disable/enable display, activate protection levels, acknowledge messages, backup and restoring of the project
Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the display, TIA Portal, HMI devices and Web server, even for messages from the drives, and updated even if the CPU is in STOP mode.
- Integrated in the firmware of the CPU, no special configuration is required
SIMATIC Memory Card (required for operation of the CPU)
- Used as a plug-in load memory or for updating the firmware
- Also for storing additional documents or csv files (for recipes and archives)
- Creation of data blocks for storage/reading of data via SFCs of the user program
Datalog (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
  easy access to plant-relevant operating data using Office tools or via a Web server
- Easy access to machine configuration data by means of a Web browser or SD card reader (two-way data exchange from and to the controller)
Programming
- Programming with STEP 7 Professional, V14 and higher
- S7-1200 basic programs can be transferred to the S7-1500 by copy and paste.

Технические данные

Order number		6ES7511-1TK01-0AB0
		CPU 1511T-1PN, 225KB progr., 1MB data
General information
Product type designation		CPU 1511T-1 PN
Engineering with
● STEP 7 TIA Portal configurable/integrated as of version		V14
Supply voltage
Type of supply voltage		24 V DC
Power loss
Power loss, typ.		5.7 W
Memory
Work memory
● integrated (for program)		225 kbyte
● integrated (for data)		1 Mbyte
Load memory
● Plug-in (SIMATIC Memory Card), max.		32 Gbyte
CPU processing times
for bit operations, typ.		60 ns
for word operations, typ.		72 ns
for fixed point arithmetic, typ.		96 ns
for floating point arithmetic, typ.		384 ns
Counters, timers and their retentivity
S7 counter
● Number		2 048
IEC counter
● Number		Any (only limited by the main memory)
S7 times
● Number		2 048
IEC timer
● Number		Any (only limited by the main memory)
Data areas and their retentivity
Flag
● Number, max.		16 kbyte
Address area
I/O address area
● Inputs		32 kbyte; All inputs are in the process image
● Outputs		32 kbyte; All outputs are in the process image
Time of day
Clock
● Type		Hardware clock
1. Interface
Interface types
● Number of ports		2
● integrated switch		Yes
● RJ 45 (Ethernet)		Yes; X1
Functionality
● PROFINET IO Controller		Yes
● PROFINET IO Device		Yes
● SIMATIC communication		Yes
● Open IE communication		Yes
● Web server		Yes
● Media redundancy		Yes
PROFINET IO Controller
Services
— PG/OP communication		Yes
— S7 routing		Yes
— Isochronous mode		Yes
— Open IE communication		Yes
— IRT		Yes
— MRP		Yes; As MRP redundancy manager and/or MRP client; max. number of devices in the ring: 50
— MRPD		Yes; Requirement: IRT
— PROFIenergy		Yes
— Prioritized startup		Yes; Max. 32 PROFINET devices
— Number of connectable IO Devices, max.		128; In total, up to 256 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET
— Of which IO devices with IRT, max.		64
— Number of connectable IO Devices for RT, max.		128
— of which in line, max.		128
— Number of IO Devices that can be simultaneously activated/deactivated, max.		8; in total across all interfaces
— Number of IO Devices per tool, max.		8
— Updating times		The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data
Update time for IRT
— for send cycle of 250 µs		250 μs to 4 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 625 µs of the isochronous OB is decisive
— for send cycle of 500 µs		500 μs to 8 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 625 µs of the isochronous OB is decisive
— for send cycle of 1 ms		1 ms to 16 ms
— for send cycle of 2 ms		2 ms to 32 ms
— for send cycle of 4 ms		4 ms to 64 ms
— With IRT and parameterization of "odd" send cycles		Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs)
Update time for RT
— for send cycle of 250 µs		250 µs to 128 ms
— for send cycle of 500 µs		500 µs to 256 ms
— for send cycle of 1 ms		1 ms to 512 ms
— for send cycle of 2 ms		2 ms to 512 ms
— for send cycle of 4 ms		4 ms to 512 ms
PROFINET IO Device
Services
— PG/OP communication		Yes
— S7 routing		Yes
— Isochronous mode		No
— Open IE communication		Yes
— IRT		Yes
— MRP		Yes
— MRPD		Yes; Requirement: IRT
— PROFIenergy		Yes
— Shared device		Yes
— Number of IO Controllers with shared device, max.		4
Protocols
Supports protocol for PROFINET IO		Yes
PROFIsafe		No
PROFIBUS		No
Number of connections
● Number of connections, max.		96; via integrated interfaces of the CPU and connected CPs / CMs
PROFINET IO Controller
Services
— Number of connectable IO Devices, max.		128; In total, up to 256 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET
— Of which IO devices with IRT, max.		64
— Number of connectable IO Devices for RT, max.		128
Isochronous mode
Isochronous operation (application synchronized up to terminal)		Yes; With minimum OB 6x cycle of 625 µs
Supported technology objects
Motion Control		Yes; Note: The number of axes affects the cycle time of the PLC program; selection guide via the TIA Selection Tool or SIZER
Controller
● PID_Compact		Yes; Universal PID controller with integrated optimization
● PID_3Step		Yes; PID controller with integrated optimization for valves
● PID-Temp		Yes; PID controller with integrated optimization for temperature
Counting and measuring
● High-speed counter		Yes
Ambient conditions
Ambient temperature during operation
● horizontal installation, min.		0 °C
● horizontal installation, max.		60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off
● vertical installation, min.		0 °C
● vertical installation, max.		40 °C; Display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off
Configuration
Programming
Programming language
— LAD		Yes
— FBD		Yes
— STL		Yes
— SCL		Yes
— GRAPH		Yes
Know-how protection
● User program protection/password protection		Yes
● Copy protection		Yes
● Block protection		Yes
Access protection
● Password for display		Yes
● Protection level: Write protection		Yes
● Protection level: Read/write protection		Yes
● Protection level: Complete protection		Yes
Dimensions
Width		35 mm
Height		147 mm
Depth		129 mm
Weights
Weight, approx.		430 g

Дальнейшая информация

Further information and downloads

Manuals

The SIMATIC S7-1500 manuals can be downloaded free of charge from the Internet (SIMATIC Customer Support).

http://support.automation.siemens.com/WW/view/en/86140384

TIA Portal - an overview of the most important documents and links - control

https://support.industry.siemens.com/cs/en/en/view/65601780

SIMATIC S7-1500 Display Simulator

Using the Display Simulator of the S7-1500, you can become familiar in advance with the different setting options and functions on the display.

http://www.automation.siemens.com/salesmaterial-as/interactive-manuals/getting-started_simatic-s7-1500/disp_tool/start_en.html

General information

http://www.siemens.com/S7-1500

SIMATIC Selection Tool

http://www.siemens.com/tia-selection-tool

Brochures

Information material for downloading can be found on the Internet:

http://www.siemens.com/simatic/printmaterial
