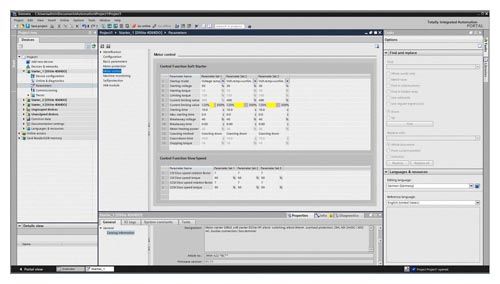

  Easy and clearly arranged parameter setting of the 3RW44 soft starter with SIRIUS Soft Starter ES (TIA Portal)

  More information
  For technical specifications and system requirements, see https://support.industry.siemens.com/cs/de/en/ps/24230/td





  Graphic presentation of measured values with the trace function (oscilloscope function) of SIRIUS Soft Starter ES (TIA Portal) Standard and Premium

  The SIRIUS Soft Starter ES (TIA Portal) software permits the quick and easy parameterization, monitoring and diagnostics of SIRIUS 3RW44 High Feature soft starters for service purposes. The device parameters can be configured directly on the PC and transferred to the soft starter through a serial cable or an optional PROFIBUS/PROFINET interface.

  Version 14, which is based on the central engineering framework Totally Integrated Automation Portal (TIA Portal), is available in addition to Soft Starter ES Version 2007.

  SIRIUS Soft Starter ES V14 is integrated seamlessly when further TIA Portal-based software such as STEP 7 or WinCC is available, thus enabling users to achieve a consistent, efficient and intuitive solution for all automation tasks.

  However, use of SIRIUS Soft Starter ES V14 as stand-alone software also provides these advantages.

  Efficient engineering with three program versions

  The Soft Starter ES (TIA Portal) software program is available in three versions which differ in their user-friendliness, scope of functions and price.

  Soft Starter ES V14	Basic	Standard	Premium
  Access through the local interface on the device	✓	✓	✓
  Parameter assignment	✓	✓	✓
  Operating	✓	✓	✓
  Diagnostics	✓	✓	✓
  Creating typicals	--	✓1)	✓
  Exporting parameters	--	✓	✓
  Comparison functions	--	✓	✓
  Service data (slave pointer, statistics data)	--	✓	✓
  Access through PROFIBUS/PROFINET	--	--	✓
  Parameter comparison	--	--	✓
  Teleservice through MPI	--	--	✓
  Routing	--	--	✓





  ✓ Function available

  -- Function not available

  ¹⁾ Typicals with Service Pack 1 and higher.

  Additional functions

  SIRIUS Soft Starter ES V14 offers numerous advantages of the TIA Portal that can be used in an integrated working environment.

  Seamless integration

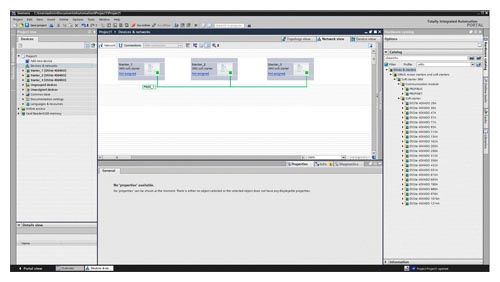

  When using other TIA Portal-based software such as STEP 7 or WinCC, for example, the configuration for devices and networks for all components used is created in a standardized environment.

  Working with libraries

  Users can create copy templates for 3RW44 soft soft starter device configuration and can manage them in global or project libraries. This way, individual modules, diagrams and complete device configurations can be saved as reusable elements for frequently occurring tasks.

  Teleservice through MPI

  The SIRIUS Soft Starter ES (TIA Portal) Premium version supports the use of MPI Teleservice (comprising the Teleservice software and various Teleservice adapters) for remote diagnostics of the devices. This facilitates diagnostics and maintenance, and it shortens response times for service purposes.

  Особенности

  • Clearly arranged configuring of device functions and their parameters – online and offline
  • Effective diagnostics functions on the soft starter and display of the most important measured values
  • Trace function (oscilloscope function) for recording measured values and events (in the SIRIUS Soft Starter ES (TIA Portal) Standard and Premium versions).
  • Complete transparency thanks to printout, logbook and event memory
  • High degree of user-friendliness – convenient user interface, with English, German, French, Italian, Spanish and Chinese as possible operating languages
  • Time savings through shorter startup times
  • Fast, low-cost licensing using a simple licensing procedure (available online too)
