The unmanaged Industrial Ethernet switches of the SCALANCE XC-100 product line are optimized for installing Industrial Ethernet networks at transmission rates of 10/100 Mbps in a line and star topology for machine level applications:

Connection to stations or network in accordance with the port type of the devices (electrical with RJ45 port, or optical with ST/BFOC port)
Rugged metal enclosure for space-saving cubicle mounting on standard DIN rail, S7-300 DIN rail, S7-1500 for wall mounting
Rugged, industry-standard station connections with PROFINET-compatible RJ45 connectors that offer additional strain relief and bending strain relief thanks to latching on the housing (retaining collar)
Redundant power supply
Clear diagnostics display on the device by means of LEDs (power, link status, data communication)
Error signaling contact with easy adjustment using the SET button

Product versions

SCALANCE XC106-2 / SCALANCE XC108 / SCALANCE XC116 / SCALANCE XC124

Construction of optical Industrial Ethernet line or star topologies:
- SCALANCE XC106-2;
  with 6 electrical ports (RJ45 with retaining collar) and 2 optical ports (ST/BFOC)
- SCALANCE XC108;
  with 8 electrical ports (RJ45 with retaining collar)
- SCALANCE XC116;
  with 16 electrical ports (RJ45 with securing collar)
- SCALANCE XC124;
  with 24 electrical ports (RJ45 with securing collar)
Diagnostics on the device using LEDs (power, link status, data traffic) and signaling contact (alarm screen form can be set using a button on the device)
The RJ45 ports are suitable for industrial use and have additional retaining collars: optimized for connecting the IE FC RJ45 Plug 180

Область применения

The switches of the SCALANCE XC-100 product line support the inexpensive construction of Industrial Ethernet line or star topologies with switching functions for machine level applications. They are designed for installation in the control cabinet. The devices have approvals for ATEX Zone 2 and IECEx, allowing use in hazardous areas. The SCALANCE XC108 also has E1 approval, making the products especially suitable for use in public transportation vehicles. In addition, the SCALANCE XC-100 product line can be used for applications in shipbuilding (available soon) thanks to different approvals.

Дизайн

The SCALANCE Industrial Ethernet switches with housing rear sections of metal are optimized for mounting on a standard DIN rail and an S7-1500 DIN rail. Direct wall mounting in various positions is also possible. Due to the housing dimensions that correspond to those of the SIMATIC S7-1500, the devices are ideally suited for integration into automation solutions and mounting on the S7-1500 DIN rail. Mounting on an S7-300 DIN rail is also possible.

The SCALANCE XC-100 switches feature:

A 4-pin terminal block for connecting the redundant supply voltage (2 x 24 V DC)
A raised row of LEDs for displaying status information (power, link status, data communication, signaling contact)
A 2-pole terminal block for connecting the floating signaling contact
A SET button for on-site configuration of the signaling contact

The following port types are available:

10/100BaseTX, RJ45 port;
automatic detection of the transmission rate (10 or 100 Mbit/s), with autosensing and autocrossover functions for connecting IE FC cables using IE FC RJ45 Plug 180 up to 100 m
100BaseFX, ST/BFOC port;
for direct connection to the Industrial Ethernet glass FOC up to 5 km

Функции

Construction of electrical and optical Industrial Ethernet line or star topologies
Selected connecting cables can be used due to autocrossover function integrated in the ports
Isolation of the load due to integrated switch functions
Easy network configuration and network expansion;
no limitation to network span when SCALANCE XC-100 product line switches are cascaded

Network topology and network configuration

The SCALANCE XC-100 switches are typically installed with the stations to be connected in a control cabinet. They can be mixed electrically and optically in star and line topologies.

When configuring the network, it is necessary to observe the following boundary conditions:

Length of the TP cable between two SCALANCE XC switches:
- Max. 100 m with Industrial Ethernet FastConnect products
Length of the fiber-optic cables:
- Max. 5 km with Industrial Ethernet glass fiber-optic cables

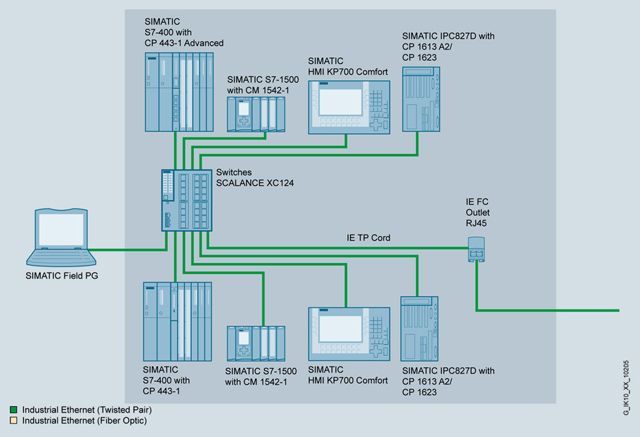

Star-shaped network topology with SCALANCE XC124

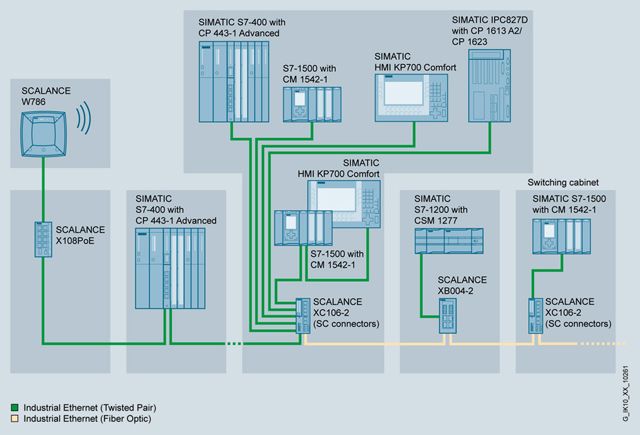

Electrical and optical line topology with SCALANCE XC106-2 and XB004-2 as well as connection and supply of data terminal equipment with Power-over-Ethernet (PoE) by SCALANCE X108PoE

Optical star topology with SCALANCE X106-2

Diagnostics

The following information is displayed by LEDs on site:

Power
Port status
Data traffic

The Industrial Ethernet switches of the SCALANCE XC-100 line can also be monitored using the floating signaling contact.

Особенности

Ideal solution for configuring Industrial Ethernet line and star topologies
Space-saving installation in the cabinet thanks to compact design in S7-1500 format and mounting option on S7-1500 DIN rail
Extended temperature range from -40°C to +70°C
Reliable plug-in connection thanks to industry-standard device connection in conjunction with PROFINET-compliant FastConnect connectors
Installation is possible without a patch field by means of IE FC RJ45 Plug 180 and IE FC Standard Cable
Uncrossed connecting cables can be used thanks to the integrated autocrossover function

Технические данные

Order number	6GK5106-2BB00-2AC2	6GK5108-0BA00-2AC2	6GK5116-0BA00-2AC2	6GK5124-0BA00-2AC2
Product type designation	SCALANCE XC106-2	SCALANCE XC108	SCALANCE XC116	SCALANCE XC124
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	6; RJ45	8; RJ45	16; RJ45	24; RJ45
Number of 100 Mbit/s ST(BFOC) ports
● for multimode	2
Interfaces others
Number of electrical connections
● for signaling contact	1	1	1	1
● for power supply	1	1	1	1
● for redundant voltage supply	1	1	1	1
Type of electrical connection
● for signaling contact	2-pole terminal block	2-pole terminal block	2-pole terminal block	2-pole terminal block
● for power supply	4-pole terminal block	4-pole terminal block	4-pole terminal block	4-pole terminal block
Signal-Inputs/outputs
Operating voltage of the signaling contacts
● at DC Rated value	24 V	24 V	24 V	24 V
Operating current of the signaling contacts
● at DC maximum	0.1 A	0.1 A	0.1 A	0.1 A
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC	DC	DC
Supply voltage
● external	24 V	24 V	24 V	24 V
● external	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V
Supply voltage 1 Rated value	12 V	12 V	12 V	12 V
● Supply voltage 1 rated value	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V
● Type of voltage 1 of the supply voltage	DC	DC	DC	DC
● Consumed current 1 at rated supply voltage maximum	0.4 A	0.25 A	0.45 A	0.65 A
Supply voltage 2 Rated value	24 V	24 V	24 V	24 V
● Supply voltage 2 rated value	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V
● Type of voltage 2 of the supply voltage	DC	DC	DC	DC
● Consumed current 2 at rated supply voltage maximum	0.2 A	0.125 A	0.225 A	0.325 A
● Power loss [W] 2 Rated value	4.8 W	3 W	5.4 W	7.8 W
Product component fusing at power supply input	Yes	Yes	Yes	Yes
Fuse protection type at input for supply voltage	2.5 A / 125 V	2.5 A / 125 V	2.5 A / 125 V	2.5 A / 125 V
Power loss [W]
● at DC at 24 V	4.8 W	3 W	5.4 W	7.8 W
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20	IP20
Design, dimensions and weight
Design	compact	compact	compact	compact
Width	60 mm	60 mm	120 mm	120 mm
Height	147 mm	147 mm	147 mm	147 mm
Depth	125 mm	125 mm	125 mm	125 mm
Net weight	0.85 kg	0.85 kg	0.85 kg	0.85 kg
Material of the enclosure	Polycarbonate (PC-GF10)	Polycarbonate (PC-GF10)	Polycarbonate (PC-GF10)	Polycarbonate (PC-GF10)
Mounting type	ET200pro module carrier	ET200pro module carrier	ET200pro module carrier	ET200pro module carrier
● 35 mm DIN rail mounting	Yes	Yes	Yes	Yes
● wall mounting	Yes	Yes	Yes	Yes
● S7-300 rail mounting	Yes	Yes	Yes	Yes
● S7-1500 rail mounting	Yes	Yes	Yes	Yes
Product properties, functions, components general
Number of automatically learnable MAC addresses	2 048	2 048	2 048	2 048
Number of priority channels	4	4	4	4
Product functions management, configuration
Product function
● multiport mirroring	No	No	No	No
● CoS	Yes	Yes	Yes	Yes
● switch-managed	No	No	No	No
Product functions Redundancy
Product function
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	Yes	Yes	Yes	Yes
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No	No	No
Standards, specifications, approvals
Standard
● for hazardous zone	EN 60079-0:2012 + A11:2013, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X, IEC 6079-0:2011, IEC 6079-0-15:2010	EN 60079-0:2012 + A11:2013, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X, IEC 6079-0:2011, IEC 6079-0-15:2010	EN 60079-0:2012 + A11:2013, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X, IEC 6079-0:2011, IEC 6079-0-15:2010	EN 60079-0:2012 + A11:2013, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X, IEC 6079-0:2011, IEC 6079-0-15:2010
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T..	UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T..	UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T..	UL 1604 and UL 2279-15 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T.., Class 1 / Zone 2 / Group IIC / T..
● for emitted interference	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class B)	EN 61000-6-4 (Class B)	EN 61000-6-4 (Class B)
Certificate of suitability CE marking	Yes	Yes	Yes	Yes
Laser protection class	LED Class 1	LED Class 1	LED Class 1	LED Class 1
Certificate of suitability	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4
● C-Tick	Yes	Yes	Yes	Yes
● E1 approval	No	Yes	No	No
● EC declaration of conformity EN 61010, IEC 61010-1, UL 61010A-1	Yes	Yes	Yes	Yes
● KC approval	Yes	Yes	Yes	Yes
MTBF at 40 °C	84.92 y	100.24 y	73.69 y	58.42 y
