3-phase power supply system, 24 V DC

• Заказные данные
  (10)
• Аксессуары
  (1)
• Информационные материалы

  Информационные материалы

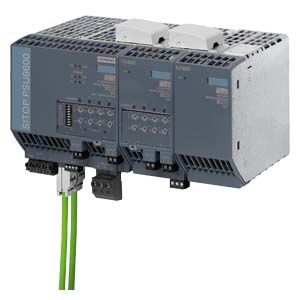

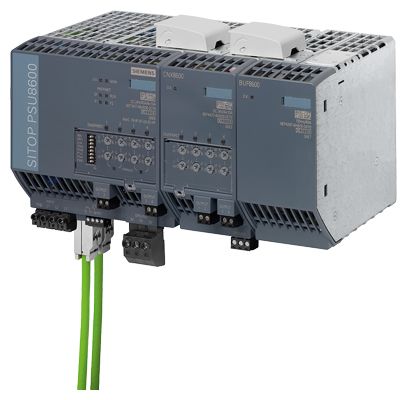

  The unique SITOP PSU8600 power supply system sets new standards for industrial power supplies. Voltage and current response thresholds can be set individually for each output of this power supply system. Selective monitoring of each output for overload also enables fast fault location. Depending on requirements, additional modules from the modular system can be added without wiring overhead, for example, to buffer against transient power failures.

  Comprehensive diagnostic and maintenance information is available via PROFINET and can be evaluated and visualized directly in SIMATIC PCS 7. Optimal support is also provided for energy management of a plant: From the acquisition of energy data from individual outputs, the specific activation and deactivation of outputs via PROFIenergy, to direct integration in power management systems.

  Special features

  • Reduced space requirement and costs due to multiple integrated outputs with selective monitoring
  • Individually configurable outputs (voltage from 5 V to 28 V, power response threshold value from 0.5 A to 5 A or 10 A)
  • Compensation for power losses can be set separately for each output
  • Narrow width without lateral installation clearances
  • Low temperature rise in the control cabinet due to very high efficiency
  • Two integrated Ethernet/PROFINET ports (no external switch required)
  • Can be added without wiring overhead (more outputs, buffer module for bridging transient power failures)
  • Preventive maintenance reduces downtimes
  • Energy savings during breaks through targeted switching of outputs (via STEP 7 program or PROFIenergy profile)
  • SIMATIC S7 function blocks for easy integration in STEP 7 user programs and faceplates for operator control and monitoring.
  • Direct integration in SIMATIC PCS 7 via SITOP library

  Дизайн

  Product overview

  Modules		Versions	Input	Output
  PSU8600 basic units
  	SITOP power supply system, 3-phase, 24 V DC	PSU8600, 20 A	3 AC 400 to 500 V	24 V DC, 20 A
  		PSU8600, 40 A	3 AC 400 to 500 V	24 V DC, 40 A
  		PSU8600, 20 A/5 × 4 A	3 AC 400 to 500 V	24 V DC, 20 A/4 × 5 A
  		PSU8600, 40 A/5 × 10 A	3 AC 400 to 500 V	24 V DC, 40 A/4 × 10 A
  CNX8600 for expanding outputs
  	SITOP CNX8600 4 × 5 A expansion module	CNX8600, 4 × 5 A	24 V DC	24 V DC, 4 × 5 A
  	SITOP CNX8600 4 × 10 A expansion module	CNX8600, 4 × 10 A	24 V DC	24 V DC, 4 × 10 A
  BUF8600 buffer
  	SITOP BUF8600 buffer module	BUF8600, 100 ms/40 A BUF8600, 300 ms/40 A BUF8600, 4 s/40 A BUF8600, 10 s/40 A	24 V DC	24 V DC, 40 A
