SIPLUS HMI KP8/KP8F/KP32F

Заказные данные
(2)

Информационные материалы

SIPLUS HMI KP8 PN

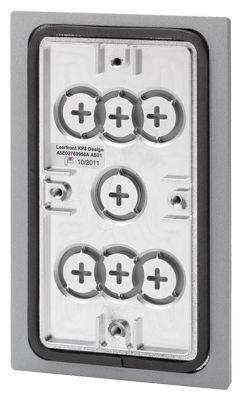

Empty front

SIPLUS HMI Key Panels

Optimum operability thanks to large mechanical keys and multi-colored LED backlighting (daylight readable)
Over 60% time savings for wiring and installation (Plug&Play)
More than 30% savings in material costs compared to conventional keypad operator panels
2 PROFINET ports (incl. switch) already integrated for setting up line and ring topologies
Freely configurable digital I/Os on the rear for connecting key-operated switches, indicator lamps, etc.
Connection of fail-safe emergency stop buttons or other fail-safe signals with KP8F and KP32F (in SIL2 or SIL3)
Functionally compatible with all standard PROFINET master CPUs, also non-Siemens
KP8 and empty front design, also optimized for installation in IPC Extension Units in IP65
Maximum flexibility due to parameterization
Empty front design for standardized assembly of flexible operator panels

Note

SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.

Область применения

Ideally suited to most verticals (automotive, F&B to oil & gas) thanks to the smooth and rugged front, even in hazardous areas (see technical specifications)
For intuitive, fast and very easy operation with minimum wiring
Language-neutral feedback with multi-color LEDs in the keys, even readable in sunlight
Extensions possible when built-in, without the need for cutting tools
Special-purpose machine manufacturing benefits from the high degree of flexibility

Дизайн

SIPLUS HMI Key Panel – Blank front design

Simple seamless installation with mounting clips
Rugged design, also suitable for harsh industrial environments
Prepared for installation of 22.5 mm standard components
Easy installation, or retrofitting during operation, of standard 22.5 mm operator controls

SIPLUS HMI Key Panel – basic functions

Smooth front, therefore easy to clean
Large mechanical illuminated pushbutton units can be programmed as switches or buttons
Loop-through 24 V DC power supply, no additional terminals required
Two PROFINET interfaces, perfect for line operation
Suitable for ring operation thanks to media redundancy protocol (MRP), normal running even when the PROFINET power supply cable is unplugged
Inputs and outputs on the rear, each pin can be used as an input or an output
The F variants are also equipped with SIL 2/3 inputs

SIPLUS HMI KP8 PN

8 large mechanical illuminated pushbuttons with extremely good tactile feedback, thus also suitable for harsh industrial environments
8 freely configurable digital I/Os
For standard CPUs

Чертеж

All dimensions in mm. For installation cutout, see technical specifications.

SIMATIC HMI Key Panel KP8; installation dimensions also valid for empty front design

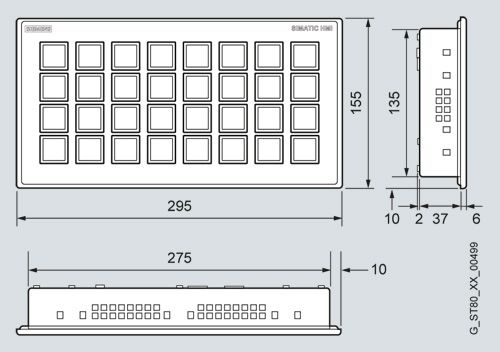

SIMATIC HMI Key Panel KP32F

Особенности

Less planning and assembly work than in the case of discrete components, thanks to the modular design
Savings in hardware costs: Distributed I/O, 2 PROFINET connections and I/Os are combined in one device
Keys and lamps can be labeled in IP65 using a standard printer (black and white or color)
High flexibility due to freely configurable colors, switch/button function and integrated diagnostics function
Any key color can be adapted dynamically to the process
Integrated standard inputs and outputs for actuators and sensors, and each pin can be used as input or output
Empty front designs can be used to reserve space for later system expansions and for easy mounting of standard 22.5 mm operator controls
Functions and design are optimally matched in the SIMATIC HMI spectrum, e.g. in PRO device extension units
SIL 2/3 safety with the "F" variants, e.g. emergency stop can be connected directly

All further details can be viewed in the manual at:

http://support.automation.siemens.com/WW/view/en/56652789

Технические данные

Order number		6AG1688-3AY36-2AX0
		SIPLUS HMI KP8 PN
General information
Product type designation		SIPLUS HMI KP8 PN
Control elements
With parameterizable keys		Yes
Keyboard fonts
● Membrane keyboard
— user-definable label membrane keys		Yes
● Function keys
— Number of function keys		8
● Short-stroke keys
— Number of short-stroke keys		8
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)		8; Adjustable brightness
● Number of color modes for LED		5; Red, green, blue, yellow, white
● Direct keys (keys as S7 input I/O)		8
Installation type/mounting
Mounting type		Clamp terminals
Mounting position		vertical
Mounting in portrait format possible		Yes
Mounting in landscape format possible		Yes
maximum permissible angle of inclination without external ventilation		30°; To the front/rear
Number of slots for command devices and signaling units		0
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V; 24 V looped through at connector, no interruption on pulling
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Type of output
LED colors
● red		Yes
● yellow		Yes
● green		Yes
● white		Yes
● blue		Yes
Digital inputs
Number of digital inputs		8; Max. 8 inputs and outputs (total)
Input voltage
● Rated value (DC)		24 V
Digital outputs
Number of digital outputs		8; Max. 8 inputs and outputs (total)
Short-circuit protection		Yes
Switching capacity of the outputs
● with resistive load, max.		100 mA
Output voltage
● Rated value (DC)		24 V; Non-isolated
Total current of the outputs
● Current per channel, max.		100 mA
● Current per group, max.		800 mA
Interfaces
Number of industrial Ethernet interfaces		2; For the construction of lines and rings without external switch
Number of PROFINET interfaces		2; Incl. switch
Industrial Ethernet
● Industrial Ethernet status LED		2; Per port
● Number of ports of the integrated switch		2; Per port
Protocols
PROFINET		Yes; also 3rd party PLC
PROFINET CBA		No
IRT		Yes
MRP		Yes
PROFIsafe		No
PROFIBUS		No
Test commissioning functions
Illuminant test		Yes; During switch on
Key and signal lamp test		Yes; Automatically when switching on
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas		Yes; Group 1, measured at a distance of 10 m
● Limit class B, for use in residential areas		No
Degree and class of protection
IP (at the front)		IP65
Enclosure Type 4 at the front		No
Enclosure Type 4x at the front		Yes; Incl. NEMA12
IP (rear)		IP20
Standards, approvals, certificates
CE mark		Yes
KC approval		Yes
Suitable for safety functions		No
Marine approval
● Germanischer Lloyd (GL)		No
● American Bureau of Shipping (ABS)		No
● Bureau Veritas (BV)		No
● Det Norske Veritas (DNV)		No
● Lloyds Register of Shipping (LRS)		No
● Nippon Kaiji Kyokai (Class NK)		No
● Polski Rejestr Statkow (PRS)		No
Ambient conditions
Ambient temperature during operation
● min.		-40 °C; = Tmin; Startup @ -25 °C
● max.		60 °C; = Tmax
● Operation (vertical installation)
— For vertical installation, min.		-40 °C; = Tmin; Startup @ -25 °C
— For vertical installation, max.		60 °C; = Tmax
● Operation (max. tilt angle)
— At maximum tilt angle, min.		-40 °C; = Tmin; Startup @ -25 °C
— At maximum tilt angle, min.		45 °C; = Tmax
● Operation (vertical installation, portrait format)
— For vertical installation, min.		-40 °C; = Tmin; Startup @ -25 °C
— For vertical installation, max.		60 °C; = Tmax
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.		-40 °C; = Tmin; Startup @ -25 °C
— At maximum tilt angle, min.		45 °C; = Tmax
Ambient temperature during storage/transportation
● min.		-25 °C
● max.		80 °C
Extended ambient conditions
● relative to ambient temperature-atmospheric pressure-installation altitude		Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m) // Tmin ... (Tmax - 10K) at 795 hPa ... 658 hPa (+2000 m ... +3500 m) // Tmin ... (Tmax - 20K) at 658 hPa ... 540 hPa (+3500 m ... +5000 m)
Relative humidity
— With condensation, tested in accordance with IEC 60068-2-38, max.		100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
Resistance
— against biologically active substances / conformity with EN 60721-3-3		Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna). The supplied connector covers must remain on the unused interfaces during operation!
— against chemically active substances / conformity with EN 60721-3-3		Yes; Class 3C4 (RH < 75%) incl. salt spray according to EN 60068-2-52 (degree of severity 3). The supplied connector covers must remain on the unused interfaces during operation!
— against mechanically active substances / conformity with EN 60721-3-3		Yes; Class 3S4 incl. sand, dust. The supplied connector covers must remain on the unused interfaces during operation!
Configuration
Configuration software
● STEP 7 Basic (TIA Portal)		Yes
● STEP 7 Professional (TIA Portal)		Yes
Functionality under WinCC (TIA Portal)
Process coupling
● S7-1200		Yes; with ET 200pro CPU and ET 200S CPU
● S7-1500		Yes
● S7-200		No
● S7-300/400		Yes; STEP 7 or SIMATIC STEP 7 Basic V11 or higher
● LOGO!		No
● WinAC		Yes
● SIMOTION		No
● Allen Bradley (EtherNet/IP)		No
● Allen Bradley (DF1)		No
● Mitsubishi (MC TCP/IP)		No
● Mitsubishi (FX)		No
● OMRON (FINS TCP)		No
● OMRON (LINK/Multilink)		No
● Modicon (Modbus TCP/IP)		No
● Modicon (Modbus)		No
Mechanics/material
Enclosure material (front)
● Plastic		Yes
● Aluminum		No
Service life
● Short-stroke keys (in switching cycles)		1 500 000
● LEDs (ON period)		100 %
Dimensions
Width of the housing front		98 mm
Height of housing front		155 mm
Mounting cutout, width		68 mm; Max. thickness of mounting plate 2 - 6 mm
Mounting cutout, height		129 mm
Overall depth		49 mm; Incl. angled SIMATIC Ethernet connector
Weights
Weight without packaging		270 g
