  The SIWAREX WL230 SB-S CA shear beam load cell is made of special nickel-plated steel. The 100 kg (220.46 lb) and 250 kg (551.16 lb) load classes are implemented as bending beams.

  The WL230 SB-S CA load cells are especially suited for platform scales and hopper scales where it is easy to introduce the load into the load cell by means of an adjustable foot. The load cell is available in rated loads from 100 kg to 10 t. This means that scales with multiple weighing ranges can be equipped with a single cell type.

  Load cells are legal-for-trade according to OIML R60. They are available in accuracy classes C3, C4 and C5.

  Дизайн

  The measuring element is a spring body made of special steel. Due to the galvanic coating of nickel and the IP67 degree of protection it is suitable for use in harsh environments.

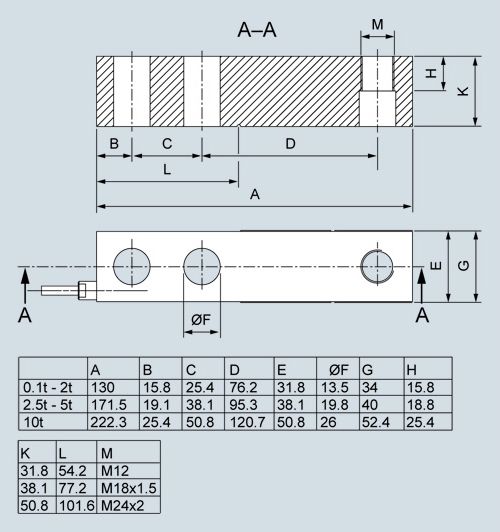

  Чертеж



  SIWAREX WL230 SB-S CA load cell

  Технические данные

  SIWAREX WL230 SB-S CA
  Possible applications	Platform scales Hopper scales
  Model	Bending beam up to rated load 250 kg (551.16 lb) Shear beam from rated load 500 kg (1 102.31 lb)
  Loads
  Minimum initial loading Emin	0 kg
  Max. working load Lu	150% Emax.
  Break load Ld	300% Emax.
  Safe lateral load LIq	100% Emax
  Accuracy class OIML R60	OIML C3	OIML C4	OIML C5
  Rated load/maximum load Emax.	100 kg, 250 kg, 500 kg, 1 000 kg, 2 000 kg, 3 000 kg 5 000 kg, 10 000 kg (220.46 lb, 551.16 lb, 1 102.31 lb, 2 204.62 lb, 4 409.25 lb, 6 613.87 lb, 11 023.11 lb, 22 046.23 lb)		100 kg, 250 kg, 500 kg, 1 000 kg, 2 000 kg (220.46 lb, 551.16 lb, 1 102.31 lb, 2 204.62 lb, 4 409.25 lb)	3 000 kg, 5 000 kg, 10 000 kg (6 613.87 lb, 11 023.11 lb, 22 046.23 lb)
  Max. load cell verification intervals nLC	3 000	4 000	5 000
  Min. load cell verification intervals Vmin	10 000	15 000	20 000	18 000
  Measurement characteristic values
  Combined error Fcomb	≤ ± 0.023% Cn	≤ ± 0.018% Cn	≤ ± 0.014% Cn
  Recommended supply voltage	5 ... 12 V DC
  Maximum supply voltage	18 V DC
  Rated characteristic value Cn	3.0 ± 0.003 mV/V
  Tolerance Do of zero signal	≤ ± 1.0% Cn
  Creep error 30 min Fcr	≤ ± 0.015% Cn
  Electrical characteristic values
  Input resistance Re	350 ± 3.5 Ω
  Output resistance Ra	350 ± 3.5 Ω
  Insulation resistance Ris	≥ 5 000 MΩ at 50 V DC
  Connection and ambient conditions
  Rated temperature range Btn	-10 ... +40 °C (14 ... 104 °F)
  Operating temperature range Btu	-35 ... +65 °C (-31 ... 149 °F)
  Storage temperature range Bts	-40 ... +80 °C (-40 ... 176 °F)
  Sensor material (DIN)	Steel, nickel-plated
  Degree of protection acc. to EN 60529	IP67
  Rated measuring path n at Emax
  100 kg 250 kg 500 kg 1 t 2 t 3 t 5 t 10 t	0.17 mm 0.15 mm 0.32 mm 0.63 mm 1.2 mm 0.9 mm 0.6 mm 0.8 mm
  Recommended tightening torque of the fixing screws
  For M12 For M18 For M24	75 Nm 500 Nm 750 Nm
  Length of the connecting cable (four-core)
  For rated loads up to 2 t For rated loads more than 2 t	Length 4 m Length 6 m
  Diameter of the connecting cable	5 mm
  Color coding of the connecting cable	Color
  EXC + EXC - SIG + SIG - Shield (not connected to the load cell body)	red black green white transparent
  ATEX	-
