SCALANCE XB-200 managed

Заказные данные
(16)
Аксессуары
(15)

The managed SCALANCE XB-200 switches are optimized for setting up 10/100 Mbit/s Industrial Ethernets in a line, star or ring topology (RM integrated)

Electrical and optical nodes or network connections can be implemented by means of 8 or 16 RJ45 ports (10/100 Mbit/s) or 3 fiber-optic ports (100 Mbit/s)
Rugged plastic enclosure
Diagnostics on the device by means of LEDs (power, link status, data communication)
The devices feature SNMP access, integral web server remote diagnostics and signaling over the network
Diagnostics and parameterization via web page or console port
Support of the two industrial protocols, PROFINET and Ethernet/IP, in the same device (software-switchable)
All device versions available with default setting for both PROFINET and EtherNet/IP

Product versions

Switches with electrical ports:
- SCALANCE XB208;
  8 x 10/100 Mbit/s RJ45 port, electrical
- SCALANCE XB216;
  16 x 10/100 Mbit/s RJ45 port, electrical
Switches with electrical and optical ports
- SCALANCE XB205-3;
  5 x 10/100 Mbit/s RJ45 port, electrical
  3 x 100 Mbit/s BFOC port, optical

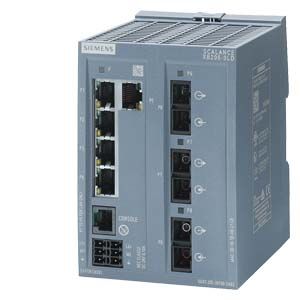

- SCALANCE XB205-3;
  5 x 10/100 Mbit/s RJ45 port, electrical
  3 x 100 Mbit/s SC port, optical
- SCALANCE XB205-3 LD;
  5 x 10/100 Mbit/s RJ45 port, electrical
  3 x 100 Mbit/s SC port, optical
- SCALANCE XB213-3;
  13 x 10/100 Mbit/s RJ45 port, electrical
  3 x 100 Mbit/s BFOC port, optical
- SCALANCE XB213-3;
  13 x 10/100 Mbit/s RJ45 port, electrical
  3 x 100 Mbit/s SC port, optical
- SCALANCE XB213-3 LD;
  13 x 10/100 Mbit/s RJ45 port, electrical
  3 x 100 Mbit/s SC port, optical

Область применения

The SCALANCE XB-200 Industrial Ethernet Switches are simple, low-cost Industrial Ethernet switches that contain the necessary software functionalities for automation with various protocols. The devices with degree of protection IP20 are designed for operation in the control cabinet.

Features:

Device diagnostics with LEDs (power, link status, data communication)
Remote diagnostics possible via PROFINET, Ethernet/IP, SNMP, CLI and web browser
Switchover between the two industry protocols PROFINET and Ethernet/IP is possible in the device

Application example for SCALANCE XB-200 switches:

Дизайн

The SCALANCE XB-200 Industrial Ethernet switches in their rugged plastic enclosure are optimized for mounting on standard DIN rails.

The devices are designed with IP20 degree of protection.

The switches have a 6-pin terminal block for connecting the redundant supply voltage (24 V DC) and the grounding. The port LEDs provide information on the status (power, link status, data traffic).

Ethernet interfaces:

10/100BaseTX, RJ45 connection;
8/6 or 16/13 x RJ45 socket, automatic data transmission rate detection, with autosensing and autocrossover function
100 Mbit/s, SC-FO connection;
3 x SC-FO socket (multimode)
100 Mbit/s, SC-LD-FO connection;
3 x SC-LD-FO socket (single mode)

Other interfaces:

6-pin terminal block for redundant voltage feed (24 V DC) and grounding
1 x RJ11 as connection for the serial interface

The port LEDs provide information on the status (power, link status, data traffic).

Remote diagnosis is possible by means SNMP,web browser and CLI.

Функции

High-speed redundancy in the ring with High Speed Redundancy (HSR) or Media Redundancy Protocol (MRP)
Reliable communication is achieved by closing an optical/electrical line with X-400, X-300 or X-200 switches to form an HSR ring. The SCALANCE XB-200 switches have an integral redundancy manager (RM) which continuously monitors the function of the network. It recognizes the failure of a transmission link or of a SCALANCE X switch in the ring and activates the substitute path.
In rings with SCALANCE X-200 or OSM/ESM it is possible to integrate XB-200 switches at 100 Mbit/s.
Redundant interfacing to company networks;
The XB-200 switches support the standardized redundancy procedures Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP). This enables a subnetwork to be connected redundantly to a higher level corporate network with reduced requirements for the reconfiguration time (in the order of seconds).
Support of virtual networks (VLAN)
For structuring Industrial Ethernet networks with a fast growing number of users, a physically existing network can be divided into several virtual networks.
Load limiting with use of multicast protocols (e.g. querier, video)
By learning the multicast sources and targets (IGMP snooping), XB-200 switches can also filter multicast data traffic and therefore limit the load in the network. Multicast and broadcast traffic can be limited.

Network topology and network configuration

The network topology can easily be adapted to suit the structure of the plant with SCALANCE XB-200 Industrial Ethernet switches.

The following network structures and combinations of structures can be implemented:

Fast Ethernet rings with fast media redundancy
In addition, the SCALANCE XB-200 switches support redundant connection of the ring structure to the corporate network with a rapid spanning tree.
Star topology with XB-200 switches
Each XB-200 switch represents a star point which can interconnect as many as 8/16 nodes or subnetworks.

When configuring the network, it is necessary to observe the following boundary conditions:

Maximum cable length for twisted pair:
- Max. 100 m with Industrial Ethernet FC cable and Industrial Ethernet FC Plugs
- Max. 10 m using patches with TP cord
Maximum line length between two SC connections (note transceiver data):
- 5 km (100 Mbit/s)
Maximum line length between two SC LD connections (note transceiver data):
- 26 km (100 Mbit/s)
IP address:
In the case of SCALANCE XB-200 Industrial Ethernet Switches, the IP address is assigned by means of the Dynamic Host Configuration Protocol (DHCP). If no corresponding server is available in the network, the IP address can be assigned using DCP.

Commissioning and diagnostics

PROFINET diagnostic interrupts from SCALANCE XB-200 switches can be displayed with the appropriate SIMATIC Engineering Tools and processed in the controller with an expanded diagnostics function. The engineering outlay for the PLC and HMI have been drastically reduced due to the complete integration in the SIMATIC concept for system error messages.

The SCALANCE XB-200 Industrial Ethernet switches can also be integrated into a network management system through the standardized Simple Network Management Protocol (SNMP). In the event of a fault in the device, error messages (SNMP traps) can be sent to a network system or as e-mail to a specified network administrator.

The integral Web server enables configuration and diagnostics settings to be made using a standard browser (e.g. port configuration). Statistical information can also be read out over the Web server (e.g. port capacity utilization). Further access is possible via CLI, by means of which the device can be parameterized, managed and diagnosed.

The following information is displayed on site by LEDs:

Power
Port status
Data traffic

Особенности

Ideal solution for configuring Ethernet line, ring and star topologies
High network availability due to design of redundant ring structures on the basis of high-speed redundancy (HRP), PROFINET-compliant ring redundancy (MRP), redundancy manager integrated
Quick and easy diagnosis with LEDs on the device, using integral Web server and via SNMP
Integration of the SCALANCE XB-200 switches in the existing network management infrastructure, e.g. SINEMA Server, through SNMP access point
Load limiting when using multicast-based protocols (Voice over IP, Video) thanks to IGMP Snooping/Querier and additional multicast and broadcast limiting per port
Uncrossed connecting cables can be used due to the integrated autocrossover function
Support of the two industrial protocols, PROFINET and Ethernet/IP, in the same device
Low-maintenance operation thanks to fanless construction
Support of VLANs permits integration into Enterprise Security Policies

Технические данные

Order number ¹⁾	6GK5208-0BA00-2AB2	6GK5205-3BB00-2AB2
Order number ²⁾	6GK5208-0BA00-2TB2	6GK5205-3BB00-2TB2
Product type designation	SCALANCE XB208	SCALANCE XB205-3
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	8; RJ45	5; RJ45
Number of 100 Mbit/s ST(BFOC) ports
● for multimode		3
Interfaces others
Number of electrical connections
● for operator console	1	1
● for management purposes	1	1
● for power supply	1	1
● for redundant voltage supply	1	1
Type of electrical connection
● for operator console	RJ11 port	RJ11 port
● for management purposes	RJ45 port	RJ45 port
● for power supply	6-pole terminal block	6-pole terminal block
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC
Supply voltage
● external	24 V	24 V
● external	19.2 ... 28.8 V	19.2 ... 28.8 V
Product component fusing at power supply input	Yes	Yes
Consumed current maximum	0.17 A	0.3 A
Permitted ambient conditions
Ambient temperature
● during operation	0 ... 60 °C	0 ... 60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %
Protection class IP	IP20	IP20
Design, dimensions and weight
Design	Box	Box
Width	40 mm	80 mm
Height	117 mm	117 mm
Depth	109 mm	109 mm
Net weight	0.25 kg	0.35 kg
Material of the enclosure	Plastic	Plastic
Mounting type
● 35 mm DIN rail mounting	Yes	Yes
● wall mounting	No	No
● S7-300 rail mounting	No	No
● S7-1500 rail mounting	No	No
Product properties, functions, components general
Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s	50	50
Cascading in cases of star topology	any (depending only on signal propagation time)	any (depending only on signal propagation time)
Product functions management, configuration
Product function
● CLI	Yes	Yes
● web-based management	Yes	Yes
● MIB support	Yes	Yes
● TRAPs via email	Yes	Yes
● Configuration with STEP 7	Yes	Yes
● RMON	Yes	Yes
● Port mirroring	Yes	Yes
● multiport mirroring	No	No
● CoS	Yes	Yes
● with IRT PROFINET IO switch	No	No
● PROFINET IO diagnosis	Yes	Yes
● switch-managed	Yes	Yes
Telegram length for Ethernet maximum	1 522 byte	1 522 byte
Protocol is supported
● Telnet	Yes	Yes
● HTTP	Yes	Yes
● HTTPS	Yes	Yes
● TFTP	Yes	Yes
● FTP	Yes	Yes
● BOOTP	No	No
● DCP	Yes	Yes
● LLDP	Yes	Yes
● EtherNet/IP	Yes	Yes
● IGMP (snooping/querier)	Yes	Yes
Identification & maintenance function
● I&M0 - device-specific information	Yes	Yes
● I&M1 – higher-level designation/location designation	Yes	Yes
Protocol is supported
● SNMP v1	Yes	Yes
● SNMP v2	Yes	Yes
● SNMP v3	Yes	Yes
Product functions Diagnosis
Product function
● Port diagnostics	Yes	Yes
● Statistics Packet Size	Yes	Yes
● Statistics packet type	Yes	Yes
● Error statistics	Yes	Yes
● SysLog	Yes	Yes
● loopback diagnostics	Yes	Yes
Product functions VLAN
Product function
● VLAN - port based	Yes	Yes
● VLAN - protocol-based	No	No
● VLAN - IP-based	No	No
● VLAN dynamic	No	No
Product functions DHCP
Product function
● DHCP client	Yes	Yes
Product functions Redundancy
Product function
● Ring redundancy	Yes	Yes
● High Speed Redundancy Protocol (HRP)	Yes	Yes
● high speed redundancy protocol (HRP) with redundancy manager	Yes	Yes
● high speed redundancy protocol (HRP) with standby redundancy	No	No
Protocol is supported Media Redundancy Protocol (MRP)	Yes	Yes
Product function
● media redundancy protocol (MRP) with redundancy manager	Yes	Yes
● redundancy procedure STP	Yes	Yes
● redundancy procedure RSTP	Yes	Yes
● redundancy procedure MSTP	No	No
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	No	No
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No
● Passive listening	Yes	Yes
Product functions Security
Product function
● IEEE 802.1x (radius)	Yes	Yes
● Broadcast/Multicast/Unicast Limiter	Yes	Yes
● broadcast blocking	Yes	Yes
Protocol is supported
● SSH	Yes	Yes
Product functions Time
Product function
● SICLOCK support	Yes	Yes
Protocol is supported
● NTP	Yes	Yes
● SNTP	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
● for hazardous zone	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T4	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T6
● for emitted interference	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)
● for interference immunity	EN 61000-6-2	EN 61000-6-2
Certificate of suitability CE marking	Yes	Yes
Certificate of suitability	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4
● C-Tick	Yes	Yes
● Railway application in accordance with EN 50155	No	No
● Railway application in accordance with EN 50124-1	No	No
● KC approval	Yes	Yes

¹⁾Preset for PROFINET mode!

²⁾Preset for Ethernet/IP mode!

Order number ¹⁾	6GK5205-3BD00-2AB2	6GK5205-3BF00-2AB2
Order number ²⁾	6GK5205-3BD00-2TB2	6GK5205-3BF00-2TB2
Product type designation	SCALANCE XB205-3	SCALANCE XB205-3LD
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	5; RJ45	5; RJ45
Number of 100 Mbit/s SC ports
● for multimode	3
● for single mode (LD)		3
Interfaces others
Number of electrical connections
● for operator console	1	1
● for management purposes	1	1
● for power supply	1	1
● for redundant voltage supply	1	1
Type of electrical connection
● for operator console	RJ11 port	RJ11 port
● for management purposes	RJ45 port	RJ45 port
● for power supply	6-pole terminal block	6-pole terminal block
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC
Supply voltage
● external	24 V	24 V
● external	19.2 ... 28.8 V	19.2 ... 28.8 V
Product component fusing at power supply input	Yes	Yes
Consumed current maximum	0.3 A	0.29 A
Permitted ambient conditions
Ambient temperature
● during operation	0 ... 60 °C	0 ... 60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %
Protection class IP	IP20	IP20
Design, dimensions and weight
Design	Box	Box
Width	80 mm	80 mm
Height	117 mm	117 mm
Depth	109 mm	109 mm
Net weight	0.35 kg	0.35 kg
Material of the enclosure	Plastic	Plastic
Mounting type
● 35 mm DIN rail mounting	Yes	Yes
● wall mounting	No	No
● S7-300 rail mounting	No	No
● S7-1500 rail mounting	No	No
Product properties, functions, components general
Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s	50	50
Cascading in cases of star topology	any (depending only on signal propagation time)	any (depending only on signal propagation time)
Product functions management, configuration
Product function
● CLI	Yes	Yes
● web-based management	Yes	Yes
● MIB support	Yes	Yes
● TRAPs via email	Yes	Yes
● Configuration with STEP 7	Yes	Yes
● RMON	Yes	Yes
● Port mirroring	Yes	Yes
● multiport mirroring	No	No
● CoS	Yes	Yes
● with IRT PROFINET IO switch	No	No
● PROFINET IO diagnosis	Yes	Yes
● switch-managed	Yes	Yes
Telegram length for Ethernet maximum	1 522 byte	1 522 byte
Protocol is supported
● Telnet	Yes	Yes
● HTTP	Yes	Yes
● HTTPS	Yes	Yes
● TFTP	Yes	Yes
● FTP	Yes	Yes
● BOOTP	No	No
● DCP	Yes	Yes
● LLDP	Yes	Yes
● EtherNet/IP	Yes	Yes
● IGMP (snooping/querier)	Yes	Yes
Identification & maintenance function
● I&M0 - device-specific information	Yes	Yes
● I&M1 – higher-level designation/location designation	Yes	Yes
Protocol is supported
● SNMP v1	Yes	Yes
● SNMP v2	Yes	Yes
● SNMP v3	Yes	Yes
Product functions Diagnosis
Product function
● Port diagnostics	Yes	Yes
● Statistics Packet Size	Yes	Yes
● Statistics packet type	Yes	Yes
● Error statistics	Yes	Yes
● SysLog	Yes	Yes
● loopback diagnostics	Yes	Yes
Product functions VLAN
Product function
● VLAN - port based	Yes	Yes
● VLAN - protocol-based	No	No
● VLAN - IP-based	No	No
● VLAN dynamic	No	No
Product functions DHCP
Product function
● DHCP client	Yes	Yes
Product functions Redundancy
Product function
● Ring redundancy	Yes	Yes
● High Speed Redundancy Protocol (HRP)	Yes	Yes
● high speed redundancy protocol (HRP) with redundancy manager	Yes	Yes
● high speed redundancy protocol (HRP) with standby redundancy	No	No
Protocol is supported Media Redundancy Protocol (MRP)	Yes	Yes
Product function
● media redundancy protocol (MRP) with redundancy manager	Yes	Yes
● redundancy procedure STP	Yes	Yes
● redundancy procedure RSTP	Yes	Yes
● redundancy procedure MSTP	No	No
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	No	No
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No
● Passive listening	Yes	Yes
Product functions Security
Product function
● IEEE 802.1x (radius)	Yes	Yes
● Broadcast/Multicast/Unicast Limiter	Yes	Yes
● broadcast blocking	Yes	Yes
Protocol is supported
● SSH	Yes	Yes
Product functions Time
Product function
● SICLOCK support	Yes	Yes
Protocol is supported
● NTP	Yes	Yes
● SNTP	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
● for hazardous zone	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T5	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T7
● for emitted interference	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)
● for interference immunity	EN 61000-6-2	EN 61000-6-2
Certificate of suitability CE marking	Yes	Yes
Certificate of suitability	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4
● C-Tick	Yes	Yes
● Railway application in accordance with EN 50155	No	No
● Railway application in accordance with EN 50124-1	No	No
● KC approval	Yes	Yes

¹⁾Preset for PROFINET mode!

²⁾Preset for Ethernet/IP mode!

Order number ¹⁾	6GK5216-0BA00-2AB2	6GK5213-3BB00-2AB2
Order number ²⁾	6GK5216-0BA00-2TB2	6GK5213-3BB00-2TB2
Product type designation	SCALANCE XB216	SCALANCE XB213-3
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	16; RJ45	13; RJ45
Number of 100 Mbit/s ST(BFOC) ports
● for multimode		3
Interfaces others
Number of electrical connections
● for operator console	1	1
● for management purposes	1	1
● for power supply	1	1
● for redundant voltage supply	1	1
Type of electrical connection
● for operator console	RJ11 port	RJ11 port
● for management purposes	RJ45 port	RJ45 port
● for power supply	6-pole terminal block	6-pole terminal block
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC
Supply voltage
● external	24 V	24 V
● external	19.2 ... 28.8 V	19.2 ... 28.8 V
Product component fusing at power supply input	Yes	Yes
Consumed current maximum	0.28 A	0.41 A
Permitted ambient conditions
Ambient temperature
● during operation	0 ... 60 °C	0 ... 60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %
Protection class IP	IP20	IP20
Design, dimensions and weight
Design	Box	Box
Width	80 mm	120 mm
Height	117 mm	117 mm
Depth	109 mm	109 mm
Net weight	0.4 kg	0.5 kg
Material of the enclosure	Plastic	Plastic
Mounting type
● 35 mm DIN rail mounting	Yes	Yes
● wall mounting	No	No
● S7-300 rail mounting	No	No
● S7-1500 rail mounting	No	No
Product properties, functions, components general
Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s	50	50
Cascading in cases of star topology	any (depending only on signal propagation time)	any (depending only on signal propagation time)
Product functions management, configuration
Product function
● CLI	Yes	Yes
● web-based management	Yes	Yes
● MIB support	Yes	Yes
● TRAPs via email	Yes	Yes
● Configuration with STEP 7	Yes	Yes
● RMON	Yes	Yes
● Port mirroring	Yes	Yes
● multiport mirroring	No	No
● CoS	Yes	Yes
● with IRT PROFINET IO switch	No	No
● PROFINET IO diagnosis	Yes	Yes
● switch-managed	Yes	Yes
Telegram length for Ethernet maximum	1 522 byte	1 522 byte
Protocol is supported
● Telnet	Yes	Yes
● HTTP	Yes	Yes
● HTTPS	Yes	Yes
● TFTP	Yes	Yes
● FTP	Yes	Yes
● BOOTP	No	No
● DCP	Yes	Yes
● LLDP	Yes	Yes
● EtherNet/IP	Yes	Yes
● IGMP (snooping/querier)	Yes	Yes
Identification & maintenance function
● I&M0 - device-specific information	Yes	Yes
● I&M1 – higher-level designation/location designation	Yes	Yes
Protocol is supported
● SNMP v1	Yes	Yes
● SNMP v2	Yes	Yes
● SNMP v3	Yes	Yes
Product functions Diagnosis
Product function
● Port diagnostics	Yes	Yes
● Statistics Packet Size	Yes	Yes
● Statistics packet type	Yes	Yes
● Error statistics	Yes	Yes
● SysLog	Yes	Yes
● loopback diagnostics	Yes	Yes
Product functions VLAN
Product function
● VLAN - port based	Yes	Yes
● VLAN - protocol-based	No	No
● VLAN - IP-based	No	No
● VLAN dynamic	No	No
Product functions DHCP
Product function
● DHCP client	Yes	Yes
Product functions Redundancy
Product function
● Ring redundancy	Yes	Yes
● High Speed Redundancy Protocol (HRP)	Yes	Yes
● high speed redundancy protocol (HRP) with redundancy manager	Yes	Yes
● high speed redundancy protocol (HRP) with standby redundancy	No	No
Protocol is supported Media Redundancy Protocol (MRP)	Yes	Yes
Product function
● media redundancy protocol (MRP) with redundancy manager	Yes	Yes
● redundancy procedure STP	Yes	Yes
● redundancy procedure RSTP	Yes	Yes
● redundancy procedure MSTP	No	No
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	No	No
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No
● Passive listening	Yes	Yes
Product functions Security
Product function
● IEEE 802.1x (radius)	Yes	Yes
● Broadcast/Multicast/Unicast Limiter	Yes	Yes
● broadcast blocking	Yes	Yes
Protocol is supported
● SSH	Yes	Yes
Product functions Time
Product function
● SICLOCK support	Yes	Yes
Protocol is supported
● NTP	Yes	Yes
● SNTP	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
● for hazardous zone	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T8	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T10
● for emitted interference	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)
● for interference immunity	EN 61000-6-2	EN 61000-6-2
Certificate of suitability CE marking	Yes	Yes
Certificate of suitability	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4
● C-Tick	Yes	Yes
● Railway application in accordance with EN 50155	No	No
● Railway application in accordance with EN 50124-1	No	No
● KC approval	Yes	Yes

¹⁾Preset for PROFINET mode!

²⁾Preset for Ethernet/IP mode!

Order number ¹⁾	6GK5213-3BD00-2AB2	6GK5213-3BF00-2AB2
Order number ²⁾	6GK5213-3BD00-2TB2	6GK5213-3BF00-2TB2
Product type designation	SCALANCE XB213-3	SCALANCE XB213-3LD
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	13; RJ45	13; RJ45
Number of 100 Mbit/s SC ports
● for multimode	3
● for single mode (LD)		3
Interfaces others
Number of electrical connections
● for operator console	1	1
● for management purposes	1	1
● for power supply	1	1
● for redundant voltage supply	1	1
Type of electrical connection
● for operator console	RJ11 port	RJ11 port
● for management purposes	RJ45 port	RJ45 port
● for power supply	6-pole terminal block	6-pole terminal block
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC
Supply voltage
● external	24 V	24 V
● external	19.2 ... 28.8 V	19.2 ... 28.8 V
Product component fusing at power supply input	Yes	Yes
Consumed current maximum	0.41 A	0.4 A
Permitted ambient conditions
Ambient temperature
● during operation	0 ... 60 °C	0 ... 60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %
Protection class IP	IP20	IP20
Design, dimensions and weight
Design	Box	Box
Width	120 mm	120 mm
Height	117 mm	117 mm
Depth	109 mm	109 mm
Net weight	0.5 kg	0.5 kg
Material of the enclosure	Plastic	Plastic
Mounting type
● 35 mm DIN rail mounting	Yes	Yes
● wall mounting	No	No
● S7-300 rail mounting	No	No
● S7-1500 rail mounting	No	No
Product properties, functions, components general
Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s	50	50
Cascading in cases of star topology	any (depending only on signal propagation time)	any (depending only on signal propagation time)
Product functions management, configuration
Product function
● CLI	Yes	Yes
● web-based management	Yes	Yes
● MIB support	Yes	Yes
● TRAPs via email	Yes	Yes
● Configuration with STEP 7	Yes	Yes
● RMON	Yes	Yes
● Port mirroring	Yes	Yes
● multiport mirroring	No	No
● CoS	Yes	Yes
● with IRT PROFINET IO switch	No	No
● PROFINET IO diagnosis	Yes	Yes
● switch-managed	Yes	Yes
Telegram length for Ethernet maximum	1 522 byte	1 522 byte
Protocol is supported
● Telnet	Yes	Yes
● HTTP	Yes	Yes
● HTTPS	Yes	Yes
● TFTP	Yes	Yes
● FTP	Yes	Yes
● BOOTP	No	No
● DCP	Yes	Yes
● LLDP	Yes	Yes
● EtherNet/IP	Yes	Yes
● IGMP (snooping/querier)	Yes	Yes
Identification & maintenance function
● I&M0 - device-specific information	Yes	Yes
● I&M1 – higher-level designation/location designation	Yes	Yes
Protocol is supported
● SNMP v1	Yes	Yes
● SNMP v2	Yes	Yes
● SNMP v3	Yes	Yes
Product functions Diagnosis
Product function
● Port diagnostics	Yes	Yes
● Statistics Packet Size	Yes	Yes
● Statistics packet type	Yes	Yes
● Error statistics	Yes	Yes
● SysLog	Yes	Yes
● loopback diagnostics	Yes	Yes
Product functions VLAN
Product function
● VLAN - port based	Yes	Yes
● VLAN - protocol-based	No	No
● VLAN - IP-based	No	No
● VLAN dynamic	No	No
Product functions DHCP
Product function
● DHCP client	Yes	Yes
Product functions Redundancy
Product function
● Ring redundancy	Yes	Yes
● High Speed Redundancy Protocol (HRP)	Yes	Yes
● high speed redundancy protocol (HRP) with redundancy manager	Yes	Yes
● high speed redundancy protocol (HRP) with standby redundancy	No	No
Protocol is supported Media Redundancy Protocol (MRP)	Yes	Yes
Product function
● media redundancy protocol (MRP) with redundancy manager	Yes	Yes
● redundancy procedure STP	Yes	Yes
● redundancy procedure RSTP	Yes	Yes
● redundancy procedure MSTP	No	No
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	No	No
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No
● Passive listening	Yes	Yes
Product functions Security
Product function
● IEEE 802.1x (radius)	Yes	Yes
● Broadcast/Multicast/Unicast Limiter	Yes	Yes
● broadcast blocking	Yes	Yes
Protocol is supported
● SSH	Yes	Yes
Product functions Time
Product function
● SICLOCK support	Yes	Yes
Protocol is supported
● NTP	Yes	Yes
● SNTP	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
● for hazardous zone	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T9	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T11
● for emitted interference	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)
● for interference immunity	EN 61000-6-2	EN 61000-6-2
Certificate of suitability CE marking	Yes	Yes
Certificate of suitability	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4
● C-Tick	Yes	Yes
● Railway application in accordance with EN 50155	No	No
● Railway application in accordance with EN 50124-1	No	No
● KC approval	Yes	Yes

¹⁾Preset for PROFINET mode!

²⁾Preset for Ethernet/IP mode!

Дальнейшая информация

Selection Tool:

To assist in selecting the right Industrial Ethernet switches as well as configuration of modular versions, the TIA Selection Tool is available at:

TIA Selection Tool:

http://www.siemens.com/tia-selection-tool

SCALANCE XB-200 managed

Информационные материалы

Область применения

Дизайн

Функции

Особенности

Технические данные

Дальнейшая информация

Selection Tool:
