  Viz-Adapter MTConnect

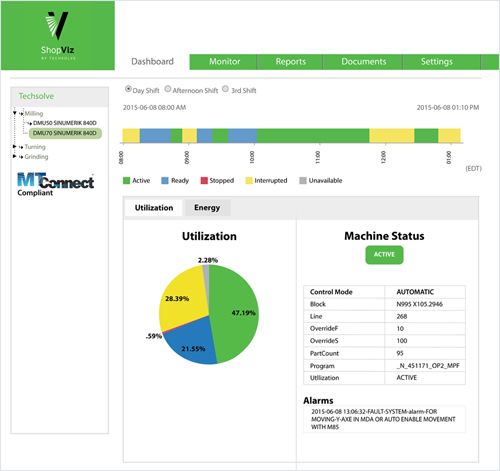

  TechSolve's VizProducts adapter software offers MTConnect support for SINUMERIK 840D sl CNCs so that information can be recorded with the open source standard of MTConnect to improve the interoperability between devices and software applications. With the adapter software, combined with tool information, users can extract the control mode, the execution status, the program name, and block, line and variable information such as messages and alarms. Customer-specific versions are available which can provide almost any SINUMERIK variable. Typical applications are machine monitoring, measuring the overall equipment efficiency (OEE), alarm tracking, and monitoring of productivity.

  Функции

  • Axes position: actual, load
  • Spindle: speed, load, speed override (%), direction, mode (INDEX or SPINDLE)
  • Feedrate: actual, controlled, override (%), rapid traverse override (%)
  • Control: status, mode, execution mode, program, block, line, number of parts, path positon, message, program comment, single block, tool ID, tool name, emergency stop
  • Status: system (displays the alarm messages of the machine)
  • Sampling rate 1/s:  higher sampling rates available as customer-specific modification

  Интеграция

  The VizProducts adapter software can be used for the following CNC:

  • SINUMERIK 840D sl:
    • with SINUMERIK NCU and SINUMERIK Operate
    • with SINUMERIK PCU and SINUMERIK Operate

  Особенности

  • Simple integration into NCU or PCU
  • Starts and runs at system boot – invisible to the operator
  • Operates with the agent software from MTConnect Institute (usually installed on the CNC). This ensures long-term compatibility and support.
  • Customer-specific versions are available to provide almost any CNC variable or additional functions and logic.

  Дальнейшая информация

  TechSolve

  6705 Steger Drive
  CINCINNATI, OH 45237
  USA

  Tel.: +1 513 948 2113

  E-mail: pieper@techsolve.org

  Internet: http://www.techsolve.org
