TM150 Terminal Module

• Заказные данные
  (1)
• Аксессуары
  (1)
• Информационные материалы

  Информационные материалы



  The TM150 Terminal Module is a DRIVE-CLiQ component for temperature evaluation. The temperature is measured in a temperature range from -99 °C to +250 °C for the following temperature sensors:

  • Pt100 (with monitoring for open-circuit and short-circuit)
  • Pt1000 (with monitoring for open-circuit and short-circuit)
  • KTY84 (with monitoring for open-circuit and short-circuit)
  • PTC (with short-circuit monitoring)
  • Bimetallic NC contact (without monitoring)

  For the temperature sensor inputs, for each terminal block the evaluation can be parameterized for 1×2-wire, 2×2-wire, 3-wire or 4-wire. There is no electrical isolation in the TM150.

  The temperature channels of a TM150 can be subdivided into 3 groups and evaluated together.

  Дизайн

  The following are located on the TM150 Terminal Module:

  • 6/12 temperature sensor inputs
  • 2 DRIVE-CLiQ sockets

  The status of the TM150 Terminal Module is indicated via a multi-color LED.

  The TM150 Terminal Module is designed to be snapped onto a TH35 mounting rail in accordance with EN 60715.

  Интеграция

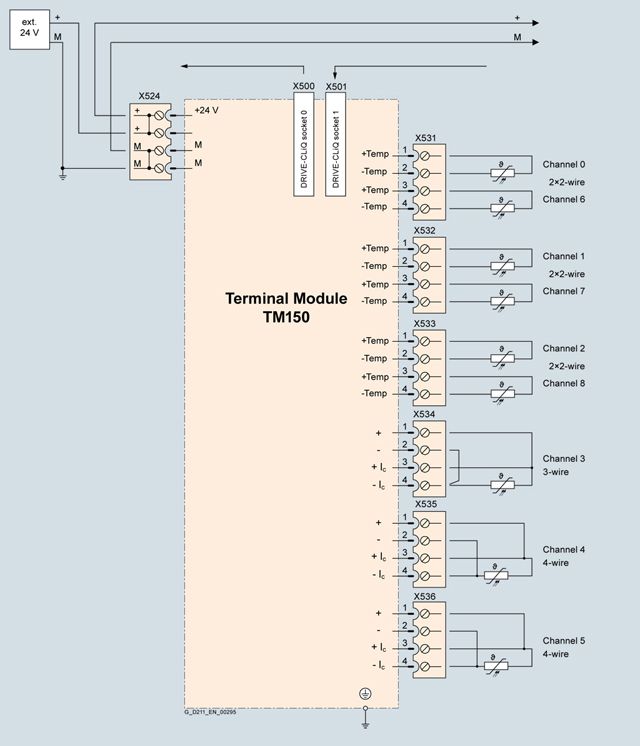

  Connection example of a TM150 Terminal Module

  Технические данные

  TM150 Terminal Module 6SL3055-0AA00-3LA0
  Current consumption, max. at 24 V DC	0.5 A
  Conductor cross-section, max.	2.5 mm2
  Fuse protection, max.	20 A
  Temperature sensor inputs The inputs can be parameterized individually for the evaluation of sensors
  Conductor cross-section, max.	1.5 mm2
  Measuring current per sensor, approx.	0.8 mA
  PE connection	M4 screw
  Dimensions
  Width	30 mm
  Height	150 mm
  Depth	119 mm
  Weight, approx.	0.41 kg
