1-phase, 24 V DC

Заказные данные
(2)

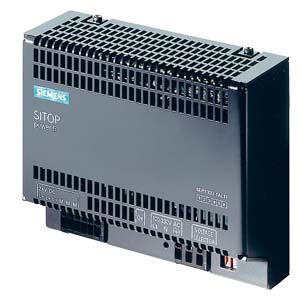

The 24 V/5 A and 10 A power supplies in a compact metal enclosure can be accommodated where only limited installation depth is available. For example, in covered machine supports or hinged frames.

Технические данные

Order number	6EP1333-1AL12	6EP1334-1AL12
Product	SITOP power	SITOP power
Power supply, type	24 V/5 A	24 V/10 A
Input
Input	1-phase AC	1-phase AC
Supply voltage
● 1 at AC Rated value	120 V	120 V
● 2 at AC Rated value	230 V	230 V
● Note	Set by means of selector switch on the device	Set by means of selector switch on the device
Input voltage
● 1 at AC	85 ... 132 V	85 ... 132 V
● 2 at AC	170 ... 264 V	170 ... 264 V
Wide-range input	No	No
Overvoltage resistance	2.3 × Vin rated, 1.3 ms	2.3 × Vin rated, 1.3 ms
Mains buffering at Iout rated, min.	20 ms; at Vin = 93/187 V	20 ms; at Vin = 93/187 V
Rated line frequency 1	50 Hz	50 Hz
Rated line frequency 2	60 Hz	60 Hz
Rated line range	47 ... 63 Hz	47 ... 63 Hz
Input current
● at rated input voltage 120 V	2.2 A	4 A
● at rated input voltage 230 V	1.2 A	2.5 A
Switch-on current limiting (+25 °C), max.	32 A	65 A
Duration of inrush current limiting at 25 °C
● maximum	3 ms	3 ms
I²t, max.	0.8 A²·s	3.3 A²·s
Built-in incoming fuse	T 3,15 A/250 V (not accessible)	T 6.3 A/250 V (not accessible)
Protection in the mains power input (IEC 898)	Recommended miniature circuit breaker: from 6 A characteristic C	Recommended miniature circuit breaker: from 10 A characteristic C
Output
Output	Controlled, isolated DC voltage	Controlled, isolated DC voltage
Rated voltage Vout DC	24 V	24 V
Total tolerance, static ±	1 %	1 %
Static mains compensation, approx.	0.1 %	0.1 %
Static load balancing, approx.	0.5 %	0.5 %
Residual ripple peak-peak, max.	150 mV	150 mV
Residual ripple peak-peak, typ.	40 mV	50 mV
Spikes peak-peak, max. (bandwidth: 20 MHz)	240 mV	240 mV
Spikes peak-peak, typ. (bandwidth: 20 MHz)	100 mV	200 mV
Adjustment range	22 ... 29 V	22 ... 29 V
Product function Output voltage adjustable	Yes	Yes
Output voltage setting	via potentiometer	via potentiometer
Status display	Green LED for 24 V OK	Green LED for 24 V OK
On/off behavior	No overshoot of Vout (soft start)	No overshoot of Vout (soft start)
Startup delay, max.	2 s	2 s
Voltage rise, typ.	40 ms	40 ms
Rated current value Iout rated	5 A	10 A
Current range	0 ... 5 A	0 ... 10 A
Supplied active power typical	120 W	240 W
Short-term overload current
● on short-circuiting during the start-up typical	20 A	35 A
● at short-circuit during operation typical	20 A	35 A
Duration of overloading capability for excess current
● on short-circuiting during the start-up	500 ms	700 ms
● at short-circuit during operation	500 ms	700 ms
Parallel switching for enhanced performance	Yes	Yes
Numbers of parallel switchable units for enhanced performance	2	2
Efficiency
Efficiency at Vout rated, Iout rated, approx.	88 %	89 %
Power loss at Vout rated, Iout rated, approx.	17 W	30 W
Closed-loop control
Dynamic mains compensation (Vin rated ±15 %), max.	0.3 %	0.3 %
Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ.	0.5 %	0.6 %
Load step setting time 50 to 100%, typ.	0.1 ms	0.1 ms
Load step setting time 100 to 50%, typ.	0.1 ms	0.2 ms
Protection and monitoring
Output overvoltage protection	Additional control loop, shutdown at approx. 33 V, automatic restart	Additional control loop, shutdown at approx. 33 V, automatic restart
Current limitation	5.5 ... 6.5 A	11 ... 13 A
Property of the output Short-circuit proof	Yes	Yes
Short-circuit protection	Electronic shutdown, automatic restart	Electronic shutdown, automatic restart
Enduring short circuit current RMS value
● maximum	5 A	10 A
Overload/short-circuit indicator	-	-
Safety
Primary/secondary isolation	Yes	Yes
Galvanic isolation	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
Protection class	Class I	Class I
Leakage current
● maximum	3.5 mA	3.5 mA
● typical	0.26 mA	0.27 mA
CE mark	Yes	Yes
UL/cUL (CSA) approval	cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259	cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
Explosion protection	-	-
FM approval	-	-
CB approval	No	No
Marine approval	-	-
Degree of protection (EN 60529)	IP20	IP20
EMC
Emitted interference	EN 55022 Class B	EN 55022 Class B
Supply harmonics limitation	-	-
Noise immunity	EN 61000-6-2	EN 61000-6-2
Operating data
Ambient temperature
● during operation	0 ... 60 °C	0 ... 60 °C
— Note	with natural convection	with natural convection
● during transport	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C
Humidity class according to EN 60721	Climate class 3K3, no condensation	Climate class 3K3, no condensation
Mechanics
Connection technology	screw-type terminals	screw-type terminals
Connections
● Supply input	L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded	L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
● Output	L+, M: 3 screw terminals each for 0.5 ... 2.5 mm²	L+, M: 3 screw terminals each for 0.5 ... 2.5 mm²
● Auxiliary	-	-
Width of the enclosure	160 mm	160 mm
Height of the enclosure	130 mm	130 mm
Depth of the enclosure	60 mm	60 mm
Required spacing
● top	50 mm	50 mm
● bottom	50 mm	50 mm
● left	0 mm	0 mm
● right	0 mm	0 mm
Weight, approx.	0.6 kg	0.72 kg
Product feature of the enclosure housing for side-by-side mounting	Yes	Yes
Installation	Snaps onto DIN rail EN 60715 35x7.5/15	Snaps onto DIN rail EN 60715 35x7.5/15
MTBF at 40 °C	1 250 000 h	1 176 471 h
Other information	Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)	Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
