RUGGEDCOM eLAN

• Информационные материалы

  Информационные материалы

  RUGGEDCOM ELAN is a modular, Linux based solution for a wide range of applications and system requirements, including:

  • Protocol conversion
  • Data concentration
  • Serial to Ethernet (TCP/IP or UDP/IP) conversion
  • Device proxy server
  • Poll acceleration
  • Multi-master support
  • Protocol routing
  • Encryption, using TLS/SSL

  Features

  • Preserves investment in legacy devices and control center applications
  • Supports both SCADA and non-SCADA hosts, such as data historians
  • Protocol conversion and routing, real-time engine with support for most commonly used protocols
  • Automated event file retrieval from major relay vendors
  • Powerful automation processing capabilities

  Product Variants

  RUGGEDCOM ELAN-FEP

  • The RUGGEDCOM ELAN Front-End Processor is packaged to address the need to manage communications from remote sites, over a range of communications media. ELAN FEPs are frequently deployed to provide capabilities not available in native front ends, such as IP network support, security, or simply as a cost effective way to add additional ports

  RUGGEDCOM ELAN-UDG

  • RUGGEDCOM ELAN UDG is the core of the ELAN application family created to address specific protocol conversion and translation issues related to RTUs, protection relays, PLCs, DFRs and other utility IEDs

  RUGGEDCOM ELAN-RIG

  • RUGGEDCOM ELAN RIG is the secure version of the ELAN UDG, providing secure TLS/SSL based encryption for communication over open networks, such as the Internet

  RUGGEDCOM ELAN-SCS

  • RUGGEDCOM ELAN SCS typically resides in the substation and has direct connection to all IEDs. It provides a single point of access over a Wide Area Network (WAN), or modem connection (dial-up or leased line). The strength of the ELAN SCS lies in its ability to support multiple, concurrent host interfaces, each getting the specific data it needs. For example, from a particular relay, SCADA data may be sent to the EMS using a SCADA protocol, a different subset of data may go to a historian, and fault files may be automatically extracted and distributed to interested users

  Функции

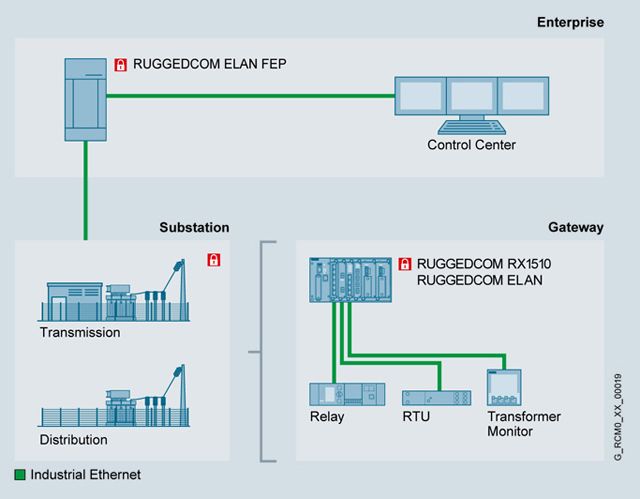

  RUGGEDCOM ELAN Front-End Processor manages communications from remote sites, over a range of communications media

  Дальнейшая информация

  To assist in selecting the right RUGGEDCOM products as well as configuration of variants, the RUGGEDCOM Selector is available at:

  http://www.siemens.com/ruggedcom-selector
