  Sensor



  Sensor 6AT8001‑1AA00‑1XA0

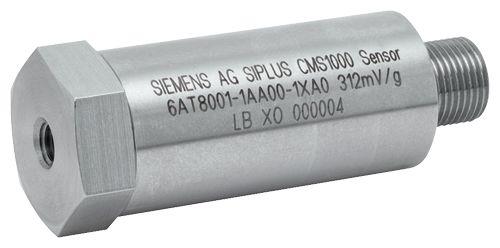

  The SIPLUS CMS1000 Sensor is designed with ground insulation. It consists of an M12 sensor cable and an M6 thread for adapting to the machine chassis.

  Technical features:

  • Industry-standard design
  • Sensor on the basis of MEMS technology (micro electro-mechanical systems)
  • Fast and easy installation (e.g. on fans, pumps and motors)
  • High IP67 degree of protection

  The sensor reliably records the vibration acceleration of rolling-contact bearings and converts this into an analog, differential voltage signal.

  Cable

  The SIPLUS CMS1000 Bearing Guard and Sensor are connected via the sensor cable. For connection of the sensor, the cable is provided with a suitably-fitting M12 connector.



  Pin assignment of M12 plug

  Adapters

  Two different adapters are available for installing the SIPLUS CMS1000 Sensor in the correct measuring position:

  • M6/M6 or M6/M8 adapter:
    for motors with a bearing monitoring connection with M6 or M8 thread
  • M6/SPM adapter
    for IEC squirrel-cage motors with option for bearing monitoring Q01/G50. To check the bearing vibration, a measuring nipple for SPM shock-pulse measurement is attached here.

  Чертеж



  Sensor 6AT8001‑1AA00‑1XA0

  Технические данные

  Order number		6AT8001-1AA00-1AA4	6AT8001-1AA00-1AB1	6AT8001-1AA00-1AB3	6AT8001-2AA10-1AM0	6AT8001-2AA10-1SA0
  		CABLE-MEMS-44-0004	CABLE-MEMS-44-0010	CABLE-MEMS-44-0030	Adaptors M6M6, M6M8	SPM Adapter
  General information
  Product brand name		SIPLUS
  Product designation		SIPLUS CMS1000 CABLE-MEMS-44-0004	SIPLUS CMS1000 CABLE-MEMS-44-0010	SIPLUS CMS1000 CABLE-MEMS-44-0030	SIPLUS CMS1000 Adapter M6/M6, M6/M8	SIPLUS CMS1000 Adapter M6/SPM
  Product description		4x 0.34 mm² PUR-cable shielded, M12 plug, open cable end			screw thread adapter for SIPLUS CMS1000 sensor mounting	SPM adapter for IEC squirrel-cage motors with the option for bearing monitoring Q01, G50
  Cables
  Cable length		4 m	10 m	30 m
  Mechanics/material
  Design of thread					M6/M6, M6/M8	M6/SPM
