  3RM13 motor starter with reversing functionality, electronic overload protection and safety-related shutdown

  Further information
  Home page see http://www.siemens.com/motorstarter/3RM1 Industry Mall see http://www.siemens.com/product?3RM1





  SIRIUS 3RM1 motor starters are compact devices 22.5 mm wide, combining a large number of functions in a single enclosure. They consist of combinations of relay contacts, power semiconductors (hybrid technology), and an electronic overload relay for switching induction motors up to 3 kW (at 400 V) and resistive loads up to 10 A (at AC voltages to 500 V) under normal operating conditions.

  The 3RM1 motor starters with overload protection with wide setting range are offered as direct-on-line starters and reversing starters and as versions with safety-related shutdown up to SIL 3/PL e.

  Article No. scheme

  Product versions		Article number
  Product function	Direct-on-line starter	3RM10	0	❑	-	❑	AA	❑	4
  	Failsafe direct starter	3RM11	0	❑		❑	AA	❑	4	with ATEX certification and safety-related shutdown
  	Reversing starter	3RM12	0	❑		❑	AA	❑	4
  	Failsafe reversing starter	3RM13	0	❑		❑	AA	❑	4	with ATEX certification and safety-related shutdown
  Wide setting range for electronic overload release	0.1 ... 0.5 A			1						for motor standard output 0 ... 0.12 kW2)
  	0.4 ... 2.0 A			2						for motor standard output 0.09 ... 0.75 kW2)
  	1.6 ... 7.0 A (10 A)1)			7						for motor standard output 0.55 ... 3 kW2)
  Connection method	Screw terminals					1
  	Spring-type terminals (push-in)					2
  	Mixed connection method:					3				Screw terminals for main circuit, spring-type terminals (push-in) for control circuit
  Rated control supply voltage Us	24 V DC							0
  	110 ... 230 V AC, 110 V DC							1





  ¹⁾ Operation of resistive loads with maximum 10 A

  ²⁾ Standard three-phase motor, basis 4-pole at 400 V AC, the actual startup characteristics of the motor as well as its rated data are important factors here.

  Note:

  The Article No. scheme shows an overview of product versions for better understanding of the logic behind the article numbers.

  For your orders please use the article numbers quoted in the selection and ordering data.

  Особенности

  Product advantages

  • Less space required in the control cabinet (20 to 80%) thanks to high functional density, which also means reduced wiring and testing
  • Greater endurance and reduced heat losses thanks to hybrid technology, see http://www.siemens.com/sirius/energysaving
  • Lower costs for stock keeping and configuration as a result of the wide setting range of the electronic overload release (up to 1:5)
  • Fast wiring without tools for rigid conductors or conductors equipped with end sleeves thanks to spring-type terminals (push-in)
  • Safety-related shutdown in accordance with SIL 3/PL e by shutting down the control supply voltage without additional devices in the main circuit
  • The motor starters can be ideally combined with 3SK safety relays for safety-related shutdown (see Safety Systems -> Safety Relays -> SIRIUS 3SK Safety Relays)
  • Motor status feedback to the higher-level control system in the case of 3RM10 and 3RM12 motor starters in the 24 V DC version
  • Virtually error-free wiring on the mains connection side and reduction in short-circuit protective devices by means of 3RM19 infeed system
  • ATEX certification of the overload protection of the 3RM1 Failsafe motor starters "Increased safety" type of protection EEx e according to ATEX directive 2014/34/EU
  • The 3RM1 motor starters can be used with highly energy-efficient IE3/IE4 motors. In this regard, please observe the information on dimensioning and configuring, see "Configuration Manual for SIRIUS Controls with IE3 Motors", https://support.industry.siemens.com/cs/ww/en/view/94770820

  Standards and approvals

  • IEC/EN 60947-4-2
  • UL 60947-4-2
  • CSA
  • ATEX
  • IEC 61508-1: SIL 3
  • ISO 13849: PL e
  • CCC approval for China

  Технические данные

  Order number			3RM10 3RM12	3RM11 3RM13
  General technical data:
  Width x Height x Depth			22.5 × 100 × 141.6
  Ambient temperature
  ● during operation		°C	-25 ... +60
  ● during storage		°C	-40 ... +70
  ● during transport		°C	-40 ... +70
  Installation altitude at height above sea level maximum		m	4 000	2 000
  Shock resistance			6g / 11 ms
  Vibration resistance			1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz
  Protection class IP			IP20
  Mounting position			vertical, horizontal, standing




  Order number			3RM1.01	3RM1.02	3RM1.07
  Main circuit:
  Operating voltage rated value maximum		V	500
  Operating frequency		Hz	50, 60
  Operating current at AC-53a at 400 V at ambient temperature 40 °C		A	0.5	2	7
  Minimum load [% of IM]		%	20
  Adjustable pick-up value current of the current-dependent overload release		A	0.1 ... 0.5	0.4 ... 2	1.6 ... 7




  Order number			3RM1.0.-.AA04	3RM1.0.-.AA14
  Control circuit:
  Type of voltage of the control supply voltage			DC	AC/DC
  Control supply voltage
  ● at DC		V	24	110
  ● at AC at 50 Hz		V	--	110 ... 230
  Control supply voltage frequency		Hz	--, --	50, 60




  Order number			3RM1.0.-1AA.4	3RM1.0.-3AA.4	3RM1.0.-2AA.4
  Connections/ Terminals:
  Type of electrical connection for main current circuit			screw-type terminals		PUSH-IN connection (spring-loaded connection)
  Type of connectable conductor cross-sections for main contacts
  ● solid			1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²)		1x (0.5 ... 4 mm²)
  ● finely stranded
  — with core end processing			1x (0,5 … 4 mm²), 2x (0,5 … 1,5 mm²)		1x (0.5 ... 2.5 mm²)
  — without core end processing			--		1x (0.5 ... 4 mm²)
  Type of electrical connection for auxiliary and control current circuit			screw-type terminals	PUSH-IN connection (spring-loaded connection)
  Type of connectable conductor cross-sections for auxiliary contacts
  ● solid			1x (0,5 ... 2,5 mm²), 2x (1,0 ... 1,5 mm²)	1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
  ● finely stranded
  — with core end processing			1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)	1x (0,5 ... 1,0 mm²), 2x (0,5 ... 1,0 mm²)
  — without core end processing			--	1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
  Type of connectable conductor cross-sections at AWG conductors
  ● for main contacts			1x (20 ... 12), 2x (20 ... 14)		1x (20 ... 12)
  ● for auxiliary contacts			1x (20 ... 14), 2x (18 ... 16)	1x (20 ... 16), 2x (20 ... 16)




  Дополнительно

  Further information
  You will find all information on configuring and dimensioning the accessories in the 3RM1 manual: https://support.industry.siemens.com/cs/ww/en/view/66295730





  Three-phase infeed system (3RM19 three-phase busbar system)

  The system permits an easy, time-saving and safe means of feeding two or more 3RM1 motor starters. It can be used only with motor starters with screw terminals and in combination with 8US1716-0RK0 adapters for mounting rails in the main circuit.

  The maximum summation current must not exceed 25 A. The primary infeed is connected via a three-phase infeed terminal.

  The busbars are available in three lengths, for two, three or five motor starters. More than five devices can be connected by clamping the connection tags of a second busbar rotated by 180°.

  The three-phase busbars are finger-safe but empty connection tags must be fitted with covers.

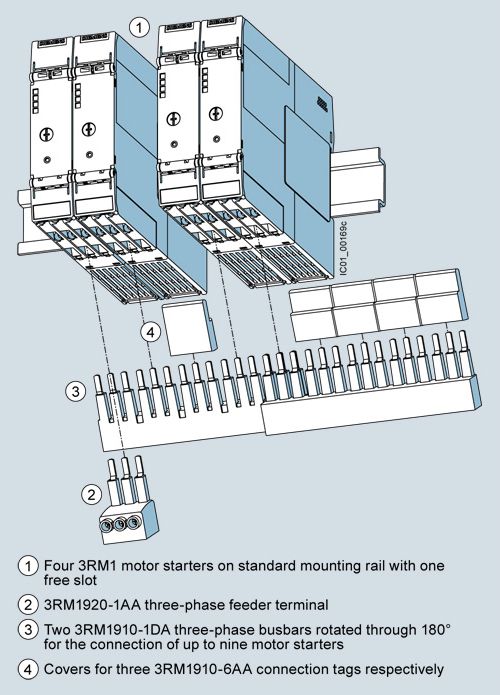

  3RM19 infeed system with three-phase infeed terminal: In the above example, two three-phase busbars (5-pole busbars) rotated through 180° allow up to nine 3RM1 motor starters to be connected. Contact with the unused connection tags in unoccupied positions is prevented safely by the covers.

  Fuse module for the use of 3RM1 motor starters on 8US busbar systems and mounting rails

  The fuse module permits the very compact construction of a load feeder with a maximum width of 22.5 mm. The 3RM1 motor starter in combination with the integrated fuses for short-circuit protection can thus be used in this way on 8US busbar systems.

  By means of different adapters, the fuse module can be used in all 60 mm busbar systems and also in compact busbar systems, as well as on mounting rails. The interface to the adapter also permits a simple and secure replacement of the load feeder.

  The fuse module can be combined with all 3RM1 motor starters. The easily replaceable fuses protect the motor starter, the connected motor and the cables.

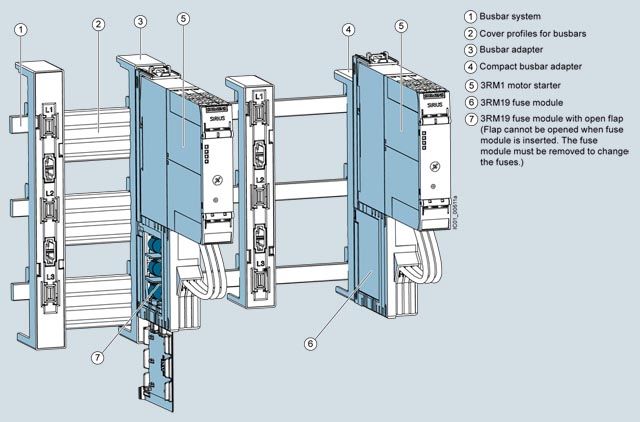

  By means of the fuse module, 3RM1 motor starters can be used in busbar systems and 8US compact busbar systems, as well as on mounting rails

  Device connectors for the control circuit

  The device connectors for 3RM1 motor starters (only 24 V DC control supply voltage) reduce the outlay for cabling by looping through the control supply voltage. The device connectors can be snapped onto a standard mounting rail or fixed to a level mounting panel using screws.

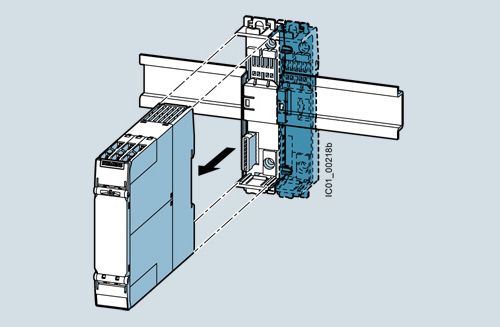

  Device connectors with 3RM1 motor starter

  Using the device connectors exclusively for feeding in the control supply voltage

  By using device connectors, a maximum of five motor starters can be supplied with 24 V DC control supply voltage. This requires the control supply voltage to be applied to the A1 and A2 terminals of only one motor starter.

  Device daisy chain connectors can be be used for gaps between two motor starters. Device termination connectors terminate a group.

  Using the device connectors for safe group shutdown

  In combination with the 3RM11 and 3RM13 Failsafe motor starters, the device connector can also be used for safety-related shutdown. For this application, groups of no more than five Failsafe motor starters can be connected using a device connector, however, the group must be terminated with a termination connector. Removing the control voltage supply from the first motor starter will safely shut down the whole group.

  Safe group shutdown can be implemented particularly easily in conjunction with 3SK safety relays. In this case, up to five motor starters can be directly connected to 3SK safety relays via the device connector and then safely shut down (see Safety Systems -> Safety Relays -> SIRIUS 3SK Safety Relays).

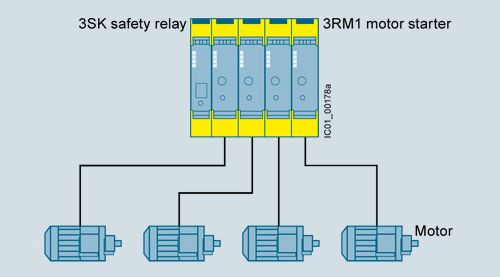

  Ideal connection: Combination of four SIRIUS 3RM1 Failsafe motor starters with SIRIUS 3SK1 safety relay
