Communication blocks

• Информационные материалы

  Информационные материалы

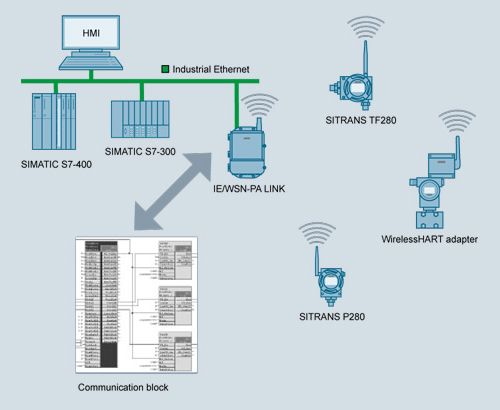

  The WirelessHART communication blocks implement the communication between S7/PCS 7 automation systems and WirelessHART field devices. They communicate over the IE/WSN-PA LINK with the help of the Modbus TCP/IP protocol. Configuration is made easy by virtue of prefabricated communication building blocks. For use with SIMATIC PCS 7 OS or SIMATIC WinCC, symbols and faceplates are included in the scope of delivery.

  Область применения

  The WirelessHART communication blocks are used wherever SIMATIC automation systems communicate with WirelessHART devices over the IE/WSN-PA LINK gateway.

  Функции

  The building blocks cyclically communicate with the IE/WSN-PA Link via Modbus TCP/IP. The process values of the WirelessHART devices as well as their status is read out and made available at the block outputs. Furthermore, selected status information of the IE/WSN-PA Link is also made available at another block. These include: Connection status, states of the WirelessHART network and other diagnostics.

  The blocks communicate cyclically over Modbus TCP/IP with the IE/WSN-PA LINK. The process values of the WirelessHART devices as well as their status is read out and made available at the block outputs. Furthermore, selected status information of the IE/WSN-PA LINK is also made available at another block. These include: Connection status, states of the WirelessHART network, and other diagnostics.

  Requirement for use of the blocks is a TCP/IP connection configured with NetPro in the engineering system. Currently, this requires CP343-1 or CP443-1.

  Конфигурация

  Blocks are planned with the usual S7 or PCS 7 planning tools CFC, KOP. FUP. Connection planning is done in NetPro. A configuration example for configuring the IE/WSN-PA LINK allows for easy assignment of the WirelessHART devices to the configured communication blocks.

  Особенности

  Through its prepared blocks, the installed library offers an easy way of integrating WirelessHART devices into the SIMATIC automation world.

  Simple configuration made possible by:

  • Prepared blocks for IE/WSN-PA LINK and WirelessHART devices
  • SIMATIC PCS 7 OS or SIMATIC WinCC symbols and faceplates included
  • Configuration aid for IE/WSN-PA LINK, corresponding to the blocks
  • Output of quality codes for respective process values
  • Evaluation of the IE/WSN-PA LINK diagnostic information

  Дальнейшая информация

  You can obtain function blocks and technical support for integrating the IE/WSN-PA LINK in PCS 7 at the following address:

  Siemens AG
  Industry Sector
  Industry Solutions Division
  Industrial Technologies
  Roland Heid
  Siemensallee 84
  76187 Karlsruhe
  Germany
  Tel: +49 721 595-6380
  E-mail: function.blocks.industry@siemens.com
