  • Каталог оборудования Siemens

IE/WSN-PA Link

  • Заказные данные
    (2)
  • Аксессуары
    (10)
  • Информационные материалы

    Информационные материалы

    • The IE/WSN-PA LINK is a network transition for the connection of WirelessHART field devices (HART V7.1) to Industrial Ethernet, as an alternative or supplement to the wired connection.
    • Connection of up to 100 WirelessHART devices
    • Approved for operation in hazardous areas in Zone 2
    • Open TCP/IP communication and Modbus TCP via the Ethernet interface
    • Can be used with HART-OPC servers of the HART Communication Foundation

    Note:
    A general introduction to WirelessHART and information on the WirelessHART adapter and the WirelessHART field devices can be found in Catalog FI 01 or on the Internet at http://www.siemens.com/wirelesshart

    Область применения

    The IE/WSN-PA LINK connects wireless HART field devices by radio to the Ethernet. On the radio side, the IE/WSN-PA LINK supports the WirelessHART standard and on the Ethernet side the TCP/IP and Modbus TCP communication.

    The IE/WSN-PA LINK thus enables wireless diagnostics, maintenance and process monitoring.

    Monitoring

    WirelessHART is particularly suitable for use in plant sections that are to be included in monitoring, but which do not have any existing MSR cabling, e.g. external tank stores or other installations where high cabling costs are anticipated. Data for the visualization can be retrieved from the IE/WSN-PA link via Industrial Ethernet or Modbus TCP.

    Monitoring of process states via WirelessHART

    Retrofitting for diagnostics and maintenance

    For this application, wireless adapters are looped into the 4-20 mA interface or screwed directly onto the HART device. The acyclic HART message frames are transmitted by radio between IE/WSN-PA LINK and a wireless adapter. Without affecting the operation of the plant, the wireless adapter modulates the acyclic HART message frames to the 4-20 mA interface or extracts them from the 4-20 mA interface.

    The IE/WSN-PA LINK collects the data of all wireless adapters and transfers it via Industrial Ethernet to the diagnostics and maintenance station.

    If greater distances between the IE/WSN-PA LINK and the monitoring station are to be spanned without cabling, this can be implemented by means of Industrial Wireless LAN with the access points and client modules of the SCALANCE W family.

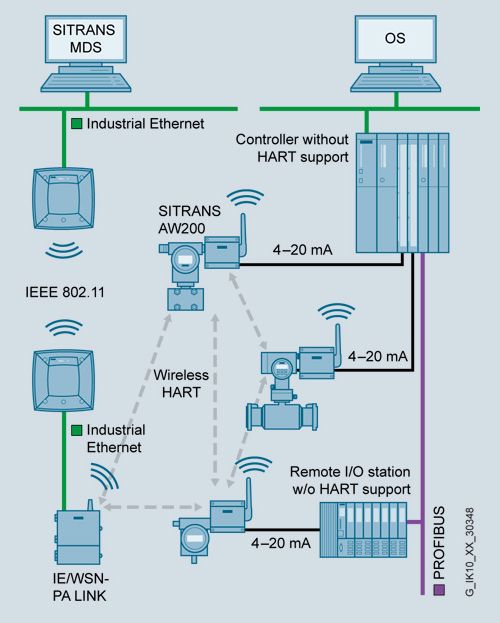

    Retrofitting of plants for diagnostics and maintenance

    Дизайн

    • 2 x 10/100/1000 Mbit/s RJ45 ports, electrical (no integral switch; interfaces can be used, for example, for continuous connection to the plant network as well as the temporary connection of a PC)
    • 1 x screw terminal for connection to Modbus RTU via RS485
    • 1 x screw terminal for the 24 V DC connection
    • Rugged metal enclosure with IP65 protection for use outdoors, also in hazardous zone 2
    • Mounting: wall or mast mounting (vertical);
      U-bolts for mast mounting are included in the scope of delivery.

    Product versions

    • With integral, non-detachable antenna
    • Redundancy function and with N connector for connection of an external antenna

    Функции

    WirelessHART

    The IE/WSN-PA LINK establishes on the radio side an intermeshed wireless sensor network for communication with wireless field devices (e.g. transmitters). The data from the wireless field devices is received by the IE/WSN-PA LINK and transmitted via Industrial Ethernet to the connected systems. The supported wireless network is an open wireless network specified by the HART Communication Foundation (HCF) in accordance with the WirelessHART (HART V7.1) standard.

    On the field device side, the IE/WSN-PA LINK requires field devices that support WirelessHART (HART). Existing field devices can be integrated by means of wireless adapters into the WirelessHART communication. To this end, the adapters are looped into the 4-20 mA interface. In addition, as many as four standard HART field devices with external power supply can be connected to the adapter in multidrop mode. Individually connected devices can be operated with the battery of the adapter.

    The adapter wirelessly transmits all data and process values of the connected devices. The advantage of this solution is that tried and tested devices can continue to be used.

    Industrial Ethernet

    Via the Ethernet interface the IE/WSN-PA LINK supports the use of the HART OPC server and the Modbus TCP protocol.

    Configuration

    The configuration is web-based, without additional software, and performed from the PC. By means of the web user interface it is also possible to display the device states and measured values of the WirelessHART devices.

    Increased availability of WirelessHART application due to redundancy mode

    For increased availability requirements, the link can be used redundantly. The redundancy function is only available for the device variant with a connection for an external antenna.

    Two links are connected to the same Ethernet subnet via a switch to provide the redundancy. The two links are connected to each other via an Ethernet cable (management coupling). One of the two links is configured as the active device. It carries out the communication between the control center and the WirelessHART wireless network under normal conditions. The second link is configured identically. It is used as a standby device. In a redundancy scenario, the standby device becomes the active device.

    WirelessHART network operated with a redundant gateway

    Интеграция

    Integration into automation systems

    The IE/WSN-PA LINK can be integrated into automation systems via Ethernet or Modbus TCP. Communication modules (CP 343-1 or CP 443-1) are required to connect the IE/WSN-PA LINK to SIMATIC S7-300/400. Function blocks and technical support can be found at:

    http://www.siemens.com/simatic-net/ik-info

    Integration in PCS 7

    For integration of the IE/WSN-PA LINK into PCS 7 you can obtain function blocks and technical support at:

    http://www.siemens.com/simatic-net/ik-info

    Особенности

    • Extended possible solutions for connecting process industry field devices by means of alternative or supplementary WirelessHART communication
    • Reliable data transmission using intermeshed network technology; the self-organizing network with alternative paths enables radio obstacles to be bypassed
    • Reduction of cabling costs under difficult installation conditions, e.g. if the field devices are located on inaccessible plant components or are only required temporarily
    • To improve process monitoring and for maintenance tasks, sensors can be retrofitted
    • Existing transmitters can be integrated wirelessly into maintenance and diagnostics systems by means of WirelessHART adapters
    • Without additional software, restricted monitoring is possible via web services and the integrated web server of the IE/WSN-PA LINK.

    Технические данные

    Order number

    6GK1411-6CA40-0AA0

    6GK1411-6CA40-0BA0

    Product type designation

    IE/WSN-PA LINK

    IE/WSN-PA LINK

    Transmission rate





    Transfer rate





    • at the 1st interface

    10 ... 100 Mbit/s

    10 ... 100 Mbit/s

    • at the 2nd interface

    10 ... 100 Mbit/s

    10 ... 100 Mbit/s

    • at interface 3

    9.6 ... 57.6 kbit/s

    9.6 ... 57.6 kbit/s

    Interfaces





    Number of electrical connections





    • at the 1st interface acc. to Industrial Ethernet

    1

    1

    • at the 2nd interface acc. to Industrial Ethernet

    1

    1

    • at interface 3 acc. to RS 485

    1

    1

    • for power supply

    1

    1

    Type of electrical connection





    • at the 1st interface acc. to Industrial Ethernet

    RJ45 port

    RJ45 port

    • at the 2nd interface acc. to Industrial Ethernet

    RJ45 port

    RJ45 port

    • at interface 3 acc. to RS 485

    2-pole terminal strip

    2-pole terminal strip

    • for power supply

    3-pole terminal strip

    3-pole terminal strip

    Interfaces wireless





    Number of radio cards permanently installed

    1

    1

    Number of internal antennas

    1

    0

    Number of electrical connections for external antenna(s)

    0

    1

    Type of electrical connection for external antenna(s)

    -

    N-Connector

    Supply voltage, current consumption, power loss





    Type of voltage supply

    DC

    DC

    Supply voltage external

    24 V

    24 V

    Supply voltage external

    20 ... 28 V

    20 ... 28 V

    Type of voltage of the supply voltage

    DC

    DC

    Consumed current from external supply voltage at DC at 24 V maximum

    0.5 A

    0.5 A

    Power loss [W] maximum

    12 W

    12 W

    Permitted ambient conditions





    Ambient temperature





    • during operation

    -40 ... +70 °C

    -40 ... +70 °C

    • during storage

    -40 ... +85 °C

    -40 ... +85 °C

    • during transport

    -40 ... +85 °C

    -40 ... +85 °C

    Relative humidity at 25 °C without condensation during operation maximum

    90 %

    90 %

    Protection class IP

    IP 65

    IP 65

    Design, dimensions and weight





    Width of the enclosure

    229 mm

    229 mm

    Height of the enclosure





    • without antenna

    306 mm

    306 mm

    • with antenna

    354 mm

    354 mm

    Depth of the enclosure

    89 mm

    89 mm

    Net weight

    4.54 kg

    4.54 kg

    Mounting type

    Material for mast mounting included in scope of delivery

    Material for mast mounting included in scope of delivery

    • wall mounting

    Yes

    Yes

    • mast mounting

    Yes

    Yes

    Wireless frequencies





    Operating frequency for WirelessHART in 2.4 GHz frequency band

    2.4 ... 2.5 GHz

    2.4 ... 2.5 GHz

    Performance data WirelessHART





    Number of WirelessHART devices usable

    100

    100

    Network latency





    • at 100 field devices for WirelessHART network maximum

    10 s

    10 s

    • for 50 field devices for WirelessHART network maximum

    5 s

    5 s

    Transmission link between two devices for WirelessHART network maximum

    100 m

    100 m

    • Note

    Values may vary in the case of radio obstacles

    Values may vary in the case of radio obstacles

    Protocol is supported HART protocol

    Yes

    Yes

    Product properties, functions, components general





    Protocol is supported





    • Address Resolution Protocol (ARP)

    Yes

    Yes

    • HTTP

    Yes

    Yes

    • HTTPS

    Yes

    Yes

    • Modbus TCP

    Yes

    Yes

    • Modbus TCP secure

    Yes

    Yes

    • Modbus RTU

    Yes

    Yes

    Product functions management, configuration





    Product function





    • web-based management

    Yes

    Yes

    • DHCP client

    Yes

    Yes

    Product functions Diagnosis





    Product function





    • Web-based diagnostics

    Yes

    Yes

    • WirelessHART diagnostics via Modbus

    Yes

    Yes

    Product functions Redundancy





    Product function Device redundancy

    No

    Yes

    Product functions Security





    Product function





    • Password protection - multi-level

    Yes

    Yes

    • WirelessHART Join Key

    Yes

    Yes

    • ACL - MAC-based

    Yes

    Yes

    • WirelessHART Network ID

    Yes

    Yes

    Protocol is supported SSL

    Yes

    Yes

    Principle of encryption

    AES 128 bit

    AES 128 bit

    Product functions Time





    Protocol is supported NTP

    Yes

    Yes

    Standards, specifications, approvals





    Standard for WirelessHART

    HART V 7.1

    HART V 7.1

    Standard for wireless communication IEEE 802.15.4

    Yes

    Yes

    Certificate of suitability





    • CE marking

    Yes

    Yes

    • relating to CSA

    CSA Division 2 & Dust Ignition-proof for Class I, Division 2, Groups A, B, C, and D. Dust Ignition-proof for Class II, Groups E, F, and G / Suitable for Class III Hazardous Locations. / Install per Siemens drawing A5E02467236A. Temperature Code: T4 (-40°C < Ta < 60°C) CSA Enclosure Type 4X

    CSA Division 2 & Dust Ignition-proof for Class I, Division 2, Groups A, B, C, and D. Dust Ignition-proof for Class II, Groups E, F, and G / Suitable for Class III Hazardous Locations. / Install per Siemens drawing A5E02467236A. Temperature Code: T4 (-40°C < Ta < 60°C) CSA Enclosure Type 4X

    • relating to FM

    FM Division 2, Non-Incendive for Class I, Division 2, Groups A, B, C, and D. Dust Ignition-proof for Class II, III, Division 1, Groups E, F, and G / Indoor and outdoor locations / NEMA Type 4X Temperature Code: T4 (-40°C < Ta < 60°C)

    FM Division 2, Non-Incendive for Class I, Division 2, Groups A, B, C, and D. Dust Ignition-proof for Class II, III, Division 1, Groups E, F, and G / Indoor and outdoor locations / NEMA Type 4X Temperature Code: T4 (-40°C < Ta < 60°C)

    • relating to ATEX

    ATEX type n, see note: Certificate number: Baseefa10ATEX0044X, ATEX marking: Ex II 3 G, Ex nA nL IIC T4 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V, ATEX dust ignition-proof: Certificate number: Baseefa10ATEX0045X, ATEX marking: II 3 D, Ex tD A22 IP66 T135 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V. Note on type n: Conditions for safe handling during installation. The device does not pass the 500 V insulation test in accordance with paragraph 6.8.1 of EN 60079-15:2005. This must be taken into account when the device is mounted.

    ATEX type n, see note: Certificate number: Baseefa10ATEX0044X, ATEX marking: Ex II 3 G, Ex nA nL IIC T4 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V, ATEX dust ignition-proof: Certificate number: Baseefa10ATEX0045X, ATEX marking: II 3 D, Ex tD A22 IP66 T135 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V. Note on type n: Conditions for safe handling during installation. The device does not pass the 500 V insulation test in accordance with paragraph 6.8.1 of EN 60079-15:2005. This must be taken into account when the device is mounted.

    • relating to IECEx

    IECEx Type n, see note: Certificate number: IECEx BAS 10.0014X, Ex nA nL IIC T4 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V, ATEX dust ignition-proof, see note: Certificate number: IECEx BAS 10.0015X, Ex tD A22 IP66 T135 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V. Note on type n: Conditions for safe handling during installation. The device does not pass the 500 V insulation test in accordance with paragraph 6.8.1 of EN 60079-15:2005. This must be taken into account when the device is mounted.

    IECEx Type n, see note: Certificate number: IECEx BAS 10.0014X, Ex nA nL IIC T4 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V, ATEX dust ignition-proof, see note: Certificate number: IECEx BAS 10.0015X, Ex tD A22 IP66 T135 (-40 °C <= Ta <= 60 °C), rated voltage: 28 V. Note on type n: Conditions for safe handling during installation. The device does not pass the 500 V insulation test in accordance with paragraph 6.8.1 of EN 60079-15:2005. This must be taken into account when the device is mounted.

    Wireless approval

    FCC and IC approval

    IC approval


    Дальнейшая информация

    Current approvals can be found on the Internet at:

    http://support.automation.siemens.com/WW/view/en/46374734
